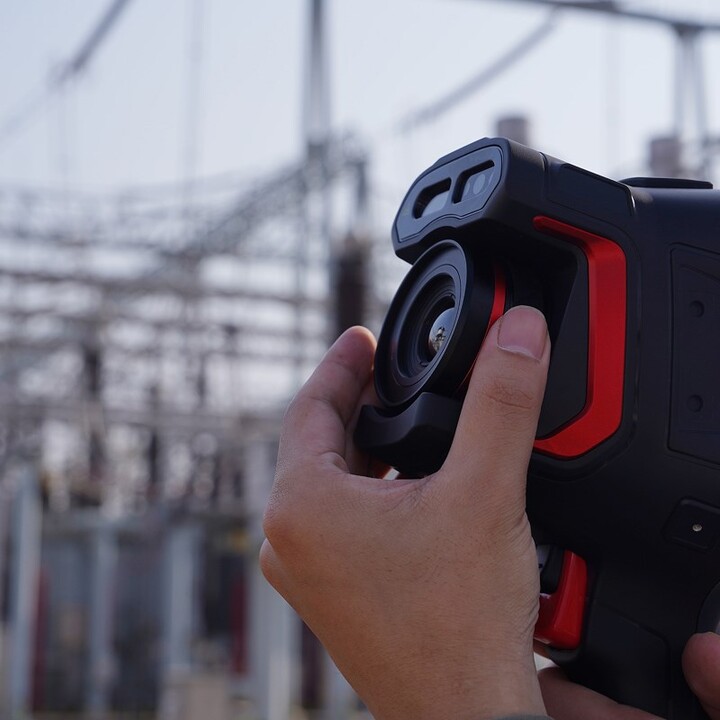

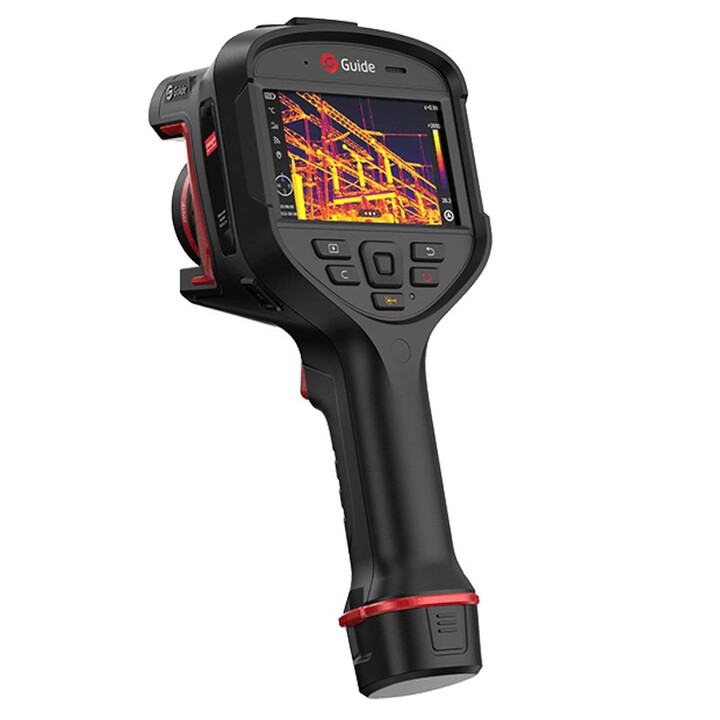

Guide Sensmart H4 Vanadium Oxide Uncooled Focal Plane Arrays Thermal Camera Black 800 x 480 Pixels Built-in LCD Screen
Reference:
H4
EAN:
6970883551170
Condition:
New
Price:
€3,449.37
VAT included
Without tax:
€2,804.37
The Guide Sensmart H4 is a high-performance thermal camera featuring Vanadium Oxide uncooled focal plane arrays with a sensor resolution of 800 x 480 pixels. It includes a built-in 4.3" LCD touchscreen, Wi-Fi, Bluetooth 5.0, and USB connectivity. Designed with a durable metal housing and IP54 protection, it offers precise temperature measurements from -40 to 650 °C and a 4-hour lithium-ion battery life, ideal for professional thermal imaging needs.
Packaging
Packaging type
Box
Design
Product color
black
Screen diagonal
10.9 cm (4.3")
Housing material
Metal
Built-in screen
Yeah
IP Code (International Protection)
IP54
Touch screen
Yeah
Display type
LCD
Drop test
200 cm
Weight and dimensions
Height
125 mm
Broad
292 mm
Weight
1.2 kg
Depth
125 mm
Characteristics
Wi-Fi
Yeah
Bluetooth
Yeah
Bluetooth version
5.0
Maximum memory card size
64 GB
Ports and Interfaces
USB port
Yeah
Battery
Autonomy
4 hours
Battery technology
Lithium ion
Performance
Internal storage capacity
64 GB
Temperature measurement range
-40 - 650 °C
Precision
2 °C
Infrared spectral band
7.5 - 14 µm
Horizontal field of view
25°
Maximum resolution
480 x 360 pixels
Integrated laser pointer
Yeah
Frame rate
30 Hz
Thermal sensitivity (NETD)
30 mK
Vertical field of view
19°
Sensor type (thermal module)
Vanadium oxide uncooled focal plane arrays
Package contents
User manual
Yeah
Cables included
USB Type-C to USB Type-C
Wrist strap included
Yeah
Battery charger
Yeah
Number of batteries included
2 pieces
Technical details
Warranty period
2 year(s)
Optical module
Built-in camera
Yeah
Horizontal field of view (optical module)
25°
Vertical field of view (optical module)
19°
Lens system
Sensor resolution (thermal module)
800 x 480 pixels
Focus modes
Autofocus, Continuous autofocus, Manual focus, Touch autofocus
Closest focusing distance
0.15 m
-
Brand
-
ReferenceH4
-
In stock6 Items
-
ConditionNew
-
EAN136970883551170
-
MPNH4
-
ColourBlack
