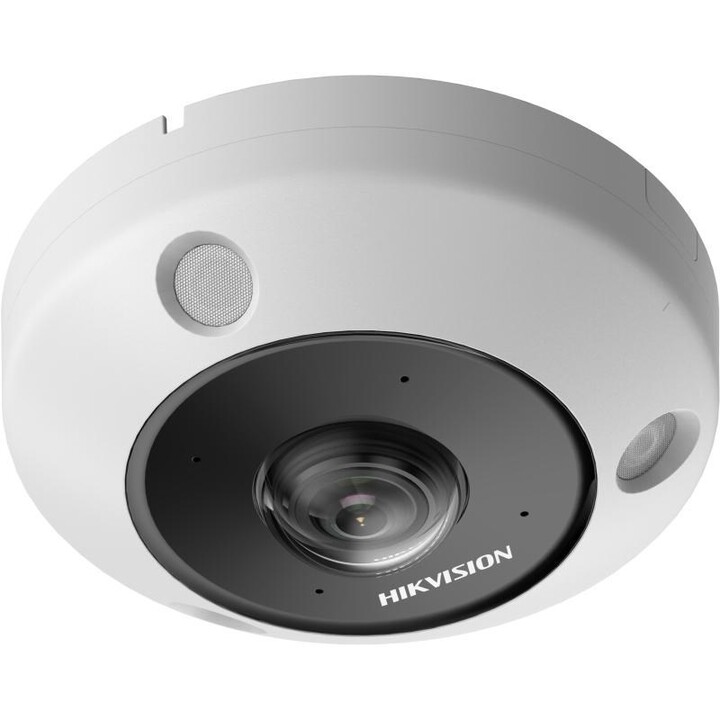

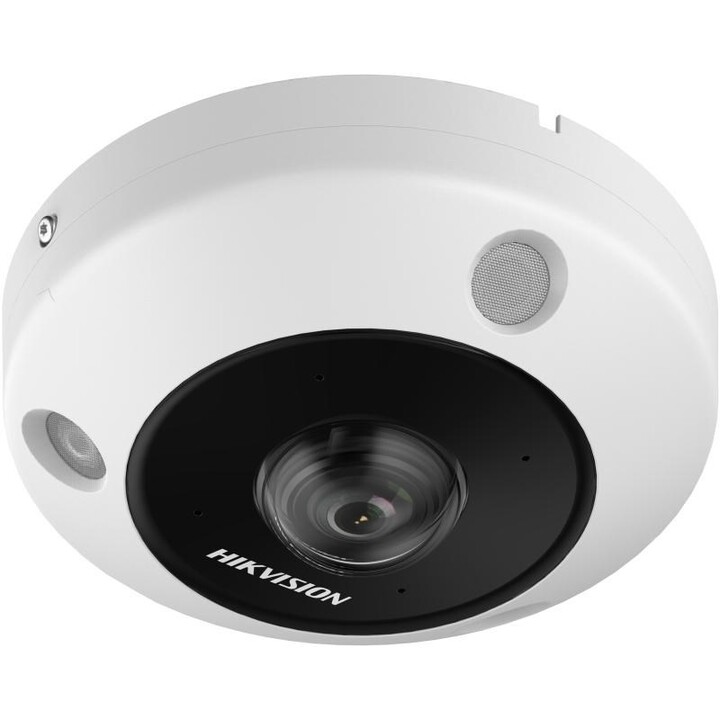

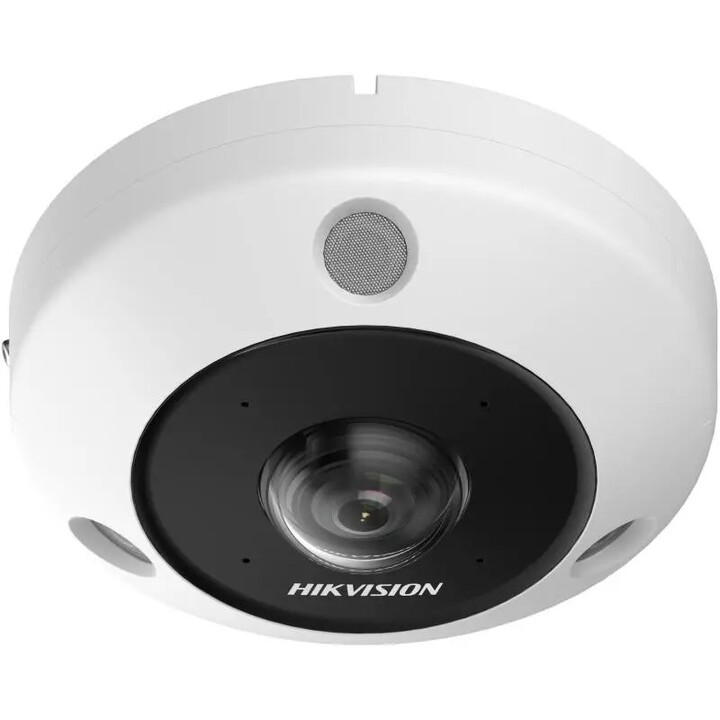

Hikvision DS-2CD63C5G1-IVS (1.29mm) Pad Mount Indoor/Outdoor IP Security Camera 3504 x 3504 Pixels Ceiling Mount
Reference:
100458882
EAN:
6942160433066
Condition:
New
Price:
€1,340.96
VAT included
Without tax:
€1,108.24
The Hikvision DS-2CD63C5G1-IVS is a high-resolution IP security camera featuring a 1.29mm fixed lens with a 180° viewing angle for comprehensive coverage. Designed for indoor and outdoor use, it supports advanced video compression formats, night vision up to 15 meters, and intelligent video surveillance features like people counting and motion detection. With robust security protocols, PoE power supply, and a durable metal housing rated IP67 and IK10, this ceiling-mount camera ensures reliable, high-quality surveillance.
Performance
Certification
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Wide Dynamic Range (WDR)
Yeah
Number of languages
33
Supported placement
Interior and exterior
Day/Night Mode
Yeah
Entry/Exit Alarm
Yeah
PTZ Control
Yeah
Supported languages
Multi
Infrared cut filter
Yeah
Connectivity technology
Wired
Guy
IP security camera
Lens system
Observation distance
11.1 m
Detection distance
27.9 m
Recognition distance
5.6 m
Fixed focal length
1.29 mm
Number of lenses
1
Maximum opening
2.2
Identification distance
2.8 m
Video
Video compression formats
H.265, M-JPEG, H.264+, H.265+, H.264
Coding of regions of interest (ROI)
Yeah
Noise reduction
Yeah
Gain control type
Car
Supported graphic formats
1600 x 1280, 2048 x 2048, 640 x 480 (VGA), 720 x 720, 2048 x 1536 (QXGA), 320 x 240, 2560 x 2560, 3072 x 2304
Frame rate
30 pps
Maximum resolution
3504 x 3504 Pixels
Digital Wide Dynamic Range (DWDR)
Yeah
Privacy mask
Yeah
Smart IR
Yeah
Backlight compensation (BLC)
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
32 Kbps - 16 Mbps
High Beam Compensation (HLC)
Yeah
Total megapixels
12 MP
Noise reduction technology
3D Noise Reduction
Image quality adjustment
Sharpness, Brightness, Saturation, Contrast
Night vision
Night vision distance
15 m
Infrared wavelength
850 nm
Night vision
Yeah
LED type
GO
IP address filter
Yeah
Features of the intelligent video surveillance system (IVS)
People count, Scene changes, Blur
HTTPS encryption
Yeah
Active tamper alarm
Yeah
Digital watermark
Yeah
Alarm input channels
2
Alert notification type
Email
Alarm output channels
2
Motion sensor
Yeah
Summary Authentication
Yeah
Flash log
Yeah
Password reset via email
Yeah
Beat
Yeah
Network Attached Storage (NAS)
Yeah
Supported security algorithms
EAP-PEAP, EAP-TLS, EAP-MD5, TLS
Password protection
Yeah
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Progressive scanning
Yeah
Sensor type
CMOS
Connection
Quality of Service (QoS) support
Yeah
Ethernet interface type
Fast Ethernet
User access level
Administrator, Operator, User
Live view
Yeah
Number of users
32 user(s)
Number of simultaneous live viewing channels
20 channels
Network standards
IEEE 802.3af
Ethernet
Yeah
Wifi
No
Bluetooth
No
Audio
Audio input channels
1.0 channels
Audio codecs
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Sampling frequencies
8 - 48 kHz
Bit transfer rate range
8 - 320 Kbit/s
Audio output channels
1.0 channels
Built-in speakers
Yeah
Built-in microphone
Yeah
Energy control
Power consumption (Power over Ethernet, PoE)
12.5 W
DC output voltage
12
DC output amperage
1 A
Feeding
DC
Energy consumption (max)
11.5 W
Management features
Web browser
Yeah
Restore button
Yeah
Storage media
Flash Memory
2048 MB
Maximum memory card size
256 GB
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Integrated card reader
Yeah
Internal memory
800 MB
Camera
Lens viewing angle, vertical
180°
Minimum lighting
0 lx
Lens viewing angle, horizontal
180°
Shutter speed
1 - 1/100000 s
Design
IK code
IK10
Form factor
Pad
Housing material
Metal
Mounting type
Ceiling
Product color
White
IP Code (International Protection)
IP67
Package contents
Number of cameras
1
Ports and Interfaces
RS-485 Ports
1
Environmental conditions
Relative humidity range during storage
0 - 95%
Storage temperature range
-40 - 60 °C
Relative humidity range for operation
0 - 95%
Operating temperature range
-40 - 60 °C
Weight and dimensions
Height
59.4 mm
Weight
715 g
Diameter
14 cm
Packaging
Package weight
1.21 kg
Package width
260 mm
Package depth
230 mm
Package height
135 mm
-
