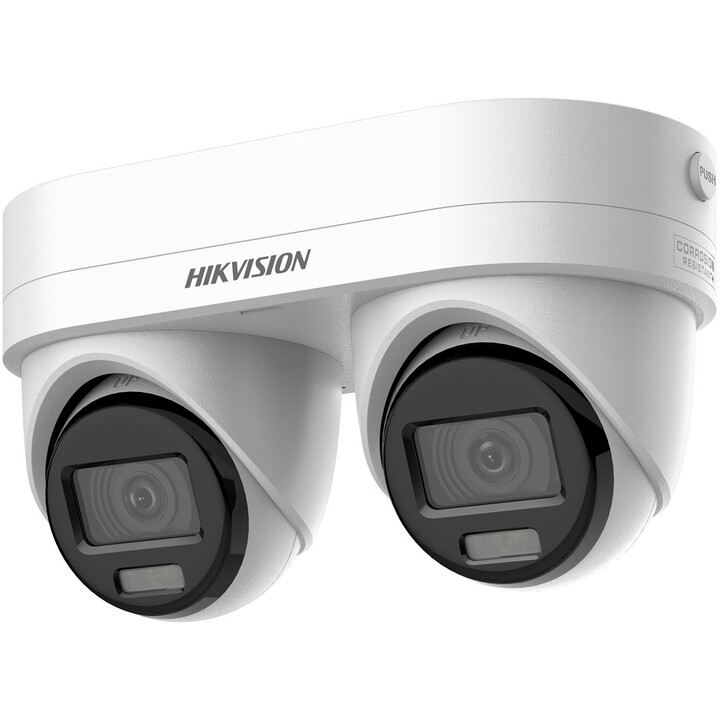

Hikvision DS-2CD2346G3D-IZ2UY/SL(2.8/4MM) Surveillance Camera Turret Indoor IP Security Camera 2688 x 1520 Pixels Ceiling Mount
Reference:
21056798000
EAN:
6936422160272
Condition:
New
Price:
€494.78
VAT included
Without tax:
€408.91
The Hikvision DS-2CD2346G3D-IZ2UY/SL is a high-performance indoor turret IP security camera featuring a 4 MP CMOS sensor with 2688 x 1520 resolution. It offers advanced video technologies including WDR, 3D noise reduction, and H.265+ compression. Equipped with infrared night vision up to 30 meters and a versatile 2.8-4.8 mm lens, this camera supports wired connectivity, multiple security features, and audio capabilities with built-in microphone and speakers.
Performance
Certification
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006, NEMA 4X (NEMA 250-2018)
Infrared cut filter
Yeah
Guy
IP security camera
Day/Night Mode
Yeah
Wide Dynamic Range (WDR)
Yeah
Number of languages
33
Supported languages
Multi
Supported placement
Inside
Connectivity technology
Wired
Camera
Minimum lighting
0 lx
Lens viewing angle, horizontal
99.3, 80 Ω
Lens viewing angle, vertical
52.9, 44.1 Ω
Lens viewing angle, diagonal
120.2, 94 Ω
Number of privacy masking zones
8
Rotation angle
360 Ω
Angle of inclination
0 - 75 Ω
Shutter speed
1/3 - 1/100000 s
Tray reach
0 - 360 Ω
Video
High Beam Compensation (HLC)
Yeah
Backlight compensation (BLC)
Yeah
Supported graphic formats
1280 x 720 (HD 720), 768 x 432, 1920 x 1080 (HD 1080), 640 x 360
Video broadcast
Yeah
Total megapixels
4 MP
Coding of regions of interest (ROI)
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video compression formats
H.265, M-JPEG, H.265+, H.264, H.264+
Bit rate
32 Kbps - 16 Mbps
Frame rate
30 pps
Noise reduction
Yeah
Gain control type
Car
Maximum resolution
2688 x 1520 Pixels
Noise reduction technology
3D Noise Reduction
Security
IP address filter
Yeah
Alert notification type
Email
HTTPS encryption
Yeah
Password protection
Yeah
Audit log
Yeah
Password reset via email
Yeah
Beat
Yeah
Flash log
Yeah
Pixel counter
Yeah
Mirror
Yeah
Motion sensor
Yeah
Features of the intelligent video surveillance system (IVS)
Zone entry detection, Region exiting detection, Intrusion, Line crossing detection, People detection
Supported security algorithms
TLS
Summary Authentication
Yeah
Audio
Sampling frequencies
8 - 48 kHz
Signal-to-noise ratio (SNR)
52 dB
Audio codecs
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Built-in microphone
Yeah
Built-in speakers
Yeah
Connection
User access level
Administrator, Operator, User
Live view
Yeah
Ethernet
Yeah
Ethernet interface type
Fast Ethernet
Number of simultaneous live viewing channels
6 channels
Network standards
IEEE 802.3at
Number of users
32 user(s)
Packaging
Package height
165 mm
Package width
305 mm
Package weight
1.57 kg
Package depth
162 mm
Environmental conditions
Operating temperature range
-30 - 60 °C
Storage temperature range
-30 - 60 °C
Relative humidity range during storage
0 - 95%
Relative humidity range for operation
0 - 95%
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 3 mm (1 / 3")
Number of sensors
1
Progressive scanning
Yeah
Weight and dimensions
Depth
120.1 mm
Height
97.2 mm
Weight
1.2 kg
Broad
199.9 mm
Storage media
Compatible memory cards
MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Integrated card reader
Yeah
Maximum memory card size
512 GB
Energy control
Energy consumption (max)
17 W
Feeding
DC
Power consumption (Power over Ethernet, PoE)
18 W
DC output amperage
1.42 A
DC output voltage
12
Night vision
Infrared wavelength
850 nm
Night vision
Yeah
Night vision distance
30 m
LED type
GO
Lens system
Number of lenses
2
Maximum opening
1.6
Focal length interval
2.8, 4.8 mm
Design
Housing material
Metal
Mounting type
Ceiling/wall
Form factor
Turret
Product color
White
Management features
Web browser
Yeah
Restore button
Yeah
Package contents
Number of cameras
2
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
-
Brand
-
Reference21056798000
-
In stock10 Items
-
ConditionNew
-
EAN136936422160272
-
MPN21056798000
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
