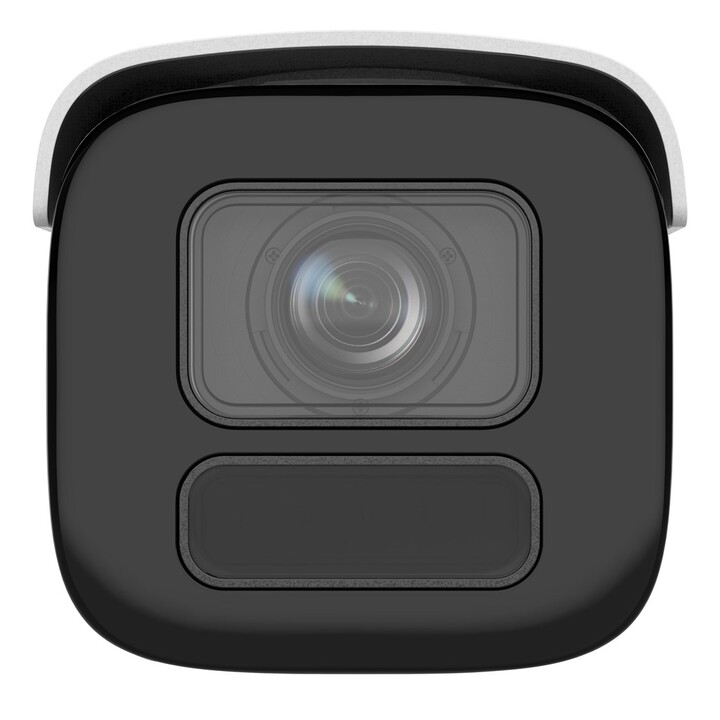

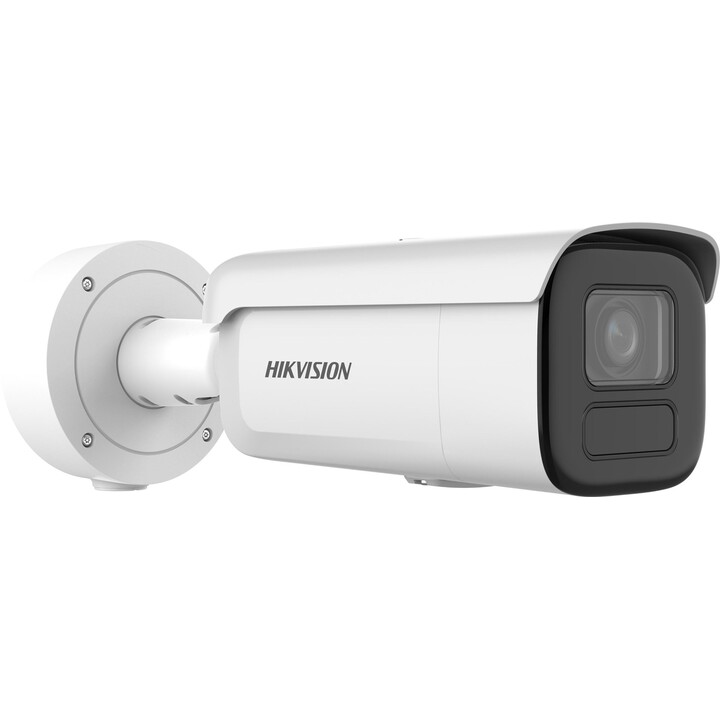

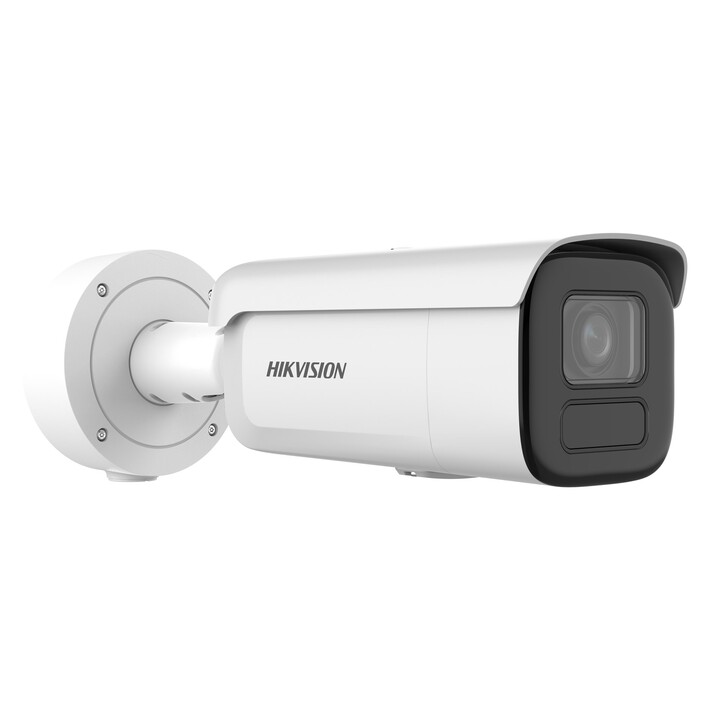

Hikvision DS-2CD2646G2H-IZS(2.8-12MM)(EF) Bullet (Shaped) Surveillance Camera Outdoor IP Security Camera 2688 x 1520 Pixels
Reference:
20616652000
EAN:
6936422134181
Condition:
New
Price:
€340.27
VAT included
Without tax:
€281.22
The Hikvision DS-2CD2646G2H-IZS is a high-performance outdoor bullet IP security camera featuring 4MP resolution (2688 x 1520 pixels), 2.8-12mm varifocal lens, and advanced video analytics including face detection and scene change. It offers robust protection with IP67 rating, IK10 vandal resistance, night vision up to 60m, and supports PoE for flexible installation. Ideal for reliable surveillance with smart IR and wide dynamic range.
Other features
Input and output (I/O) ports
1x line in, 1x line out
Energy control
Energy consumption (max)
18 W
DC output voltage
12
DC output amperage
1.21 A
Power consumption (Power over Ethernet, PoE)
14.5 W
Feeding
CC, PoE
Environmental conditions
Relative humidity range for operation
0 - 95%
Storage temperature range
-30 - 60 °C
Relative humidity range during storage
0 - 95%
Operating temperature range
-30 - 60 °C
Security
Audit log
Yeah
Network Attached Storage (NAS)
Yeah
Supported security algorithms
EAP-MD5, EAP-LEAP, EAP-TLS
Automatic Network Replenishment (ANR)
Yeah
Features of the intelligent video surveillance system (IVS)
Scene changes, Face detection
IP address filter
Yeah
Mirror
Yeah
Password reset via email
Yeah
Digital watermark
Yeah
Alert notification type
Email
Privacy protection
Yeah
Video motion detection
Yeah
Beat
Yeah
Summary Authentication
Yeah
Classification of objectives as vehicles and people
Yeah
HTTPS encryption
Yeah
Password protection
Yeah
Pixel counter
Yeah
Alarm output channels
1
Active tamper alarm
Yeah
Alarm input channels
1
Packaging
Package depth
190 mm
Package weight
2.35 kg
Package width
385 mm
Package height
180 mm
Sustainability
Certificates of conformity
REACH, Electromagnetic Compatibility (EMC), RCM, CE, RoHS, WEEE, Low Voltage Directive (LVD), Industry Canada (IC), CB
Storage media
Compatible memory cards
MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Maximum memory card size
512 GB
Built-in HDD
No
Integrated card reader
Yeah
Camera
Rotation angle
360 Ω
Angle of inclination
0 - 90 Ω
Lens viewing angle, horizontal
105.4 - 34.3 Ω
Tray reach
0 - 360 Ω
Number of privacy masking zones
4
Lens viewing angle, diagonal
125.8 - 39.4 Ω
Shutter speed
1/3 - 1/100000 s
Lens viewing angle, vertical
56.1 - 19.3 Ω
Minimum lighting
0 lx
Audio
Bit transfer rate range
8 - 320 Kbit/s
Audio output channels
1.0 channels
Supported audio formats
G.711, G.726, G.722.1, AAC-LC, MP3, PCM, MP2L2, G.711 ?-law, G.711 A-law
Sampling frequencies
8 - 48 kHz
Audio input channels
1.0 channels
Signal-to-noise ratio (SNR)
52 dB
Night vision
Night vision
Yeah
Night vision distance
60 m
LED type
GO
Infrared wavelength
850 nm
Design
IK Code
IK10
Product color
White
Form factor
Bullet (shape)
Housing material
Metal
IP Code (International Protection)
IP67
Mounting type
Ceiling/wall
Protection functions
Vandal-proof, Water-resistant, Dustproof
Video
Frame rate
30 pps
Noise reduction technology
3D Noise Reduction
Image quality adjustment
Sharpness, Contrast, Brightness, Saturation
Video broadcast
Yeah
Noise reduction
Yeah
High Beam Compensation (HLC)
Yeah
Video compression formats
H.264, H.265, M-JPEG, H.265+, H.264+
Video recording
Yeah
Maximum resolution
2688 x 1520 Pixels
Backlight compensation (BLC)
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported graphic formats
640 x 360, 2688 x 1520, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Privacy mask
Yeah
Total megapixels
4 MP
Smart IR
Yeah
Bit rate
32 Kbps - 8 Mbps
Coding of regions of interest (ROI)
Yeah
Image sensor
Optical sensor size
25.4 / 3 mm (1 / 3")
Sensor type
CMOS
Number of sensors
1
Progressive scanning
Yeah
Weight and dimensions
Diameter
14 cm
Length
333.8 mm
Weight
1.49 kg
Lens system
Observation distance (angular)
25.2 m
Recognition distance (tele)
36.1 m
Detection distance (angular)
63.4 m
Recognition distance (angular)
12.7 m
Focal length interval
2.8 - 12 mm
Maximum opening
1
Detection distance (tele)
180.6 m
Observation distance (tele)
71.7 m
Number of lenses
1
Identification distance (tele)
18.1 m
Identification distance (angular)
6.3 m
Connection
Ethernet interface type
Fast Ethernet
Bluetooth
No
Wifi
No
Network standards
IEEE 802.3af
Quality of Service (QoS) support
Yeah
Number of users
32 user(s)
Number of simultaneous live viewing channels
6 channels
Ethernet
Yeah
User access level
Administrator, Operator, User
Interoperability with the client
iVMS-4200, Hik-Connect, Hik-Central
Live view
Yeah
Management features
Restore button
Yeah
Web-based administration
Yeah
Behavioral analysis
Intrusion detection, Line crossing detection, Zone entry detection, Region exiting detection
Performance
Day/Night Mode
Yeah
Wide Dynamic Range (WDR)
Yeah
Supported placement
Abroad
Entry/Exit Alarm
Yeah
Guy
IP security camera
Dynamic range
120 dB
Connectivity technology
Wired
Supported languages
Multi
Number of languages
33
Infrared cut filter
Yeah
Ports and Interfaces
Port terminal block
Yeah
Ethernet LAN (RJ-45) number of ports
1
Package contents
Number of cameras
1
-
