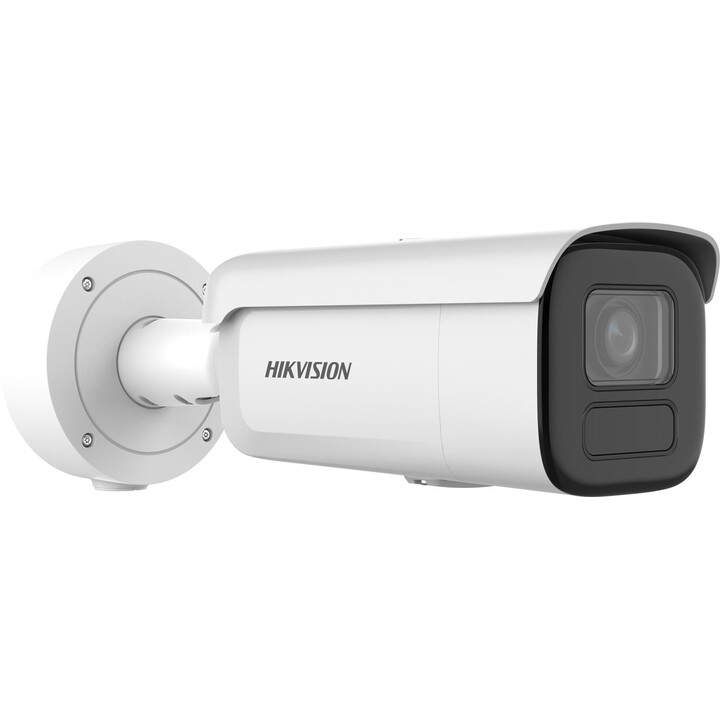

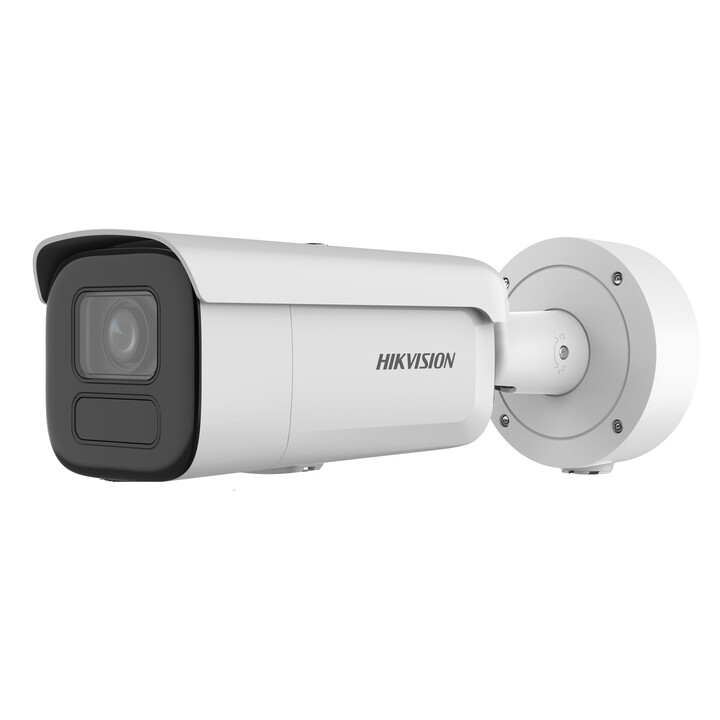

Hikvision DS-2CD2686G2H-IZS(2.8-12MM)(EF) Bullet (Shaped) Surveillance Camera Outdoor IP Security Camera 3840 x 2160 Pixels
Reference:
20616538000
EAN:
6936422134044
Condition:
New
Price:
€438.65
VAT included
Without tax:
€362.52
The Hikvision DS-2CD2686G2H-IZS(2.8-12MM)(EF) is an 8MP outdoor bullet-shaped IP security camera offering 3840 x 2160 resolution. Features include smart IR, 3D noise reduction, wide dynamic range, and advanced video analytics like face detection and intrusion detection. It supports PoE, has a 60m night vision range, and is IP67 rated for weather resistance.
Other features
Input and output (I/O) ports
1x line in, 1x line out
Video
Maximum resolution
3840 x 2160 Pixels
Coding of regions of interest (ROI)
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy mask
Yeah
Bit rate
32 Kbps - 16 Mbps
Backlight compensation (BLC)
Yeah
Video compression formats
H.265, M-JPEG, H.264, H.264+, H.265+
High Beam Compensation (HLC)
Yeah
Frame rate
30 pps
Image quality adjustment
Sharpness, Brightness, Saturation, Contrast
Noise reduction
Yeah
Supported graphic formats
1920 x 1080 (HD 1080), 640 x 480 (VGA), 3200 x 1800, 2688 x 1520, 1280 x 720 (HD 720), 3840 x 2160, 640 x 360
Noise reduction technology
3D Noise Reduction
Video broadcast
Yeah
Smart IR
Yeah
Total megapixels
8 MP
Video recording
Yeah
Night vision
LED type
GO
Night vision
Yeah
Night vision distance
60 m
Infrared wavelength
850 nm
Lens system
Focal length interval
2.8 - 12 mm
Number of lenses
1
Maximum opening
1.2
Recognition distance (angular)
17.8 m
Detection distance (tele)
220 m
Observation distance (angular)
35.4 m
Detection distance (angular)
89.2 m
Observation distance (tele)
87.3 m
Identification distance (angular)
8.9 m
Recognition distance (tele)
44 m
Identification distance (tele)
22 m
Camera
Tray reach
0 - 360 Ω
Angle of inclination
0 - 90 Ω
Rotation angle
360 Ω
Lens viewing angle, horizontal
112.3 - 41.2 Ω
Shutter speed
1/3 - 1/100000 s
Lens viewing angle, diagonal
137.4 - 47.3 Ω
Lens viewing angle, vertical
58.1 - 23.1 Ω
Minimum lighting
0 lx
Number of privacy masking zones
4
Performance
Supported placement
Abroad
Connectivity technology
Wired
Day/Night Mode
Yeah
Entry/Exit Alarm
Yeah
Wide Dynamic Range (WDR)
Yeah
Guy
IP security camera
Infrared cut filter
Yeah
Number of languages
33
Supported languages
Multi
Dynamic range
120 dB
Energy control
DC output amperage
1.21 A
DC output voltage
12
Feeding
CC, PoE
Energy consumption (max)
18 W
Power consumption (Power over Ethernet, PoE)
14.5 W
Security
Features of the intelligent video surveillance system (IVS)
Face detection, Scene changes
Mirror
Yeah
Pixel counter
Yeah
Password reset via email
Yeah
Video motion detection
Yeah
Classification of objectives as vehicles and people
Yeah
Password protection
Yeah
Summary Authentication
Yeah
Supported security algorithms
EAP-TLS, EAP-LEAP, EAP-MD5
Active tamper alarm
Yeah
HTTPS encryption
Yeah
Digital watermark
Yeah
IP address filter
Yeah
Alert notification type
Email
Privacy protection
Yeah
Beat
Yeah
Alarm output channels
1
Automatic Network Replenishment (ANR)
Yeah
Alarm input channels
1
Network Attached Storage (NAS)
Yeah
Audit log
Yeah
Image sensor
Progressive scanning
Yeah
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Sensor type
CMOS
Number of sensors
1
Audio
Audio input channels
1.0 channels
Supported audio formats
MP2L2, G.711 ?-law, G.722.1, G.711, G.726, AAC-LC, MP3, PCM, G.711 A-law
Sampling frequencies
8 - 48 kHz
Bit transfer rate range
8 - 320 Kbit/s
Signal-to-noise ratio (SNR)
52 dB
Audio output channels
1.0 channels
Connection
User access level
Administrator, Operator, User
Ethernet interface type
Fast Ethernet
Number of simultaneous live viewing channels
6 channels
Network standards
IEEE 802.3af
Ethernet
Yeah
Quality of Service (QoS) support
Yeah
Number of users
32 user(s)
Wifi
No
Bluetooth
No
Interoperability with the client
iVMS-4200, Hik-Connect, Hik-Central
Live view
Yeah
Storage media
Built-in HDD
No
Compatible memory cards
MicroSDXC, MicroSD (TransFlash), MicroSDHC
Integrated card reader
Yeah
Maximum memory card size
512 GB
Weight and dimensions
Diameter
14 cm
Weight
1.48 kg
Length
333.8 mm
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
Port terminal block
Yeah
Management features
Restore button
Yeah
Web-based administration
Yeah
Behavioral analysis
Intrusion detection, Line crossing detection, Zone entry detection, Region exiting detection
Design
Protection functions
Vandal-proof, Water-resistant, Dustproof
Mounting type
Ceiling/wall
IK code
IK10
Product color
White
IP Code (International Protection)
IP67
Housing material
Metal
Form factor
Bullet (shape)
Package contents
Number of cameras
1
Environmental conditions
Relative humidity range during storage
0 - 95%
Storage temperature range
-30 - 60 °C
Operating temperature range
-30 - 60 °C
Relative humidity range for operation
0 - 95%
Packaging
Package weight
2.32 kg
Package depth
190 mm
Package width
385 mm
Package height
180 mm
Sustainability
Certificates of conformity
RCM, CE, REACH, RoHS, WEEE, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), Industry Canada (IC), CB
-
Brand
-
Reference20616538000
-
In stock26 Items
-
ConditionNew
-
EAN136936422134044
-
MPN20616538000
