Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Outdoor IP Security Camera Pad 2688 x 1520 Pixels Ceiling/Wall
Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Outdoor IP Security Camera Pad 2688 x 1520 Pixels Ceiling/Wall
Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Outdoor IP Security Camera Pad 2688 x 1520 Pixels Ceiling/Wall

Hikvision DS-2CD2543G2-IS(2.8MM)(Black) Outdoor IP Security Camera Pad 2688 x 1520 Pixels Ceiling/Wall

HikVision
Reference: DS-2CD2543G2-IS(2.8mm)(
EAN: 6931847136086
Condition: New
€229.19
VAT included
Without tax: €189.41

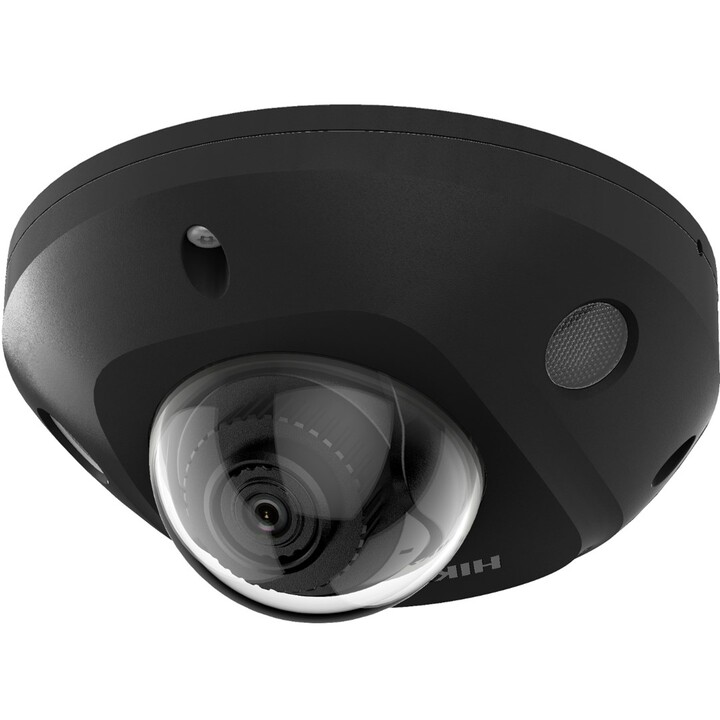

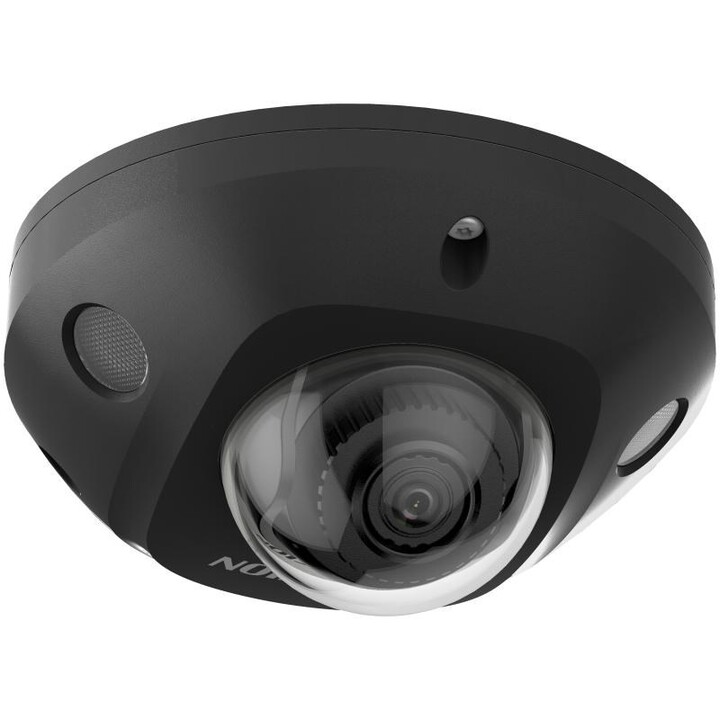

The Hikvision DS-2CD2543G2-IS(2.8MM) is a black outdoor IP security camera with a 4MP CMOS sensor and a 2.8 mm fixed focal lens. It supports 2688 x 1520 resolution, night vision up to 30 m, and features like motion detection, wide dynamic range, and multiple video compression formats. Designed for ceiling or wall mounting, it offers wired connectivity with PoE support and advanced security features including HTTPS encryption and tamper alarms.
Share


Buy it now and receive it between Fri 25 and Thu 1 with GLS o Correos Express España €19.90

Up to 3 years warranty 100% secure payment 14 days return

Performance
Certification
WEEE, Reach, CE-RoHS
Guy
IP security camera
Supported placement
Abroad
Wide Dynamic Range (WDR)
Yeah
Connectivity technology
Wired
Day/Night Mode
Yeah
Dynamic range
120 dB
Number of languages
33
Entry/exit alarm
Yeah
Infrared cut filter
Yeah
Support languages
Multi
Other features
Input and output (I/O) ports
line in, line out
Power control
Feeding
CC, PoE
Power consumption (max)
5.5 W
DC output voltage
12
DC output amperage
0.45 A
Power consumption (Power over Ethernet, PoE)
7 W
Environmental conditions
Storage temperature range
-30 - 60 °C
Operating temperature range
-30 - 60 °C
Relative humidity range for operation
0 - 95%
Relative humidity range during storage
0 - 95%
Connection
Wifi
No
Bluetooth
No
Ethernet interface type
Fast Ethernet
Number of users
32 user(s)
Number of simultaneous live viewing channels
6 channels
Quality of Service (QoS) support
Yeah
Ethernet
Yeah
User access level
Administrator, Operator, User
Client interoperability
iVMS-4200, Hik-Connect, Hik-Central
Live view
Yeah
Design
Product color
Black
Form factor
Pad
Mounting type
Ceiling/wall
IP Code (International Protection)
IP67
IK Code
IK08
Packaging
Package width
134 mm
Package depth
134 mm
Package height
108 mm
Package weight
615 g
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
Camera
Tray reach
-30 - 30 Ω
Rotation angle
360 Ω
Angle of inclination
0 - 75 Ω
Angle of view of the lens, vertical
55.9 Ω
Angle of view of the lens, diagonal
123.8 Ω
Lens angle of view, horizontal
104.3 Ω
Shutter speed
1/3 - 1/100000 s
Camera pan control
Yeah
Camera tilt control
Yeah
Minimum lighting
0 lx
Video
Image quality adjustment
Sharpness, Contrast, Brightness, Saturation
Video broadcast
Yeah
Noise reduction technology
3D noise reduction
Supported graphic formats
2688 x 1520, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360
Maximum resolution
2688 x 1520 Pixels
Noise reduction
Yeah
Gain control type
Car
Total megapixels
4 MP
Video compression formats
H.264+, H.264, H.265, M-JPEG, H.265+
Bit rate
32 Kbps - 8 Mbps
Frame rate
30 pps
Bitrate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) Encoding
Yeah
Backlight Compensation (BLC)
Yeah
High Beam Compensation (HLC)
Yeah
Storage media
Compatible memory cards
MicroSD (TransFlash)
Built-in HDD
No
Maximum memory card size
256 GB
Integrated reading card
Yeah
Weight and dimensions
Height
57.4 mm
Weight
380 g
Diameter
11 cm
Security
Motion detection in video
Yeah
Password protection
Yeah
Automatic Network Replenishment (ANR)
Yeah
Audit log
Yeah
Features of the Intelligent Video Surveillance System (IVS)
Face detection
IP Address Filter
Yeah
Active tamper alarm
Yeah
HTTPS encryption
Yeah
Beat
Yeah
Alarm input channels
1
Alarm output channels
1
Anti-flicker
Yeah
Pixel counter
Yeah
Password reset by email
Yeah
Lens system
Maximum opening
1.6
Fixed focal length
2.8 mm
Detection distance
64 m
Number of lenses
1
Identification distance
6 m
Management Features
Restore button
Yeah
Web-based administration
Yeah
Behavior analysis
Intrusion detection, Line crossing detection
Audio
Sampling frequencies
8 - 48 kHz
Supported audio formats
AAC, MP3
Built-in microphone
Yeah
Range of bit rates
8 - 320 Kbit/s
Signal-to-noise ratio (SNR)
52 dB
Voice codecs
G.726, MP2L2, G.722.1, G.711ulaw, G.711alaw
Audio input channels
1.0 channels
Audio output channels
1.0 channels
Night vision
Night vision distance
30 m
Night vision
Yeah
LED type
GO
Infrared wavelength
850 nm
Image sensor
Sensor type
CMOS
Number of sensors
1
Progressive scanning
Yeah
Optical sensor size
25.4 / 3 mm (1 / 3")
Package contents
Number of cameras
1
Technical details
Lens mounting interface
M12
Iris
Yeah
