IP camera level one no wifi 2 megapixel wdr poe optical zoom x4 outdoor vandal-proof fcs-5060

Description

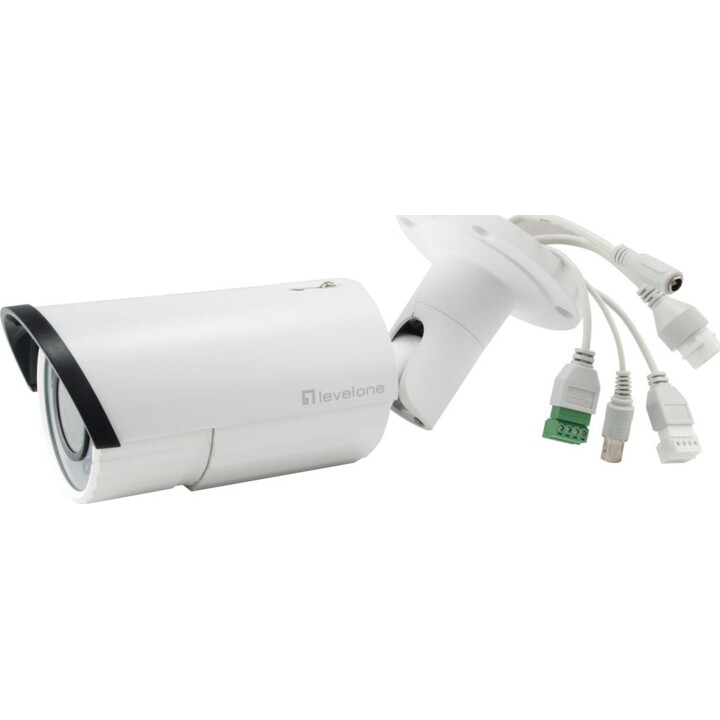

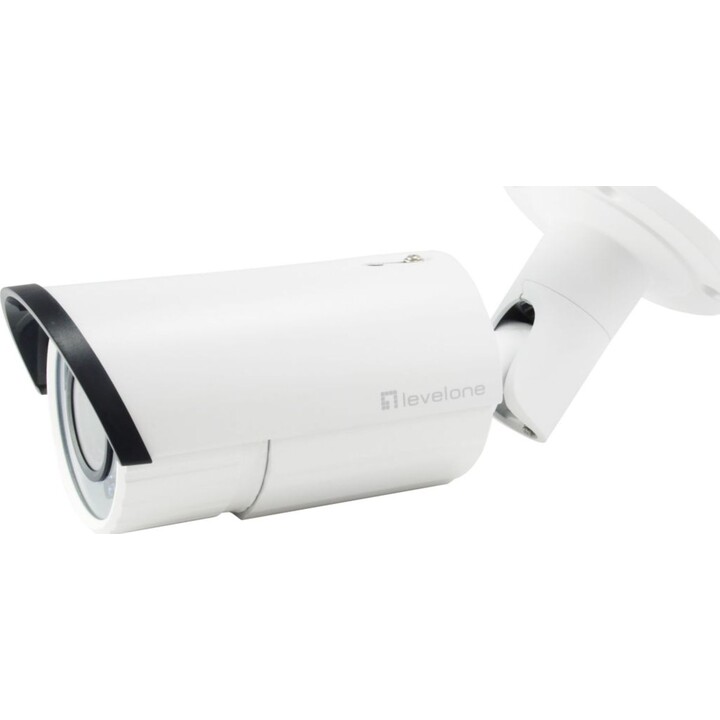

LevelOne FCS-5060 Bullet IP Security Camera Indoor/Outdoor 1920 x 1080 Pixels Ceiling/Wall Mount

The LevelOne FCS-5060 is a fixed-position outdoor camera that offers a cost-effective and ultra-reliable solution for outdoor IP surveillance networks. It has an IP66 rating, allowing it to operate in rain, extreme heat, snow, dust, and humidity. Providing clear, crisp images with 2-megapixel resolution and the versatility of the 802.3af PoE standard, allowing it to transfer power and data over a single Cat.5 cable, the LevelOne FCS-5060 camera should be an essential part of any security deployment requiring smart and reliable outdoor cameras.

- IP66 weatherproof housing

- 2 Megapixel high resolution (1920 x 1080)

- Video compression: H.264/MJPEG

- Includes WDR (Wide Dynamic Range) for improved visibility in extremely bright or dark environments

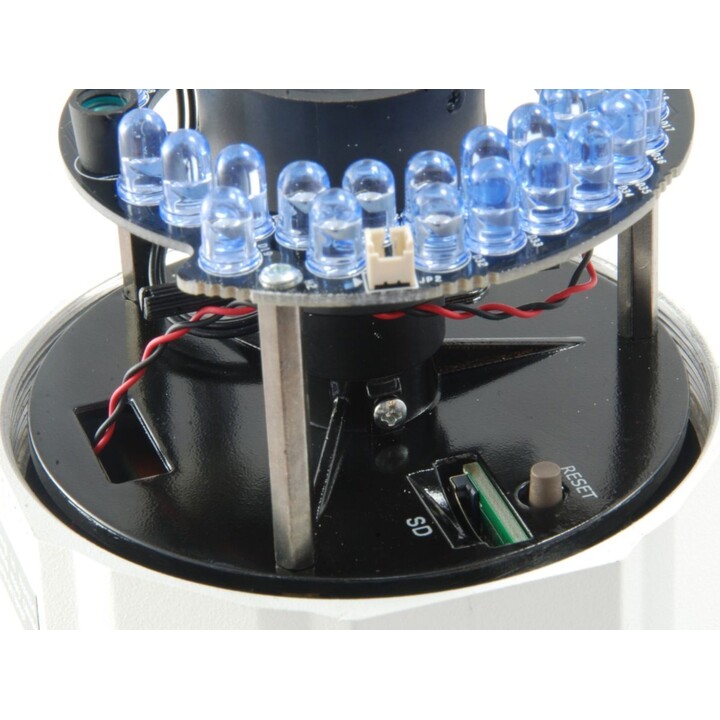

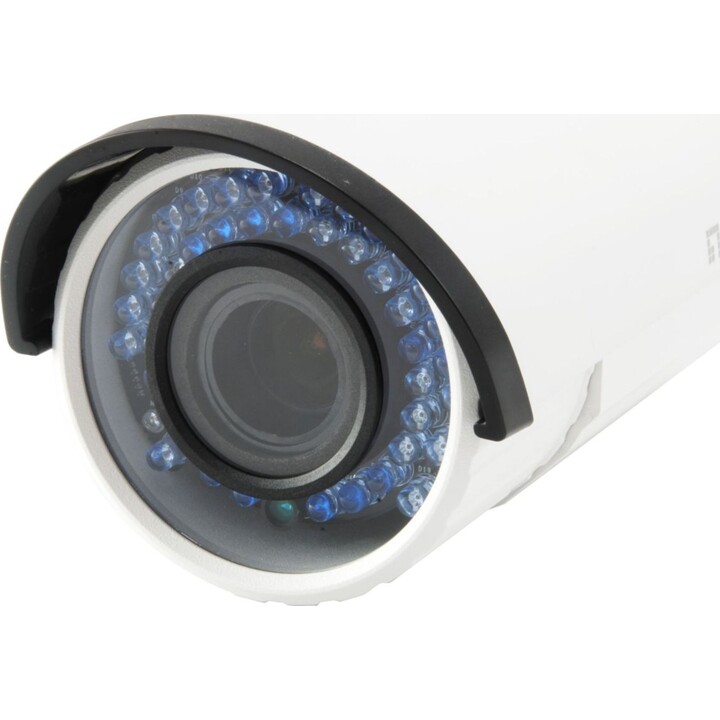

- Built-in infrared LEDs for night viewing up to 30 m

- Digital input/output (1 ed/1 sd) for sensor and alarm

- Power support: PoE (IEEE 802.3af)

- Adjustable varifocal distance between 2.8 and 12 mm to enable panoramic mode surveillance

Key product points

Indoor and outdoor IP security camera

CMOS 25,4 / 2,8 mm (1 / 2.8") 2 MP 1920 x 1080 Pixeles

Alámbrico Ethernet

Night vision 30 m IR

Optical zoom: 4x

Bullet (shape) Ceiling/wall

IP66

White

1,2 kg

Performance

Type: IP Security Camera

Supported placement: Indoor and outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Infrared cut filter: Yes

Certification: CE, FCC

Design

Form Factor: Bullet (shape)

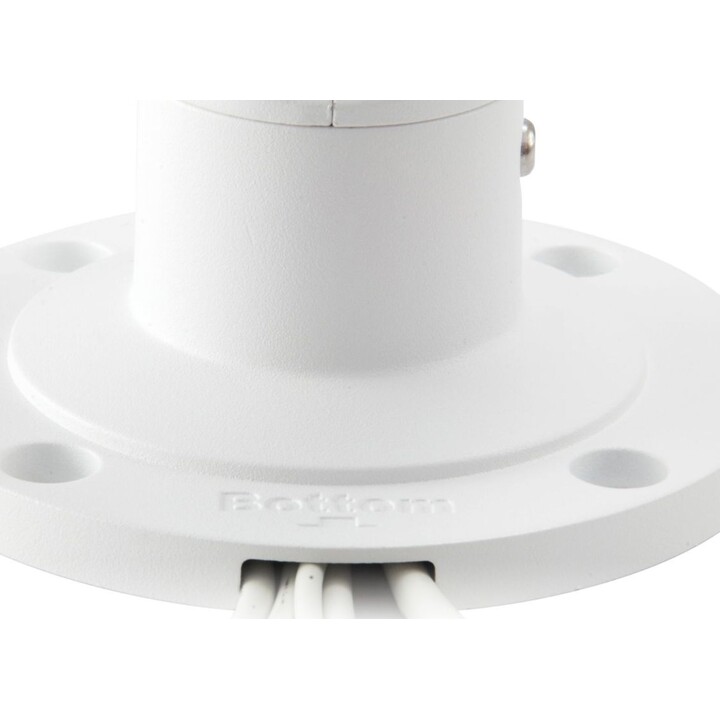

Mounting type: Ceiling/wall

Product color: White

IP (International Protection) Code: IP66

Country of origin: China

Camera

Minimum illumination: 0 lx

Field of view (FOV) angle: 106°

Shutter speed: 1/3 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Zoom capability: Yes

Optical zoom: 4x

Number of lenses: 1

Focal length range: 2.8 - 12 mm

Focus: Motorized

Focus Settings: 1.4

Night vision

Night vision: Yes

Night vision distance: 30 m

LED Type: IR

Video

Maximum resolution: 1920 x 1080 pixels

Total megapixels: 2 MP

Supported video formats: MP4

Video compression formats: H.264, H.264+, M-JPEG

Supported graphics formats: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Frame rate: 30 fps

Video streaming: Yes

Noise reduction: Yes

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Symmetry/Mirror Effect: Yes

Portrait mode: Yes

Privacy Mask: Yes

Date and time stamp: Yes

Overlay text: Yes

Backlight Compensation (BLC): Yes

Audio

Audio codecs: G.711, G.722.1, G.726

Connection

Ethernet: Si

Ethernet interface type: Fast Ethernet

Network standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Protocolos de red compatibles: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast

Wifi: No

Bluetooth: No

Number of users: 20 user(s)

Broadcast Mode: Multicast

Storage media

Integrated reading card: Yes

Compatible memory cards: SD, SDHC, SDXC

Maximum memory card size: 128GB

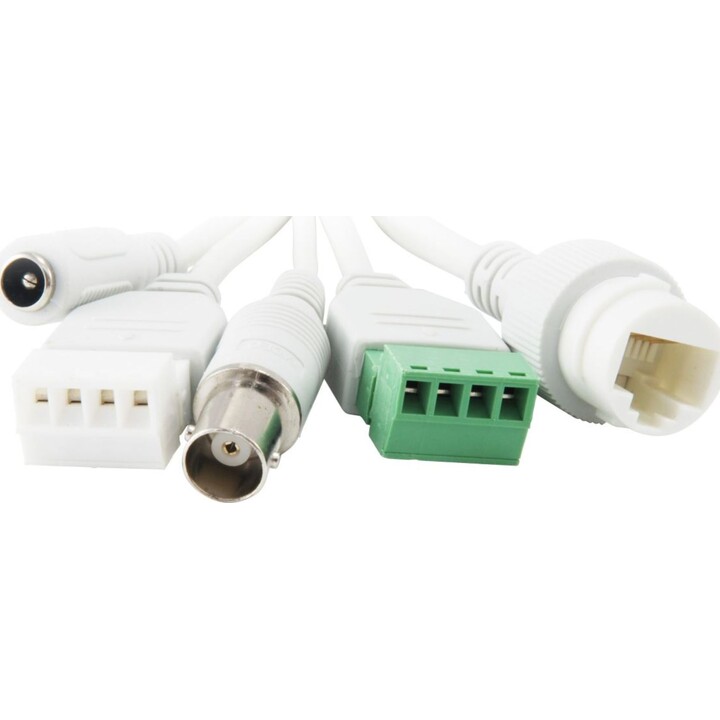

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Composite video output: 1

Terminal block port: Yes

Security

Motion detection in video: Yes

Management Features

Restore button: Yes

Cable management: Yes

Power control

Power: PoE

Power consumption: 5.5 W

Power consumption (max): 7.5 W

DC output voltage: 12

Power over Ethernet (PoE): Yes

Environmental conditions

Operating temperature range: 30 - 60 °C

Relative humidity range for operation: 0 - 95%

System Requirements

Sistema operativo Windows soportado: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Weight and dimensions

Ancho: 105 mm

Depth: 258.6 mm

Height: 95 mm

Weight: 1.2 kg
