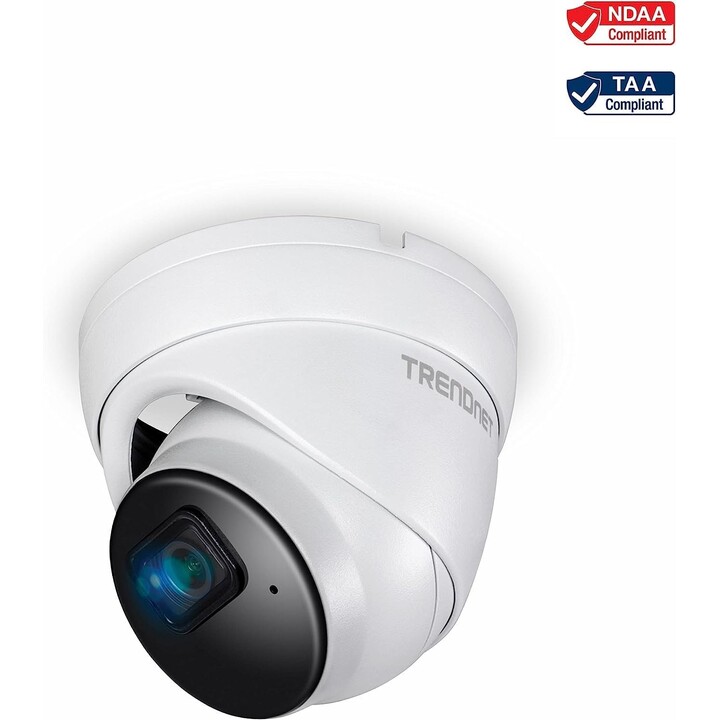

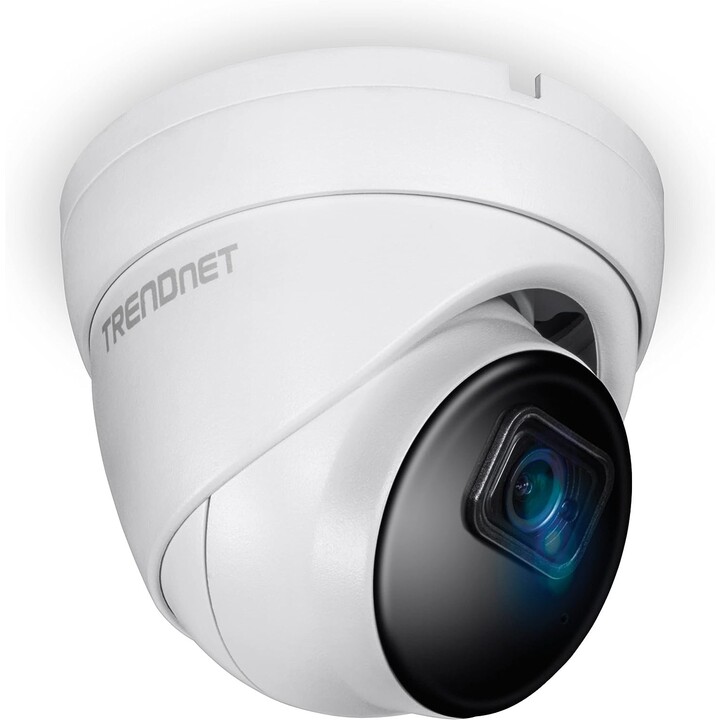

TRENDnet TV-IP1515PI Camera White

TRENDnet's 5MP Indoor/Outdoor H.265 WDR PoE Turret Network Camera with IR, model TV-IP1515PI, provides day and night surveillance with a 98-foot (30-meter) view range. This turret network camera offers year-round surveillance thanks to its IP66 weather-rated housing that withstands outdoor environments. Record 5MP HD video at 20fps in H.265 compressed format to save space. Easily view live 5MP turret camera video on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

• Installation of QR code for easy access to the P2P cloud
• 5MP HD (2592 x 1920) video at 20 fps
• IR LEDs with night vision for night vision with a range of 30m (98ft)

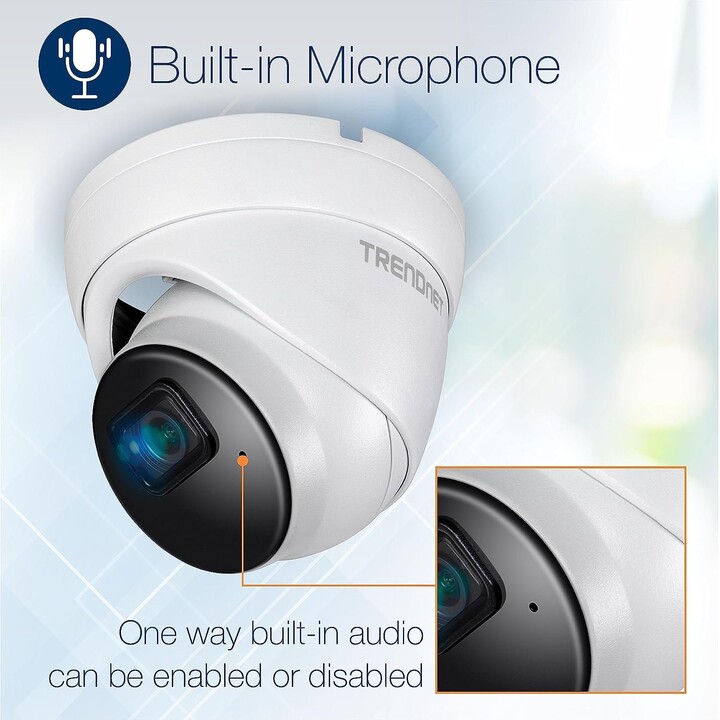

• Built-in microphone for one-way audio
• external protection ip66
• Digital Wide Dynamic Range Image Balance
• Save installation costs thanks to PoE (Power over Ethernet) technology
• Programmable motion detection recording and email alerts
• Micro SD card slot (256GB)
• Free Sentinel mobile app for iOS® and Android™ phones
• Free View Manager Companion Software for PC
• made in taiwan
• NDAA/TAA compliant

HD surveillance with night vision

Night vision up to 30 meters away, with infrared (IR) night vision LEDs that dynamically adjust as needed.

Power over Ethernet (PoE)

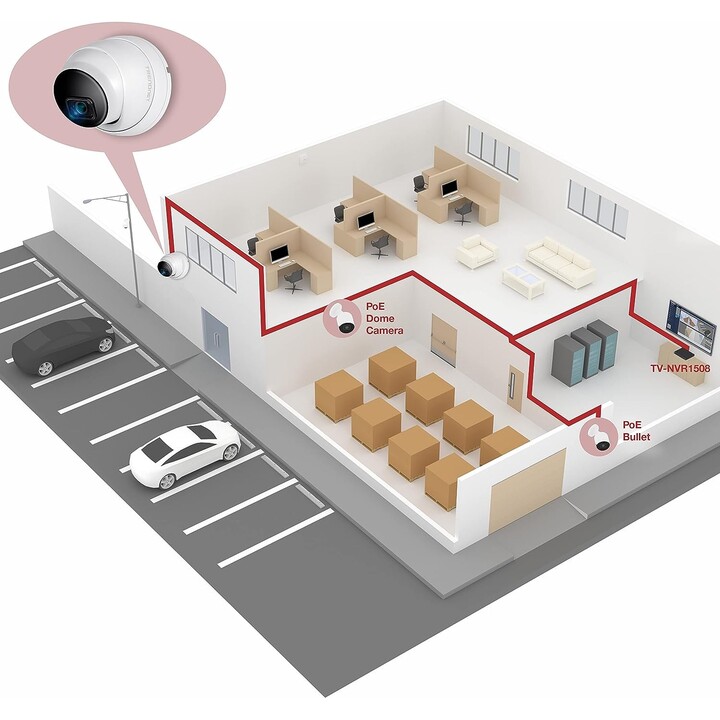

The PoE solution saves cost and offers the flexibility to install this 5MP turret camera 100m (328ft) away from PoE-supplied equipment.

for outdoors

Designed for outdoor environments, with an IP66 climate rating and an operating temperature range of -30° – 50° C (-22° – 122° F).

• 5 megapixels
• Record 5MP HD (2592 x 1920) video at 20fps in H.265 compressed format to save space.
• HD surveillance with night vision
• Night vision infrared LEDs dynamically adjust the infrared (IR) LEDs, lowering their intensity when objects are close and increasing their intensity when objects are further away. Night viewing from 30 meters (98 feet) away
• PoE
• Save installation costs thanks to PoE (Power over Ethernet) technology
• for outdoors
• Outdoor, with IP66 weather rated housing
• 3-axis adjustment
• Manually adjust the pan and tilt angles of this 5 MP turret camera to find the optimal position of the camera lens
• Storage
• Record video from this 5MP camera to network storage or a Micro SD card (256GB - not included)
• advanced playback
• Advanced in-camera archived video viewing functionality
• movement detection
• Create custom motion detection zones for this 5MP outdoor PoE camera to record video and send email notifications when a zone is triggered
• Wide Dynamic Range (WDR)
• Adjustable 120dB WDR setting increases image quality and focus when the camera is exposed to high-contrast lighting environments, enhancing dark areas of the image to make them more visible
• Recording Flexibility
• Define custom schedules using continuous recording (24/7) and event-based recording modes.
• ONVIF
• ONVIF Profile S
• Software included for free
• Free View Manager software to control TRENDnet cameras

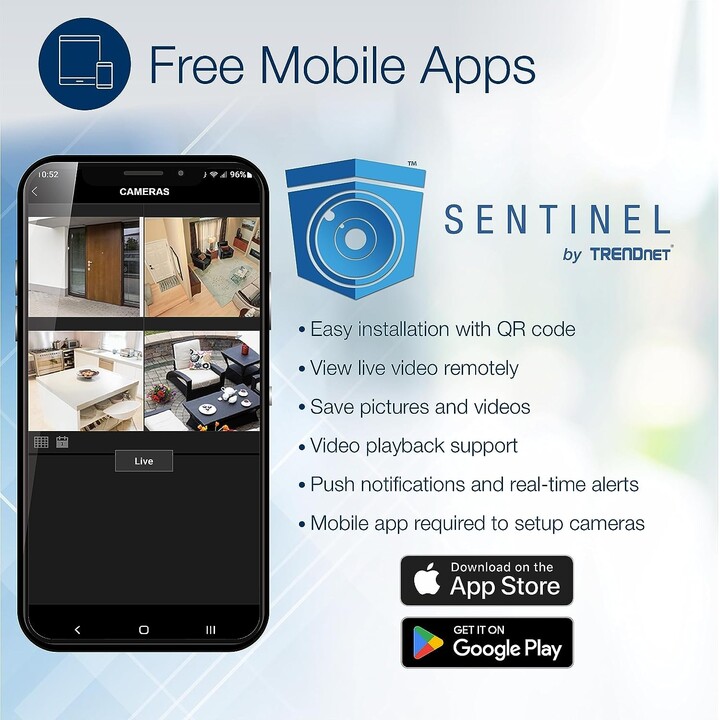

• free apps
• Easily view live 5 MP Turret Camera video on your mobile device using our free Sentinel iOS® and Android™ app.

Specifications

• Lens
• Focal Length: 3.6mm at F1.6
• Sensor: 1/2.7' CMOS Sensor
• DWDR
• DNR 3D
• Display
• Horizontal angle: 79˚
• Upright Angle: 56˚
• Diagonal angle: 106˚
• Manual Pan: 0° to 360°
• Manual Tilt: 0° to 80°
• Lens Rotation: 0° to 360°
• minimum illumination
• IR off: 0.01 lux
• IR linked: 0 lux
• Infrared distance: 30m (98ft)
• Infrared LED Wavelength: 850nm
• Compression
• H.265
• H.264
• MJPEG
• Resolution
• Main Stream: H.265/H.264: 2592 x 1920 at 20fps
• Sub Stream: H.265/H.264/MJPEG: 1280 x 720 @ 10fps
• Third stream: H.265/H.264/MJPEG: 720 x 480 up to 10 fps
• standards
• IEEE802.1x
• IEEE802.3
• IEEE 802.3u
• IEEE802.3x
• IEEE 802.3af

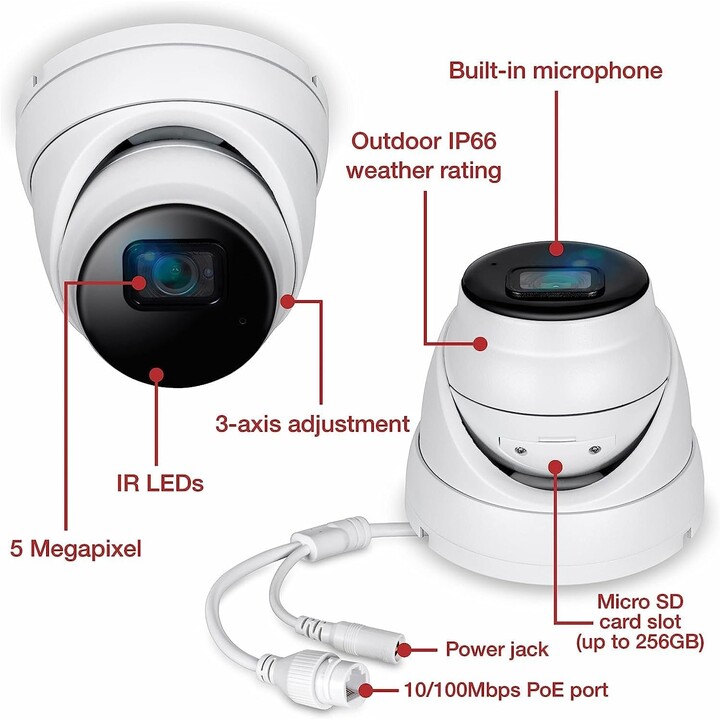

• Interface
• 10/100Mbps PoE
• MicroSD card slot
• Plug
• built-in microphone
• reset button
• micro SD slot
• Supports Micro SD/SDHC/SDXC (not included)
• Up to 128GB
• Cabinet
• IP67 rating
• network protocols
• IPv4, IPv6, UDP, TCP/IP
• DHCP, NTP, DDNS, SMTP, FTP, LLTD
• SME
• HTTP, HTTPS
• RTSP, RTP
• Compliance Standard
• ONVIF (Profile S)
• Dimension
• 100 x 100 x 90mm (3.9 x 3.9 x 3.54 inches)
• Weight
• 438g (0.96 oz)
• Operating temperature
• -30° – 50° C (-22° – 122° F)
• Humidity
• max 95% non-condensing
• Feeding
• Input: PoE
• Maximum consumption: 5W
• Power adapter (optional model: 12VDC1A)
• Input: 100 to 240V AC, 50/60 Hz
• Output: 12 V DC, 1 A, external power supply
• management interface
• Support multiple languages
• Image settings: 3D noise reduction, brightness, hue contrast, saturation, sharpness, exposure value, auto image gain, day/night shift, WDR, white balance, mirror, flip, color mode
• D-WDR improves video quality in high-contrast daylight
• 3D noise reduction removes digital noise from the video signal
• Audio: built-in microphone can be turned on and off
• Date and time overlay
• Video recording: scheduled, motion detection and tamper detection
• Motion Detection: Set motion detection areas and motion sensitivity
• Privacy masks: define custom privacy masks
• Tamper detection function: email notification
• Snapshot: Real-time snapshot and motion trigger
• Remote management support
• view manager
• Supports TRENDnet cameras
• playback of recordings
• Options and custom views
• Compatibility: Windows®
• Application
• Free app for iOS™ and Android™
• View live camera video
• push notifications
• Photos and videos
• Reproduction
• Certifications
• THIS
• FCC
• UL

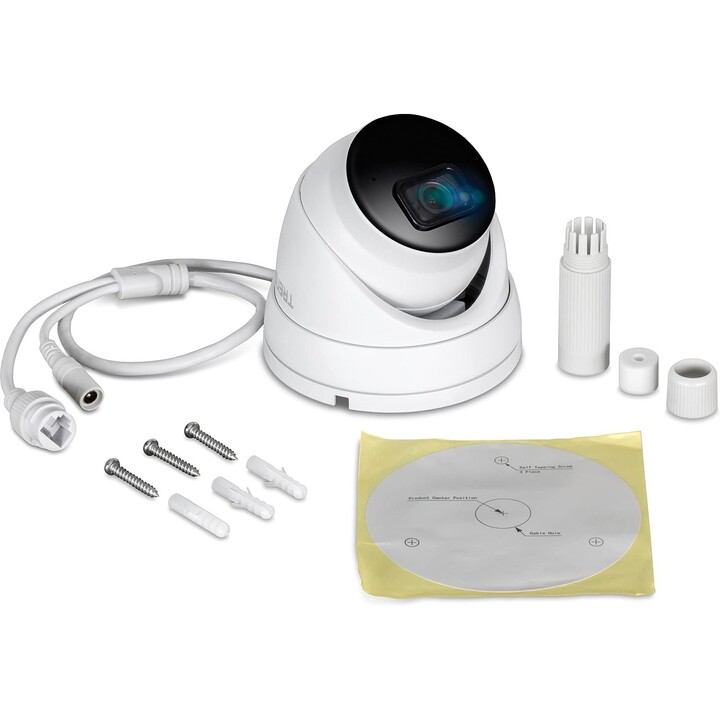

• PACKAGE CONTENTS
• TV-IP1515PI
• moisture seal
• Quick Installation Guide
• Camera mounting accessories
