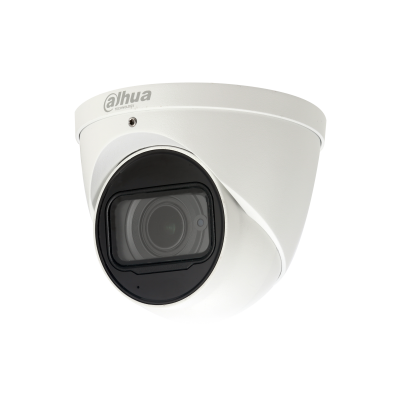

(DH-IPC-HDW5831RP-ZE-2712) 8MP WDR EYEBALL DOME CAMERA NETWORK CAMERA
Specifications:
- Ethernet LAN ports (RJ-45): 1
- Digital zoom: 16x
- Number of lenses: 1
- Maximum opening: 1.8
- Zoom capability: Yes
- Optical zoom: 4x
- Focal length range: 2.8 - 12mm
- Focus: Motorized
- Height: 104mm
- Weight: 600g
- Diameter: 12.2cm
- Package weight: 760g
- Power consumption: 8.5mA
- Power: DC, PoE
- Operating temperature range: -30 - 60 °C
- Storage temperature range: -30 - 60 °C
- Operating relative humidity: 0 - 95%
- Storage relative humidity: 0 - 95%
- Relay mode: Multicast, Unicast
- Ethernet: Yes
- Wi-Fi: No
- Network standards: IEEE 802.3af
- Supported network protocols: HTTP HTTPs TCP ARP RTSP RTP UDP SMTP FTP DHCP DNS DDNS PPPOE IPv4/v6 QoS UPnPNTP Bonjour 802.1x Multicast ICMP IGMP SNMP
-Bluetooth: No
- Quality of service (QoS) support: Yes
- Number of users: 20 user(s)
- Maximum resolution: 3840 x 2160 pixels
- Video compression formats: H.264, H.264+, H.265, H.265+
- Frame rate: 30 ips
- Privacy mask: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Total megapixels: 8 Mpx
- Supported graphics formats: 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) , 2304x1296, 2592x1944, 2688x1520, 3072x1728, 3072x2048, 3840x2160
- Backlight compensation (BLC): Yes
- Video emission: Yes
- Type of gain control: Automatic/Manual
- Bit rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
- High Beam Compensation (HLC): Yes
- Symmetry/Mirror effect: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 128 GB
- HTTPS encryption: Yes
- Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
- Sensor type: CMOS
- Number of sensors: 1
- Progressive scan: Yes
- Lens angle of view, horizontal: 110°
- Lens angle of view, vertical: 58°
- Camera displacement control: Yes
- Camera tilt control: Yes
- Tilt angle: 0 - 78°
- Tray range: 0 - 360°
- Minimum illumination: 0.05 lx
- Rotation angle: 360°
- Shutter speed: 1/3 - 1/100000 s
- Number of cameras: 1
- Color of product: Black, White
- Form Factor: Minidome
- Mounting type: Ceiling/wall
- IP code (International Protection): IP67
- Housing material: Metal
- Night vision: Yes
- Night vision distance: 50 m
- LED type: IR
- Type: IP security camera
- Placement supported: Indoor and outdoor
- Connectivity technology: Cable
- Day / night mode: Yes
- Certification: CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B
