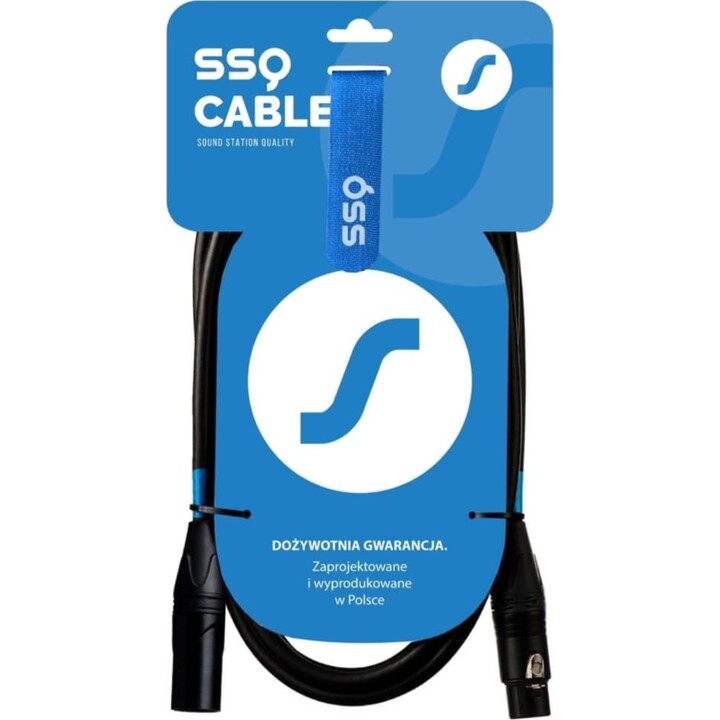

SSQ DMX5 cable 5 metres

The Polish brand SSQ  is characterized by the production of very high-quality audio cables and other accessories for studio and commercial use.

SSQ cables are manufactured in Poland. Each one is crafted with due care and from high-quality materials.

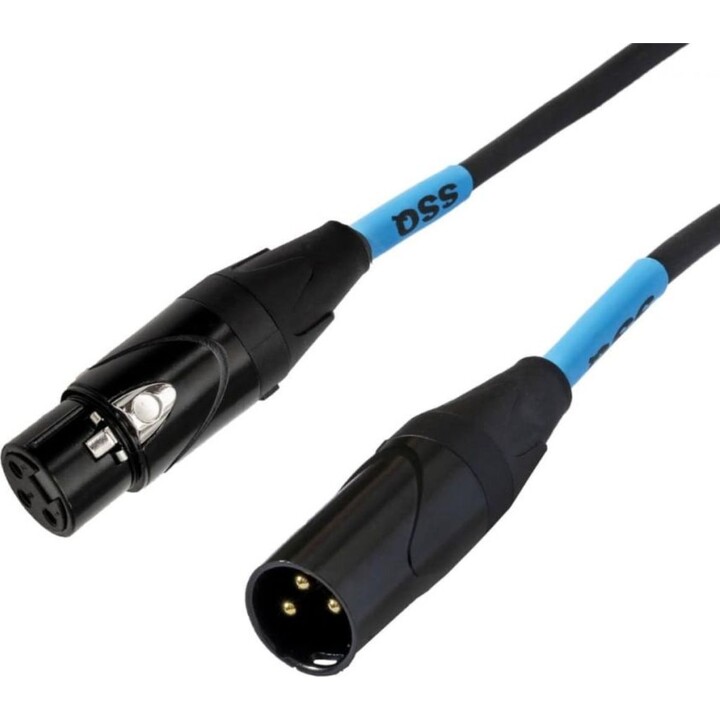

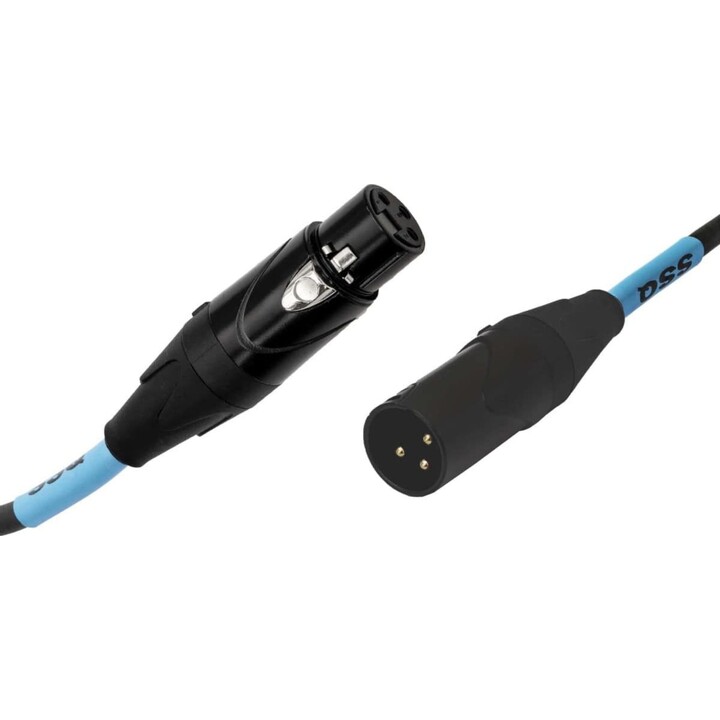

The DMX model  is a cable with a male XLR connector on one end and a female XLR connector on the other. At first glance, you might think it's a standard XLR cable, but nothing could be further from the truth. The DMX cable features higher impedance and an additional braided foil that protects against external electromagnetic fields—in other words, it protects against signal interference.

Application

We use these cables in digital network communications, e.g. in lighting systems, stage effects control systems, etc.

General specifications:

-Length: 5 meters

-Connectors: XLR male - XLR female

-Wire 2 x 0.25mm²

-Outer diameter of the cable 6mm

-Connectors have protection against cable tearing

-Plugs soldered with lead-free tin with the addition of silver

-High quality OFC copper

-Each cable has a Velcro fastener for easy transport

Detailed technical data of the cable:

Operating temperature:

permanent installations: -30°C to 80°C

mobile installations: -5°C to 80°C

Minimum laying temperature:  -5°C

Capacity (at 1kHz):

core/core: ≤ 60nF/km

core/screen: ≤ 115nF/km

Impedance:  110Ω±10

Minimum insulation resistance:  1GΩxkm

Minimum bending radius:  5xØ (Ø - cable diameter)

Diameter:  6mm

Conductors:  tinned copper, multi-stranded (8x0.20 strand construction)

Insulation:  PE polyethylene

Core markings:  white, red

Center:  parallel twisted veins

Screen:  metallized foil, tinned copper grounding wire, braid made of tinned copper strands, with a coverage density of at least 85%

Coating:  special polyurethane coating, oil-resistant (EN 60811-404), resistant to petroleum substances, industrial coolants, self-extinguishing, flame retardant according to EN 60332-1, UV-resistant
