Digitus CAT 5e U-UTP Data Cable - Installation Cable, 100 MHz Eca (PVC), AWG 24/1, 100 m Box, Sx, Gray

Description

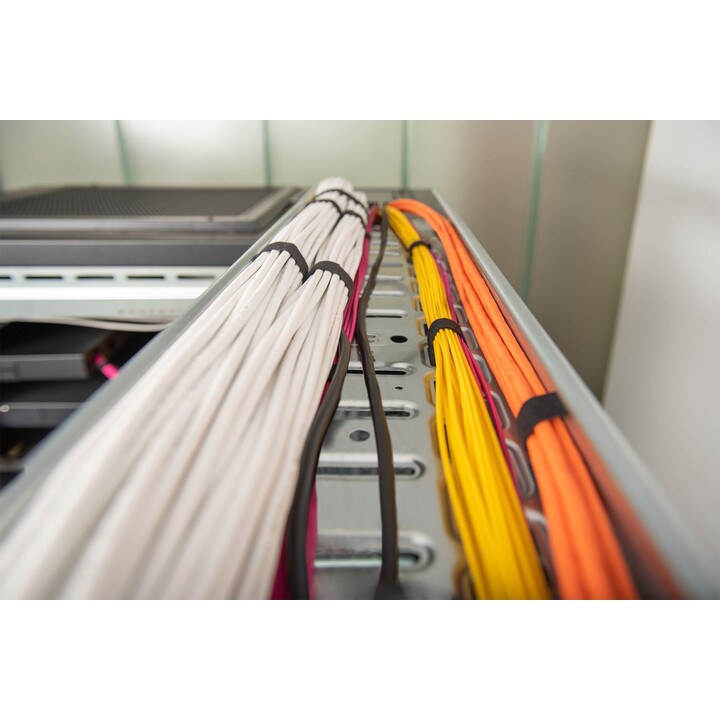

The Digitus Cat 5e U/UTP installation cable is suitable for use in structured data centers and building cabling compliant with ISO/IEC 11801, DIN EN 50288-3-1, and DIN EN 50173. The cable is excellent for both analog and digital data transmission and supports PoE. It offers reliable transmission quality for standard applications.

Technical data

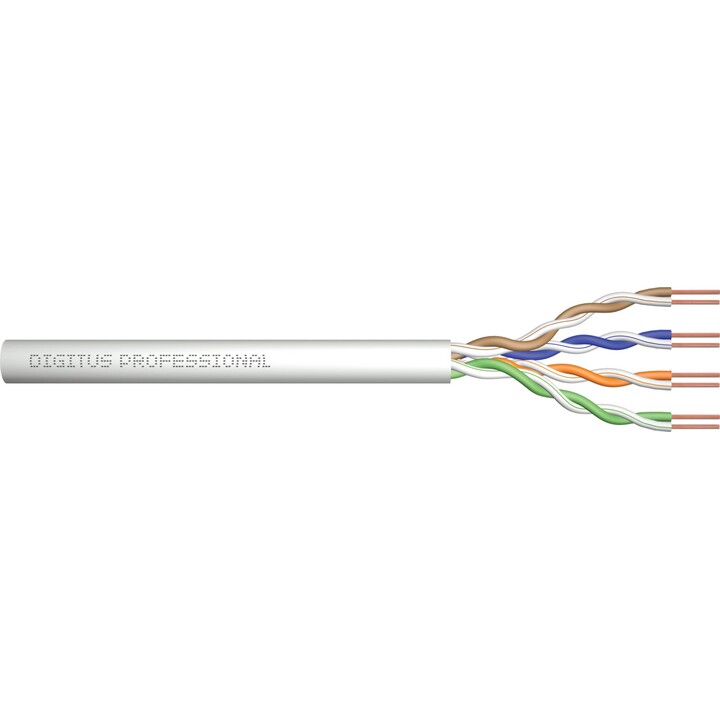

• Physical properties:
• Conductor: bare copper wire, AWG 24/1
• Total number of insulated conductors: 8, twisted into 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Shielding of individual pairs: None
• Global shielding: None
• Outer cover: Eca according to EN 50575; PVC
• Outer sheath thickness (nominal): 0.50 mm nominal
• Outer casing color: Gray (RAL 7035)
• Mechanical properties:
• Tension relief: 150N max.
• Dynamic radius of curvature: 8x AD mm min.
• Static radius of curvature: 4x AD mm min.
• Transport and storage temperature: -20 °C to +75 °C
• Operating temperature: -20 °C to +60 °C
• Installation temperature range: 0 °C to +50 °C
• Simplex outer diameter (nominal): 4.7 mm nominal
• Electrical properties:
• Impedance: 100±5 Ohm @ 1-600 MHz
• Capacitance: 40 pF/m nominal at 800 Hz
• Capacitance imbalance (pair-to-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• Loop resistance: 147 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: AC-Type 3
• Phase delay: 535 nS/100 m max.
• Timing: 20 nS/100 m max.
• Insulation class: "b" according to EN 50174-2
• NVP: 69%

Attributes

• Range: Twisted pair installation cables
• Category: CAT 5e
• Shielding: U/UTP, no shielding
• CPR: Eca
• Length: 100 m
• Gray
• Wrapping: PVC
• Structure: 4 x 2 AWG 24/1, solid twisted pair
