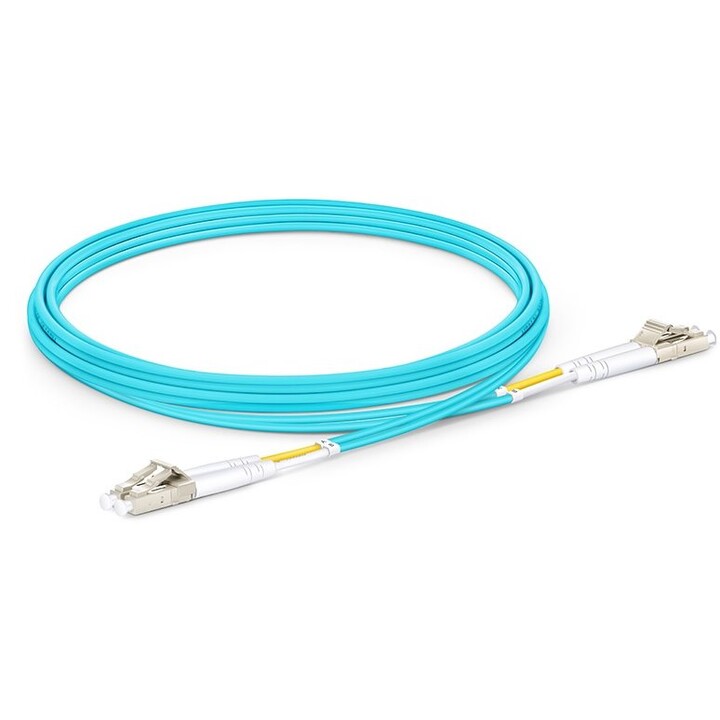

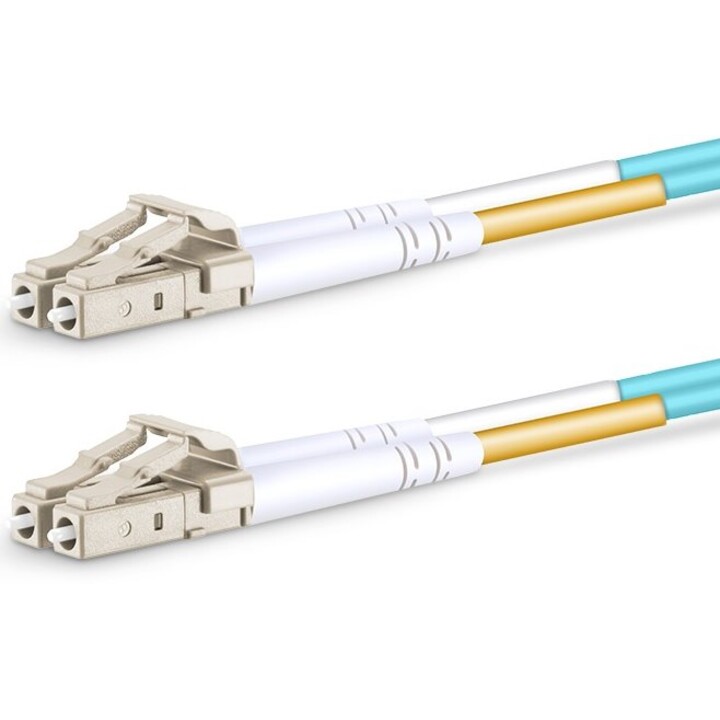

2.0-mm-Multimode-BIF-Glasfaserverbindungskabel OM4, 2 m
- Connector Type: LC Duplex
- Fiber Type: OM4 Multimode 50/125μm
- Cable Diameter: 2.0mm
- Length: 2 meters
- Insertion Loss: ≤0.5dB typical
2.0-mm-Multimode-BIF-Glasfaserverbindungskabel OM4, 2 m
The Panduit FN3Z2RLUUONM002 is a high-performance OM4 multimode fiber optic patch cable designed for demanding data center and enterprise network applications. With a 2.0mm tight-buffered cable construction and LC duplex connectors, it provides reliable connectivity for high-speed networks up to 100GbE. The OM4 fiber type supports longer link distances and higher bandwidth compared to OM3, making it ideal for backbone and server connections.
This 2-meter cable features low insertion loss and excellent return loss characteristics, ensuring minimal signal degradation and optimal network performance. The durable 2.0mm jacket provides flexibility for tight cable routing while maintaining protection against physical damage. Each cable is factory-terminated and tested to meet Panduit's stringent quality standards, guaranteeing consistent performance in critical network infrastructure.
| Brand | Panduit |
| Part Number | FN3Z2RLUUONM002 |
| Product Type | Fiber Optic Patch Cable |
| Fiber Mode | Multimode |
| Fiber Grade | OM4 |
| Core/Cladding Diameter | 50/125 μm |
| Connector Type | LC Duplex |
| Cable Length | 2 m |
| Cable Diameter | 2.0 mm |
| Insertion Loss | ≤0.5 dB (typical) |
| Return Loss | ≥20 dB |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC 60793-2-10, TIA-492AAAD |
