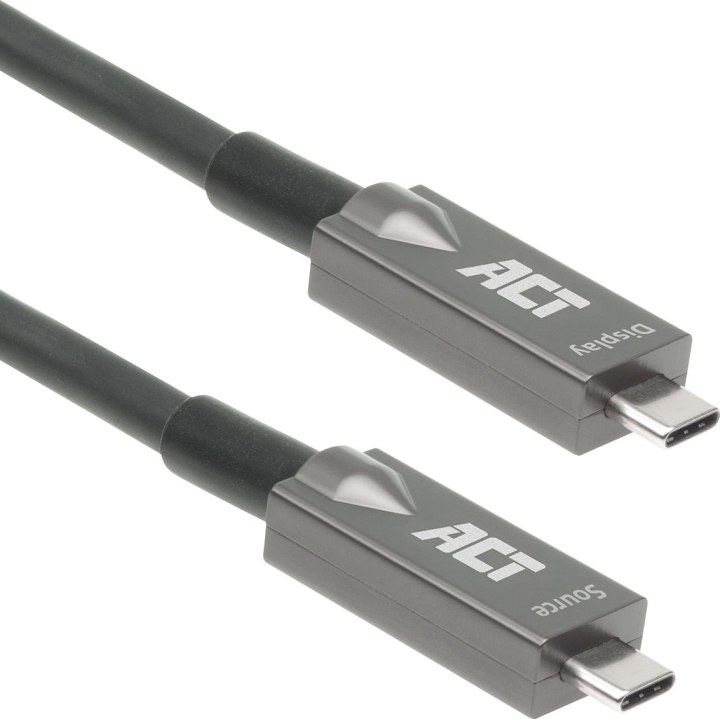

USB-C 3.2 Gen 2 Active Optical Cable (AOC) connection cable, 3m

The ACT AK4303 is a 3-metre USB-C 3.2 Gen 2 (3.1 Gen 2) Active Optical Cable (AOC) designed to connect USB-C devices over longer runs. Its hybrid fiber and copper conductor construction, combined with a shielded connector design, supports data transfer rates of up to 10 Gbit/s while keeping the cable flexible and just 6.5 mm in diameter.

Both ends feature straight male USB-C connectors, so the cable links USB-C to USB-C devices directly. It supports video output up to 3840 x 2160 pixels at 60 Hz and power delivery with an input voltage of 20 V and a maximum input/output current of 3 A, corresponding to the 60 W highlighted by the manufacturer.

Finished in black and grey with a round PVC jacket and 24/28 AWG conductors, the ACT AK4303 comes as 1 piece per package and is a practical choice for extending USB-C connections where a standard passive cable would struggle.

Características principales

• USB-C 3.2 Gen 2 (3.1 Gen 2) connection cable with 10 Gbit/s maximum transfer rate
• Active Optical Cable (AOC) with hybrid fiber and copper conductor
• 3 m length with straight male USB-C connectors on both ends
• Supports up to 3840 x 2160 pixels at 60 Hz
• 20 V input voltage and up to 3 A input/output current (60 W)
• Shielded connectors, round PVC jacket, 6.5 mm cable diameter
• Black and grey finish, 1 piece per package

Specifications

Preguntas frecuentes

What is an Active Optical Cable (AOC)?

The ACT AK4303 uses a hybrid fiber and copper conductor, which is what defines it as an Active Optical Cable. This construction is combined with shielded connectors and a round PVC jacket.

What data speed does this cable support?

It is a USB 3.2 Gen 2 (3.1 Gen 2) cable with a maximum transfer rate of 10 Gbit/s.

What resolution and refresh rate can it carry?

The cable supports a maximum resolution of 3840 x 2160 pixels at a maximum refresh rate of 60 Hz.

How much power can it deliver?

The specified input voltage is 20 V with a maximum input and output current of 3 A, matching the 60 W highlighted by the manufacturer.

Es para ti si...

• You need a 3 m USB-C to USB-C connection with straight male connectors
• You want USB 3.2 Gen 2 speeds of up to 10 Gbit/s
• You need 4K 3840 x 2160 support at 60 Hz
• You prefer an Active Optical Cable with hybrid fiber and copper construction
