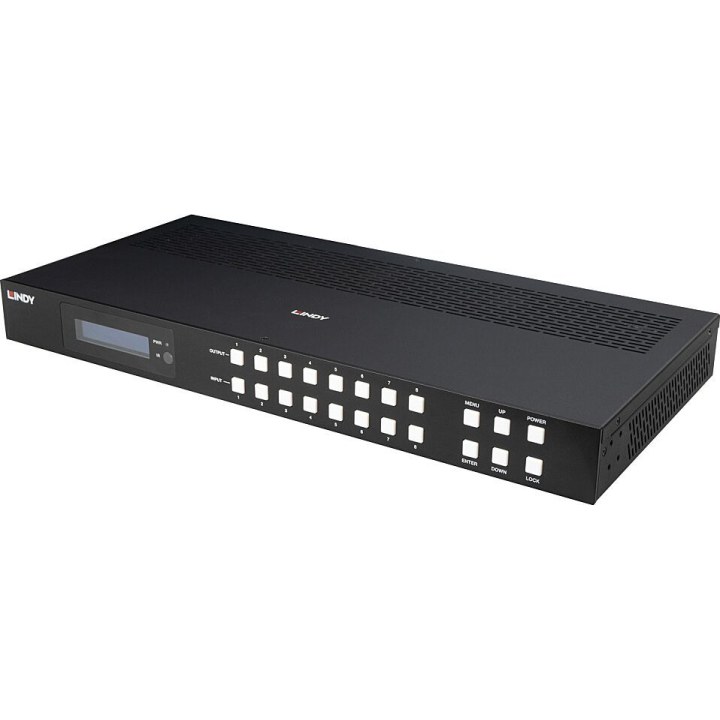

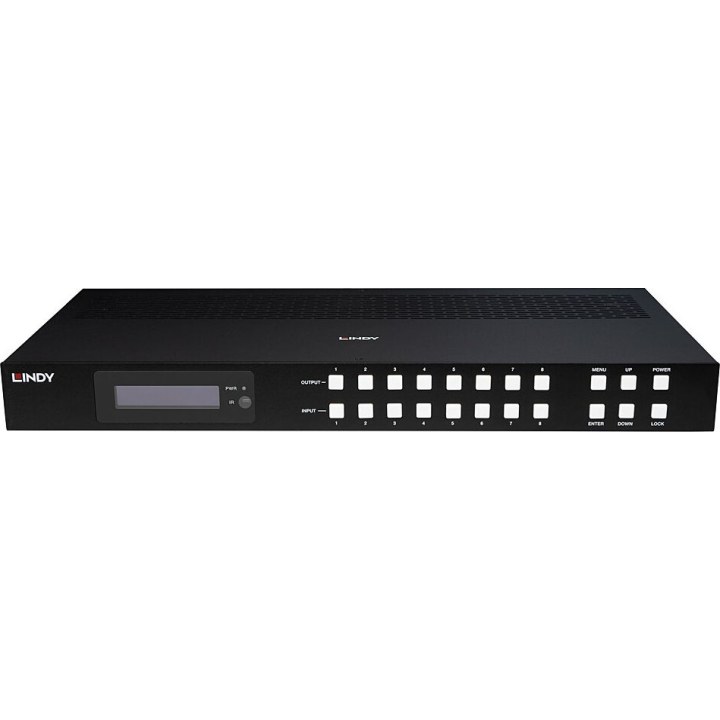

HDMI 8K60 MATRIX

The Lindy HDMI 8K60 Matrix is an AV matrix switcher designed to route eight HDMI sources to eight HDMI displays. With HDMI 2.1 and a bandwidth of 48 Gbit/s, it supports a maximum HDMI resolution of 7680 x 4320 pixels, making it suitable for high-resolution AV installations.

It supports HDCP 2.3 and High Dynamic Range, including HDR10 and Dolby Vision, and features built-in Dolby Atmos decoding. The unit comes in a black metal housing with a built-in display, and a remote control is included for convenient operation.

For integration and control, the matrix provides one Ethernet RJ-45 port and one RS-232 port. It measures 440 mm wide, 203 mm deep and 44.5 mm high, weighs 2.94 kg, and is supplied with IR and AC power cables, a user manual and mounting brackets.

Características principales

• 8 HDMI inputs and 8 HDMI outputs
• HDMI 2.1 with 48 Gbit/s bandwidth
• Maximum HDMI resolution: 7680 x 4320 pixels
• HDCP 2.3 and HDR support (HDR10, Dolby Vision)
• Built-in Dolby Atmos decoding
• Black metal housing with built-in display
• Ethernet RJ-45 and RS-232 control ports

Specifications

Preguntas frecuentes

How many HDMI devices can I connect?

The matrix provides 8 HDMI inputs and 8 HDMI outputs, allowing multiple sources to be routed to multiple displays.

What resolution does it support?

It supports a maximum HDMI resolution of 7680 x 4320 pixels with HDMI 2.1 and 48 Gbit/s bandwidth.

Does it support HDR and HDCP?

Yes, it supports High Dynamic Range including HDR10 and Dolby Vision, and HDCP version 2.3.

How can the matrix be controlled?

It includes a remote control and offers one Ethernet RJ-45 port and one RS-232 port for control integration.

Es para ti si...

• You need to route 8 HDMI sources to 8 HDMI displays
• You require 8K resolution, HDMI 2.1 and 48 Gbit/s bandwidth
• You need HDCP 2.3, HDR10 and Dolby Vision support
• You want a metal-housed unit with built-in display and remote control
