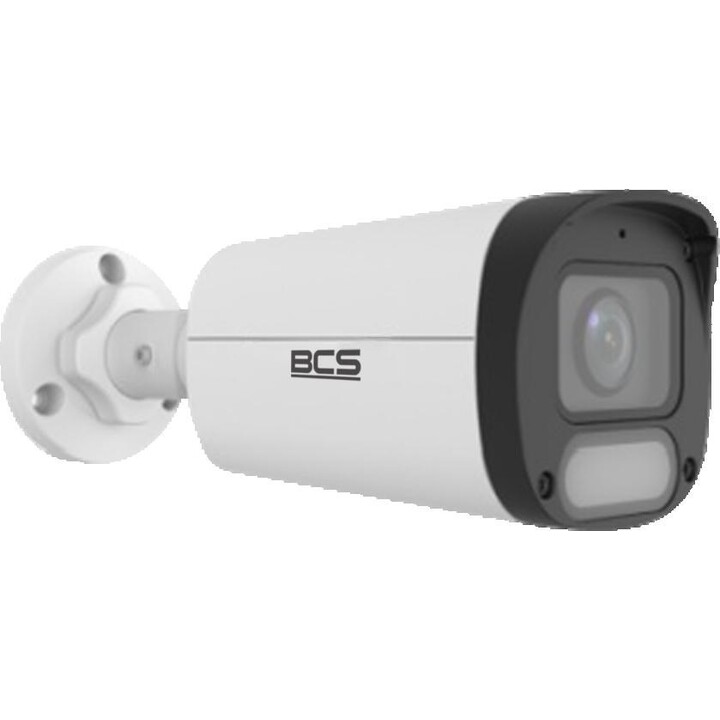

The BCS-P-TIP24FCL3-Ai1 is a 2MP IR bullet camera designed for outdoor surveillance with 24/7 color imaging. It features a 1/2.8" progressive scan CMOS sensor and a 2.8mm fixed lens, providing a wide 105° horizontal field of view. With built-in warm light and IR LEDs, it delivers clear color images even in low light conditions up to 30 meters.
This camera supports advanced AI analytics including human and vehicle detection, line crossing, and intrusion detection, reducing false alarms. It is housed in an IP67 weatherproof and IK10 vandal-resistant casing, ensuring reliable operation in harsh environments. The camera also supports H.265+ compression for efficient bandwidth and storage usage.
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2MP (1920x1080) @ 30fps |
| Lens | 2.8mm fixed, F1.6 |
| Field of View | Horizontal: 105°, Vertical: 58° |
| Minimum Illumination | 0.005 lux (color), 0 lux (IR) |
| IR Range | 30m |
| Warm Light Range | 30m |
| Day/Night | ICR auto switch |
| WDR | 120dB |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| AI Analytics | Human/vehicle detection, line crossing, intrusion, region entrance/exit |
| Audio | 1ch audio input, 1ch audio output |
| Alarm | 1ch alarm input, 1ch alarm output |
| Network | RJ45 10/100Mbps, PoE (802.3af) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to 60°C |
| Power Supply | DC12V ±25%, PoE (802.3af) |
| Power Consumption | ≤12W |
| Dimensions | Φ70mm × 186mm |
| Weight | 0.6kg |
