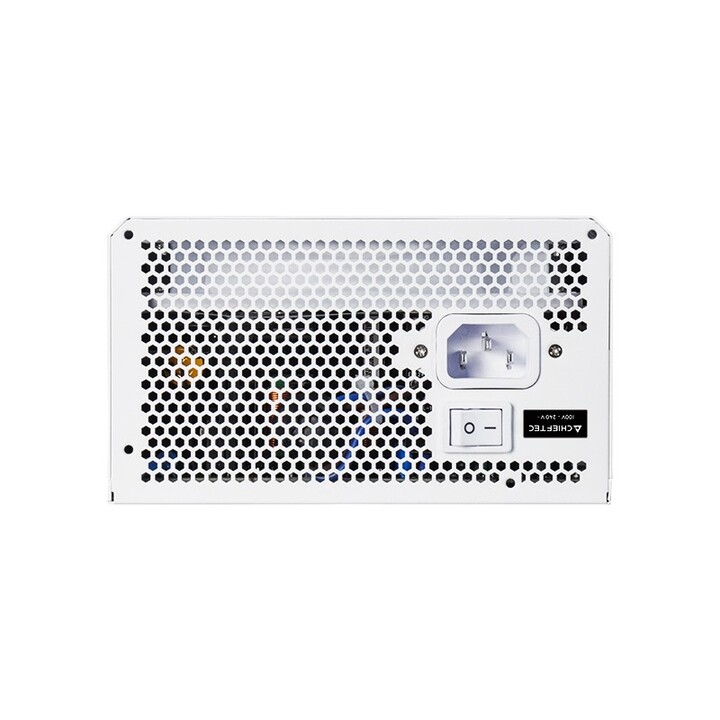

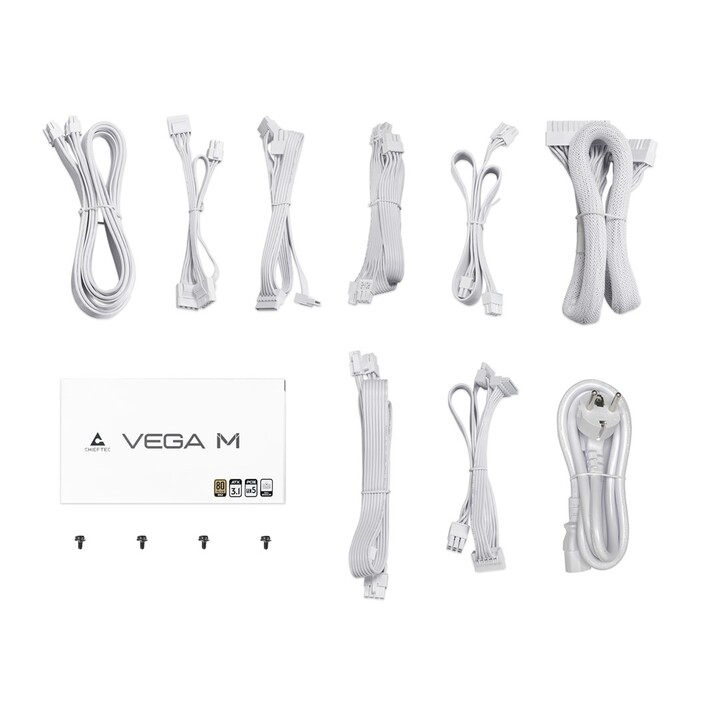

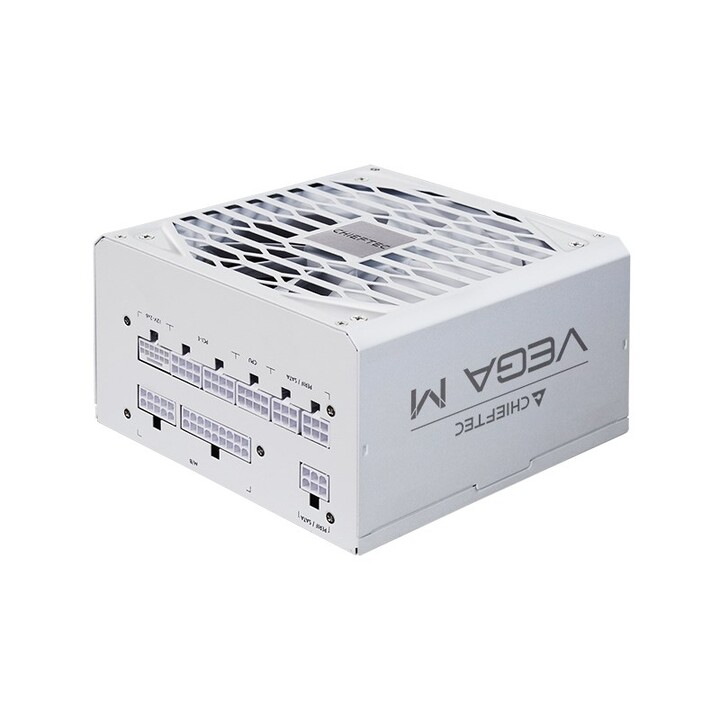

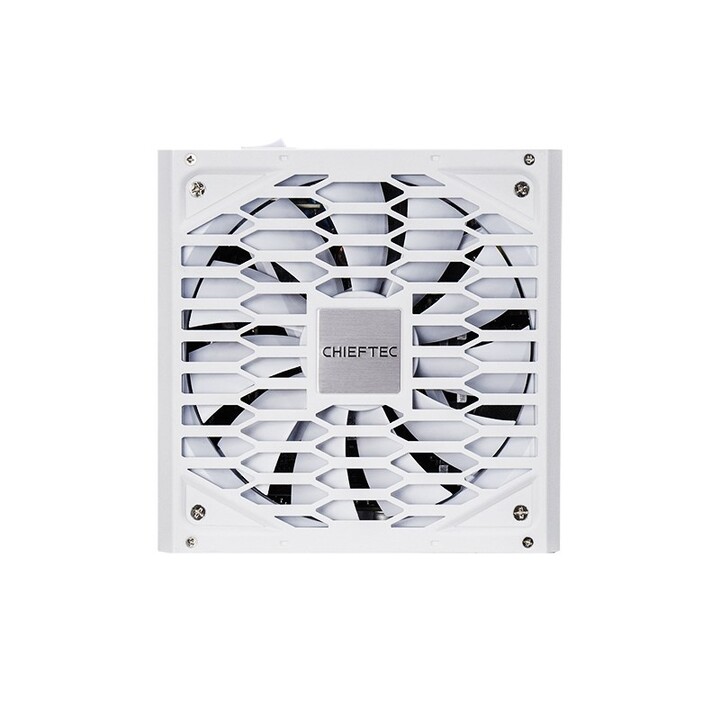

Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White
Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White

Chieftec Vega PPG-750-CW 750 W 24-pin ATX ATX White

Chieftec
Reference: PPG-750-CW
EAN: 0753263079107
Condition: New
€105.80
VAT included
Without tax: €87.44
  • Power: 750 W
  • Color: White
  • Form Factor: ATX
  • 24-pin main connector
Last items in stock
Share


Buy it now and receive it between Mon 5 and Wed 7 with GLS / UPS / DHL €5.99

Up to 3 years warranty 100% secure payment 14 days return

Regulatory approvals
Certification
Gold 80PLUS
Energy control
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Combined power supply (3.3 V)
100 W
Maximum output current (+5V)
20 A
Power factor correction (PFC)
Asset
Total power
750 W
Combined power supply (+5 V)
100 W
Maximum output current (-12V)
0.3 A
Maximum output current (+12 V1)
62.5 A
Maximum output current (+3.3V)
20 A
Weight and dimensions
Height
85 mm
Broad
150 mm
Weight
1.96 kg
Depth
150 mm
Packaging
Package weight
2.43 kg
Design
Product color
White
Cooling type
Asset
Fan diameter
13.5 cm
Lightning
Yeah
Ports and Interfaces
PCI Express connectors (6 + 2 pins)
4
PCI Express power connectors (12+4 pin)
1
ATX power connector (24 pins)
Yeah
CPU power cable length
65 cm
SATA power cable length
150, 400 mm
Number of SATA power connectors
6
Wiring type
Fully modular
Motherboard power supply
24-pin ATX
ATX power connector (20+4 pins)
Yeah
Motherboard power cable length
60 cm
Peripheral power cable length (Molex)
150, 400 mm
Power connectors (4 pin) peripherals (Molex)
3
CPU power connector (4+4 pins)
Yeah
PCI Express power connector cable length (12+4 pin)
600 mm
Performance
Bearing technology
FDB
80 PLUS Certification
80 PLUS Gold
ATX version
3.1
Power supply unit (PSU) form factor
ATX
Use with
personal computer

  • Brand
  • Reference
    PPG-750-CW
  • In stock
    2 Items
  • Condition
    New
  • EAN13
    0753263079107
  • MPN
    PPG-750-CW

  • Color
    White
  • Power
    750 W
  • Power range
    De 501 a 1.000 W
