Power Supply|CHIEFTEC|PPG-850-S|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-850-S

Product Description

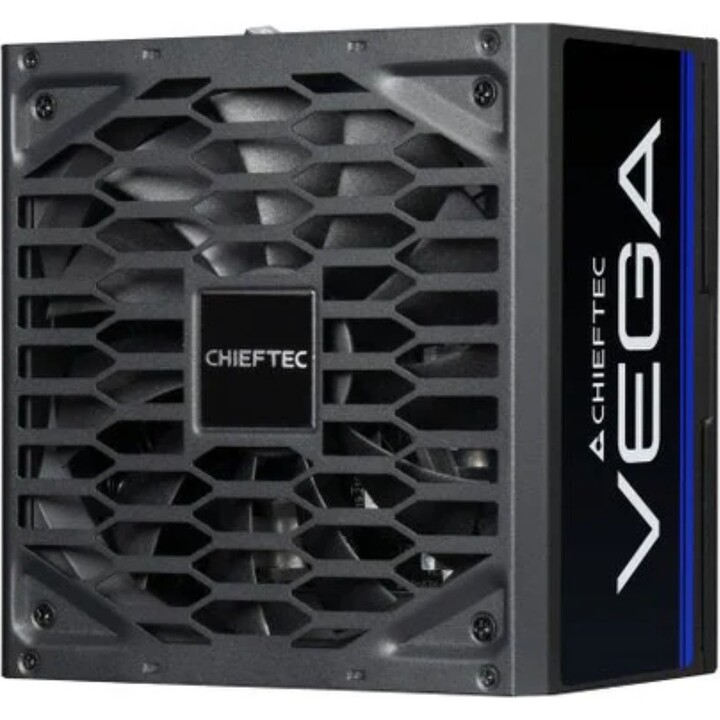

Chieftec Vega PPG-850-S Watt power supply unit 850 W 20+4 pin ATX Black

Chieftec Vega PPG-850-S Watt, 850 W, 100 - 240 V, Overcurrent, Overvoltage, Overheat, Short Circuit, Surge and Inrush Current Protection, 20+4 pin ATX, 60 cm, 400 mm

Key Product Features

850 W 100 - 240 V

Motherboard power connector: ATX 20+4 pin

PC ATX 80 PLUS Gold certified

Active 13.5 cm fan

Black color

Power control

Total power: 850 W

AC input voltage: 100 - 240 V

Power supply protection functions: Overcurrent, Overvoltage, Overheat, Short Circuit, Surge and Inrush Current Protection (SIP), Undervoltage

Ports and Interfaces

Motherboard power connector: ATX 20+4 pin

Motherboard power cable length: 60 cm

Number of SATA power connectors: 6

SATA power cable length: 400 mm

Peripheral power connectors (4-pin Molex): 3

Peripheral power cable length (Molex): 400 mm

EPS power connector (8-pin): Yes

EPS power connector (4+4 pin): Yes

PCI Express power connectors (6+2 pin): 4

PCI Express power connector (12+4 pin): 1

PCI Express (12+4 pin) cable length: 600 mm

PCI Express power cable length: 60 cm

CPU power connector (4+4 pin): Yes

CPU power cable length: 65 cm

ATX power connector (24 pin): Yes

ATX power connector (20+4 pin): Yes

Cabling type: Non-modular

Performance

80 PLUS Certification: 80 PLUS Gold

Usage: PC

Power supply form factor (PSU): ATX

ATX version: 3.1

Bearing technology: FDB

Design

Product color: Black

Cooling type: Active

Fan diameter: 13.5 cm

Number of fans: 1

Lighting: No

Regulatory Approvals

Certification: 80PLUS Gold

Weight and Dimensions

Weight: 2.07 kg

Packaging

Package weight: 2.54 kg
