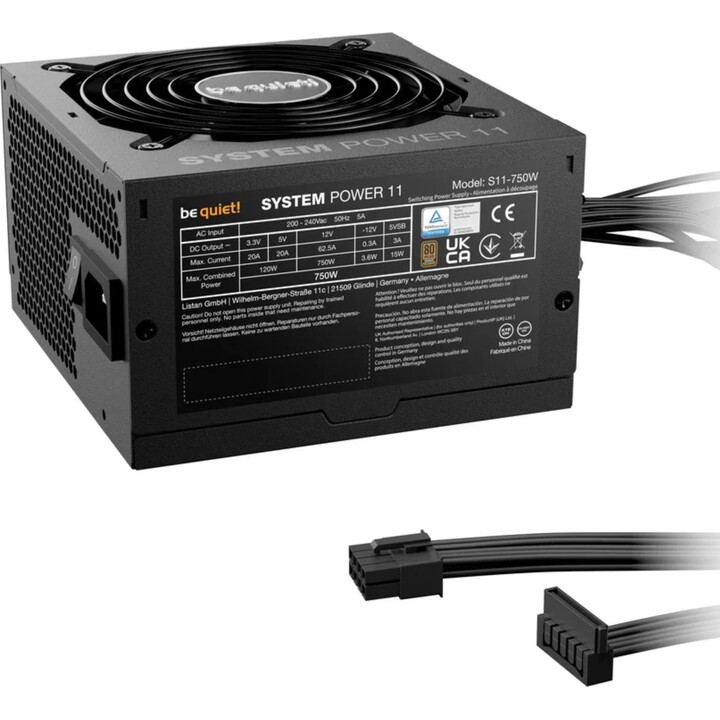

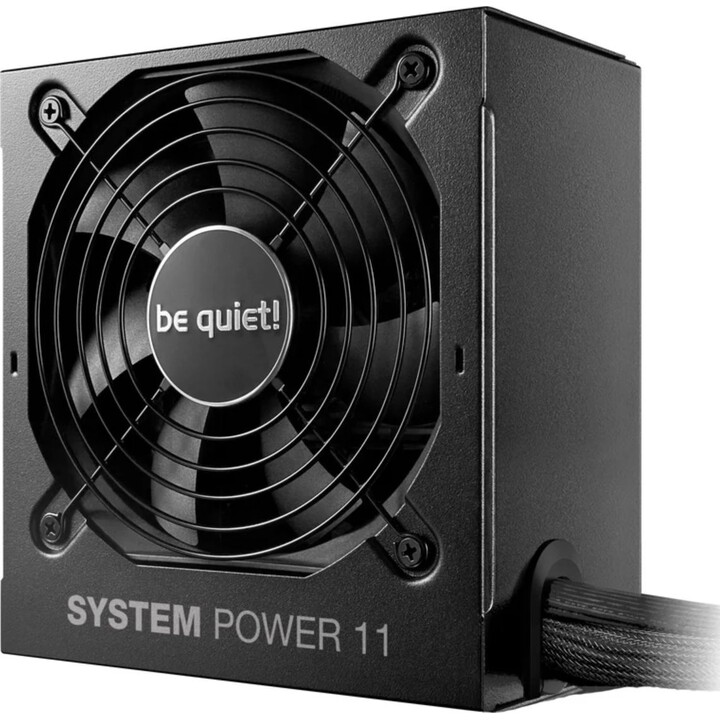

be quiet! System Power 11 750W ATX power supply black

Description

be quiet! System Power 11 750W power supply unit 20+4 pin ATX Black

be quiet! System Power 11 750W, 750 W, 200 - 240 V, 50 Hz, 4 A, 120 W, 750 W

Key product points

750 W 200 - 240 V 50 Hz

Motherboard power supply: 20+4 pin ATX

PC ATX 80 PLUS Bronze

Active 12 cm 0 - 2100 RPM

Black

Power control

Total power: 750 W

AC input voltage: 200 - 240 V

AC input frequency: 50 Hz

Input current: 4 A

Power factor: 0.98

Number of 12V rails: 1

Combined power (3.3V): 120W

Combined power (+12 V): 750 W

Combined power (+5 V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 15 W

Maximum output current (+3.3V): 20 A

Maximum output current (+12 V1): 62.5 A

Maximum output current (+5V): 20 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 3 A

Waiting time: 17.34 ms

Efficiency: 90%

Power protection functions: Overcurrent, Overvoltage, Overvoltage, Overheating, Short circuit, Surge & inrush, Undervoltage

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Number of SATA power connectors: 6

Peripheral power connectors (4 pin) (Molex): 1

EPS power connector (8-pin): Yes

PCI Express power connectors (6 + 2 pin): 3

PCI Express Power Connectors (12-pin): 1

CPU P4 connector (4-pin): 1

CPU power connector (4+4 pins): Yes

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS Bronze

Use with: PC

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

EPS version: 2.92

Noise level: 33.4 dB

Bearing Technology: Rifle

Mean time between failures: 100,000 h

Design

Product color: Black

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Fan speed: 0 - 2100 RPM

Integrated on/off switch: Yes

Regulatory approvals

Compliance with the Waste Electrical and Electronic Equipment (WEEE) Directive: Yes

Certificates of conformity: CB, CE, RoHS, TV mark, UKCA, WEEE

Weight and dimensions

Width: 150 mm

Depth: 86 mm

Height: 140 mm

Weight: 2.04 kg

Packaging

Package width: 195 mm

Package depth: 268 mm

Package height: 97 mm

Package weight: 2.4 kg

Packaging Type: Box

Technical details

Sustainability certifications: ENERGY STAR, ErP
