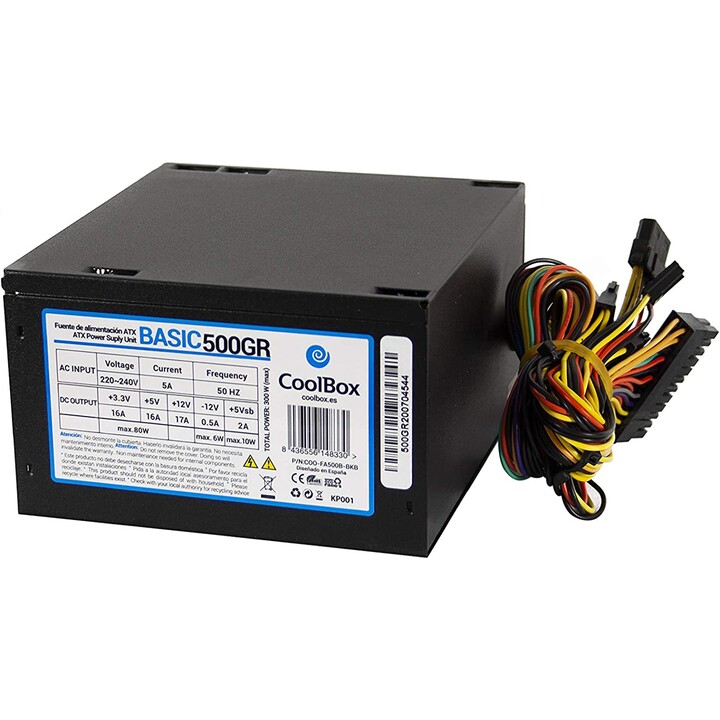

POWER SUPPLY 300W Coolbox 500GR BASIC 2SATA 12CM ATX BLACK

RoHS: Directive 2002/95/EC on the restriction of hazardous substances in the manufacture of electrical and electronic equipment, closely related to the waste electrical equipment directive.


ENERGY CONTROL
Full Power: 500W
AC input voltage: 220 - 240 V
AC input frequency: 50 Hz
Input current: 5A
Combined Power (3.3V): 80W
Combined Power (+5V): 80W
Combined power (-12V): 6 W
Combined power (+5 VSB): 10 W
Maximum output current (+3.3V): 16 A
Maximum output current (+12V): 17 A
Maximum output current (+5V): 16 A
Maximum output current (-12V): 0.5 A
Maximum output current (+5Vsb): 2 A

PORTS AND INTERFACES
Motherboard power supply: 20+4 pin ATX
Peripheral (4 pin) power connectors (Molex): 2
Number of SATA power connectors: 2
CPU P4 connector (4-pin): 1

PERFORMANCE
Purpose: PC
Power Supply (PSU) Form Factor: ATX

DESIGN
Product Color: Black
Cooling Type: Active
Fan diameter: 12cm
Number of fans: 1 Fan(s)

PACKAGING CONTENTS
Cables Included: AC

WEIGHT AND MEASUREMENTS
Width: 150mm
Depth: 140mm
Height: 86mm

PACKAGING
User Manual: Yes
Packaging Type: Box

TECHNICAL DETAILS
Sustainability certificates: RoHS
