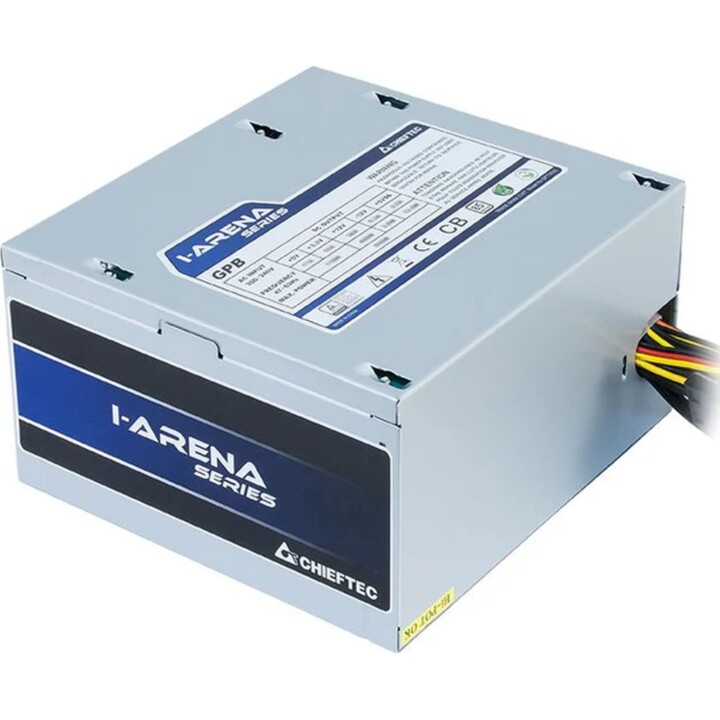

Chieftec GPB-500S power supply unit 500W 20 + 4 pin ATX PS / 2 Silver

Description

Chieftec GPB-500S Power Supply Unit 500 W 20+4 Pin ATX PS/2 Silver

Chieftec GPB-500S, 500 W, 200 - 240 V, 47 - 63 Hz, 4 A, Active, 110 W

Key product points

500 W 200 - 240 V 47 - 63 Hz

Motherboard power supply: 20+4 pin ATX

PC PS/2

Active 12 cm

Payment

Power control

Total power: 500 W

AC input voltage: 200 - 240 V

AC input frequency: 47 - 63 Hz

Input current: 4 A

Power factor: 0.9

Power Factor Correction (PFC) Type: Active

Combined power (3.3V): 110W

Combined power (+12 V): 456 W

Combined power (+5 V): 110 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 18 A

Maximum output current (+12 V1): 38 A

Maximum output current (+5V): 17 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 2.5 A

Efficiency: 85%

Power protection functions: Overvoltage, Overload, Short circuit, Undervoltage

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Number of SATA power connectors: 5

Peripheral power connectors (4 pin) (Molex): 3

PCI Express Power Connectors (6+2 pin): 1

Wiring Type: Non-modular

Performance

Use with: PC

Power Supply (PSU) Form Factor: PS/2

ATX version: 2.3

Design

Product color: Silver

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Fan Location: Top

Integrated on/off switch: Yes

Regulatory approvals

Certificates of conformity: RoHS

Weight and dimensions

Ancho: 140 mm

Depth: 150 mm

Height: 87 mm

Packaging

User Manual: Yes

Packaging Type: Box
