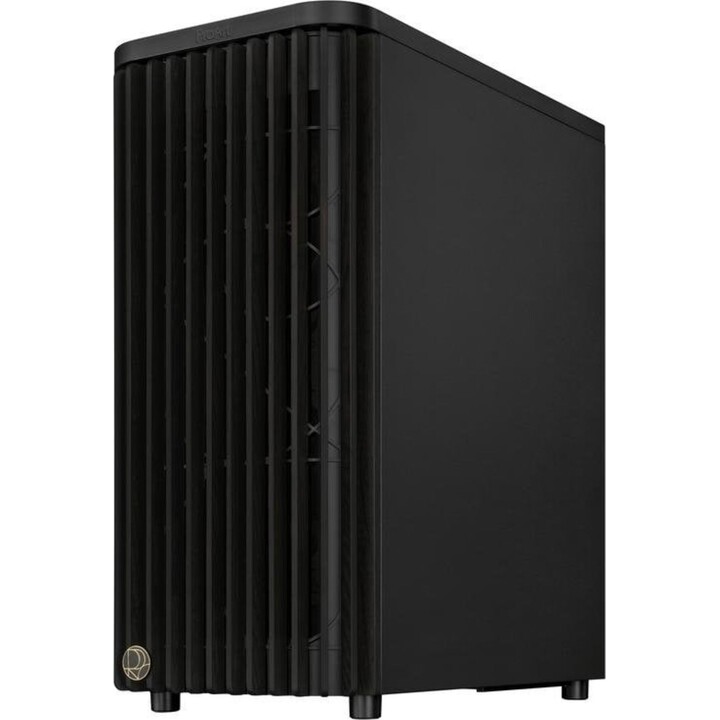

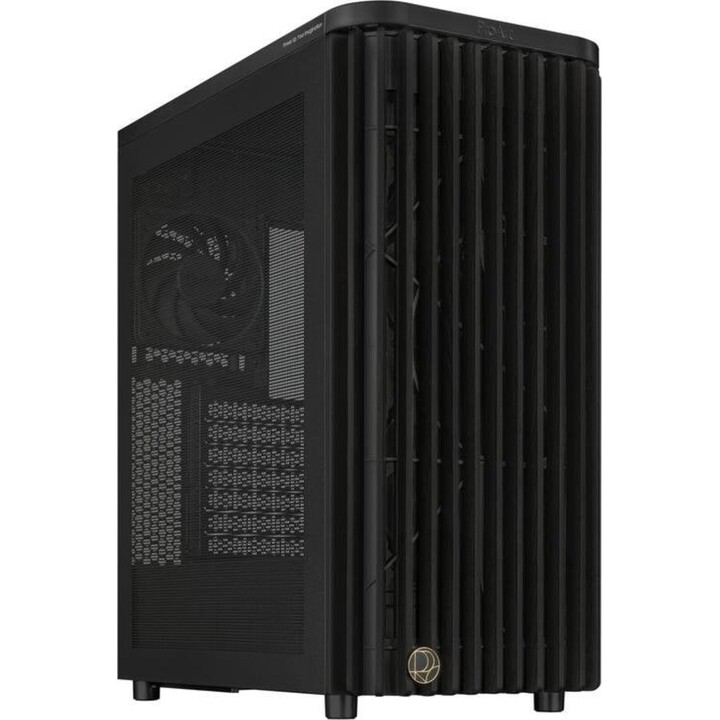

ASUS ProArt PA401 ATX case with mesh panel, wood finish, USB-C port
Discover the perfect balance between sustainable design and maximum thermal performance in your workstation or creative equipment.
Features:
Natural aesthetics and advanced cooling. The ASUS ProArt PA401 Wood Edition chassis stands out with its sophisticated FSC-certified ash wood front panel, which undergoes an exclusive six-step finishing process. This choice not only gives your system a unique look, but also reduces its environmental impact compared to traditional chassis.

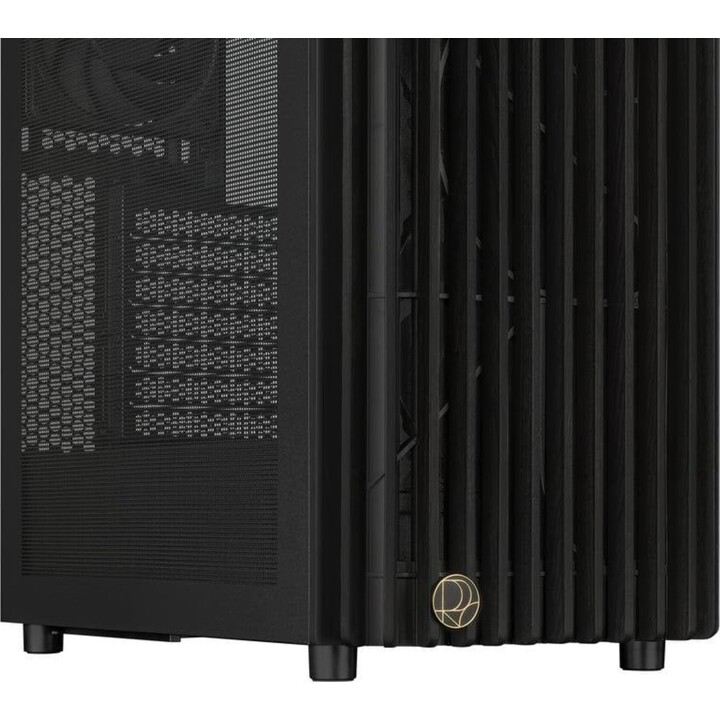

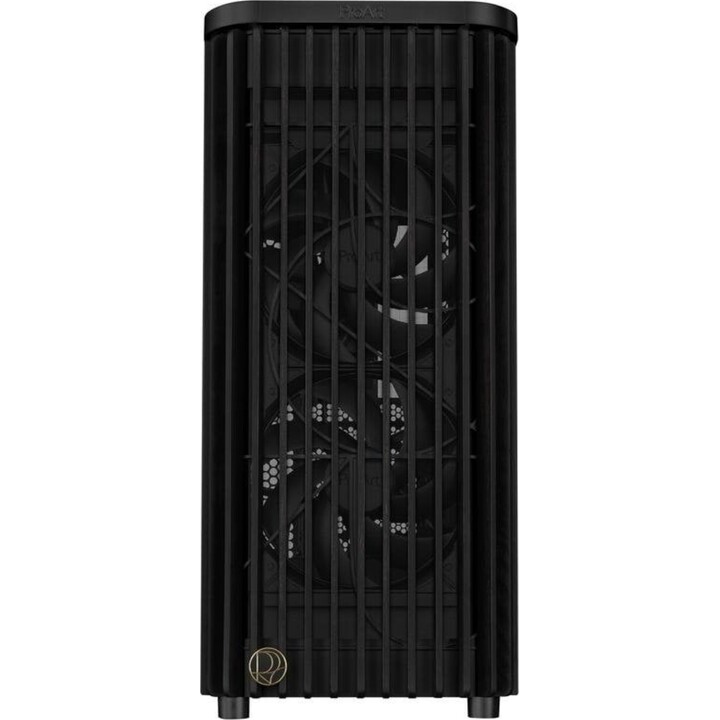

Optimized airflow. Thanks to the 33% porosity mesh front panel and high-performance 160mm front fans, cooling is excellent even when working with powerful CPUs and GPUs. The 120mm rear fan and integrated PWM controller ensure quiet operation, reliability, and maximum thermal efficiency — essential for high-level rendering, editing, and gaming professionals.

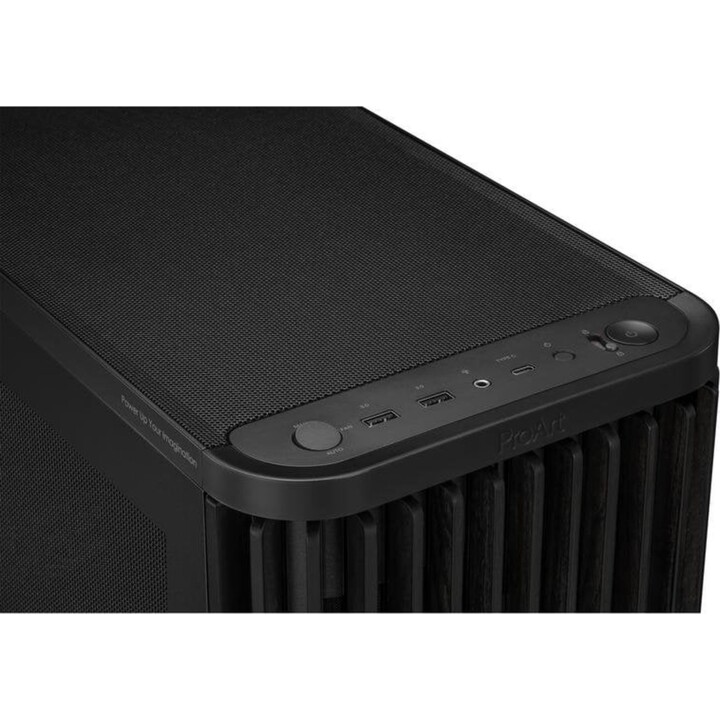

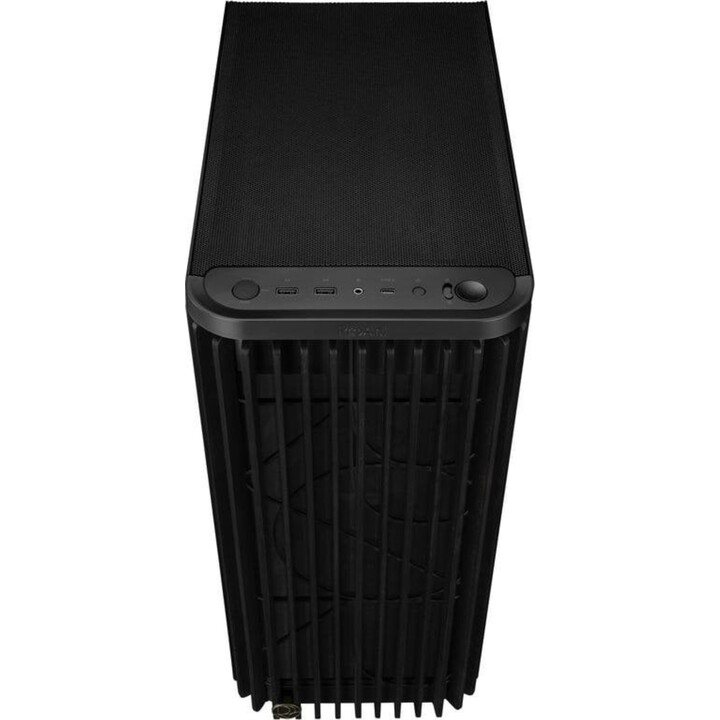

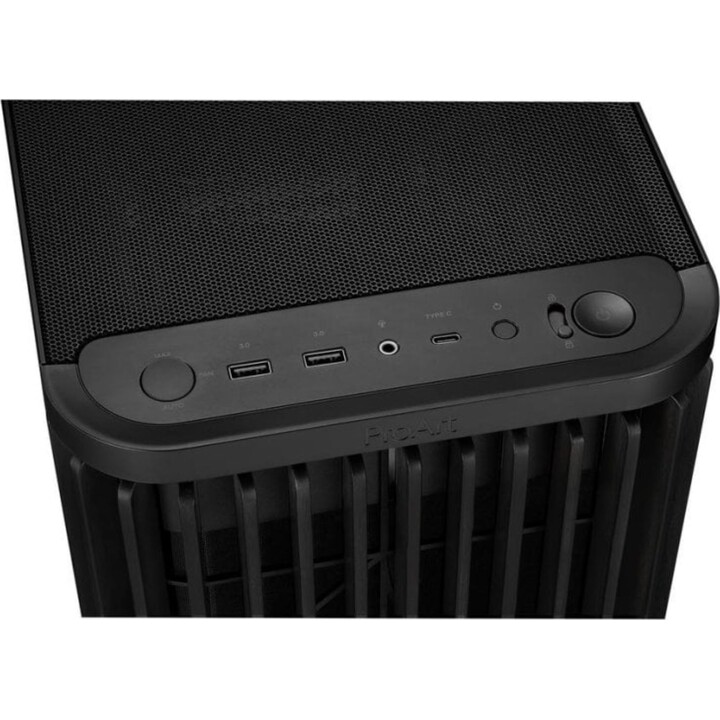

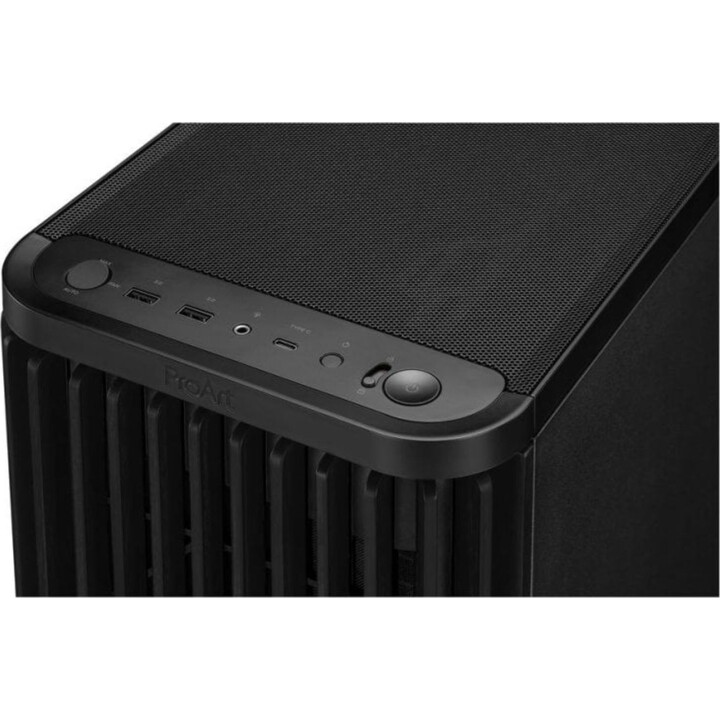

Versatility and advanced connectivity. Supports ATX motherboards and graphics cards up to 315 mm, features bays for 2.5" and 3.5" drives, expansion slots, a dust filter, and a front I/O panel with 20 Gbps USB-C, two USB-A 3.0 ports, and HD audio: complete coverage for creators, programmers, or engineers. The side panel includes a physical latch option for added security and is available in mesh fabric or tempered glass.
Flexible setup and easy maintenance. The spacious interior and convenient cable management options make it easy to install complex configurations and perform routine maintenance.
Choose a chassis that exudes design, sustainable development, and thermal reliability: take your professional and creative environment to the next level.
ASUS ProArt PA401 Wood Edition Specifications:
| Specification | Detail |
|---|---|
| Type | ATX PC Tower |
| Material | FSC certified ash wood and steel |
| Color | Black with wooden front |
| Compatible motherboards | ATX |
| Maximum graph length | 315 mm |
| Maximum height of the CPU heatsink | 160 mm |
| Maximum font size | 170 mm |
| Front fans included. | 2 x 160 mm PWM |
| Rear fan included. | 1 x 120 mm PWM |
| Dust filter | Yes |
| 3.5" bays | 2 |
| 2.5" bays | 2 |
| Expansion slots | 7 |
| USB-A 3.2 Gen1 ports | 2 |
| USB-C 3.2 Gen2x2 port | 1 (20 Gbps) |
| Audio | headset/microphone combo |
| Dimensions (W x D x H) | 225 x 412 x 503 mm |
| Weight | 8610 g |
| Power source | Not included |
Frequently Asked Questions - ASUS ProArt PA401 Wood Edition PC Case
Is this chassis compatible with the latest generation graphics cards?
Yes, it allows the installation of graphics cards up to 315 mm in length, making it ideal for most recent ATX models and professional configurations.
Is liquid cooling possible?
Yes, it is compatible with 120mm, 140mm, and 240mm radiators on top, making it easy to create high-performance custom setups for overclocking or heavy workloads.
Are the included fans adjustable?
Yes, all integrated fans have PWM control to adjust their speed according to the temperature, thus optimizing noise and airflow depending on whether you are using them professionally or for gaming.
Does the wooden facade require special maintenance?
No, the ash wood panel has undergone a special protective treatment against moisture and insects; it only needs regular basic cleaning, just like any high-quality surface on computer equipment.
-
