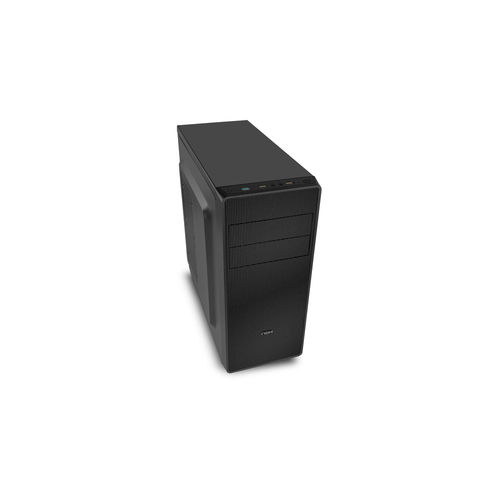

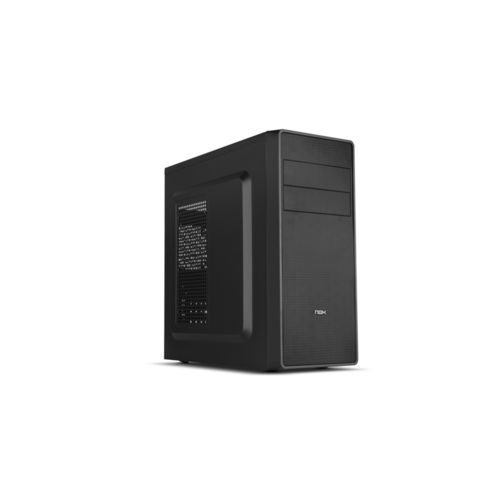

Coolbay RX
Nox expands its Coolbay series with the new RX, a chassis with multiple ventilation and compatibility options.

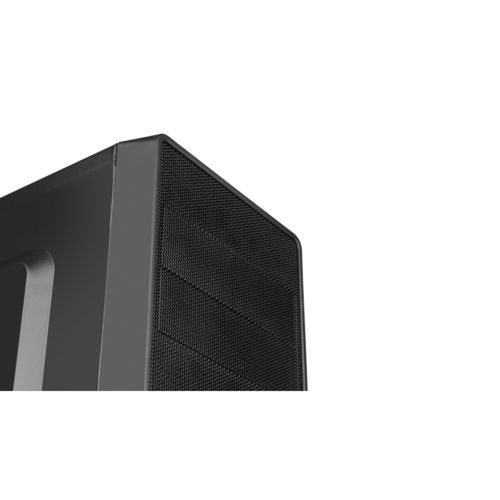

The Coolbay RX has been made of SGCC steel and designed in black both inside and outside. Its front panel with metal mesh will facilitate the entry of air to the interior of the equipment, in addition to providing it with elegance and sobriety.
Wide possibilities
Compatible with ATX and micro ATX motherboards, Coolbay RX can house a high-performance equipment: inside we can install up to four hard drives (two 3.5 and two 2.5 ), graphics up to 370 mm in length and coolers with a maximum height of 148 mm.
Optimal air flow
Coolbay RX has a 120mm front fan and the possibility of installing two more (one on the side and one on the rear). All this together with the front panel and the side grill, will allow an optimal air flow inside the equipment.
DESIGN
Type: PC
Material: Mesh, SGCC
Color of product: Black
Supported motherboard factor forms: ATX, micro ATX
Number of 3.5 ports: 2
Number of 5.25 ports: 1
Side window: No
Number of 2.5 bays: 2
Number of internal 3.5 bays: 2
Number of external 5.25 receptacles: 1
Number of expansion slots: 7
Reset button: Yes
On / off button: Yes
LED indicators: Yes
Coolest CPU Max Height: 14.8cm
Maximum graphics card length: 37 cm
POWER SUPPLY
Power supply included: No
Power supply location: Top
PORTS AND INTERFACES
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio input: No
Audio output: Yes
COOLING
Front Fans Installed: 1x 120mm
Number of supported front fans (max.): 1
Supported Front Fans Diameter: 120mm
Number of side fans supported (max.): 1
Supported Secondary Fans Diameter: 120mm
Number of rear fans supported: 1
Supported Rear Fans Diameter: 80mm
STORAGE MEDIA
Supported hard drive sizes: 2.5,3.5
WEIGHT AND MEASUREMENTS
Width: 195mm
Depth: 420mm
Height: 410 mm
Weight: 3 kg
Material thickness: 0.5mm
