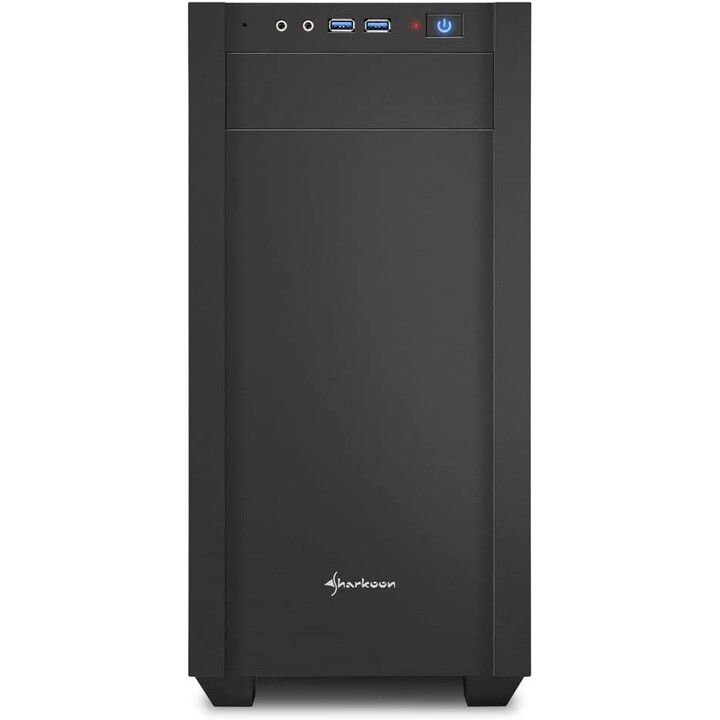

Sharkoon S1000 Black

The S1000 is a compact PC case that stands out with a new concept. For the first time, a micro-ATX box incorporates a tunnel at the bottom of the box. The tunnel allows for discrete installation of the power supply and hard drives. In this way, the interior of the box is easily kept in order, providing optimal air circulation, also possible thanks to the ventilation slits in the tunnel.

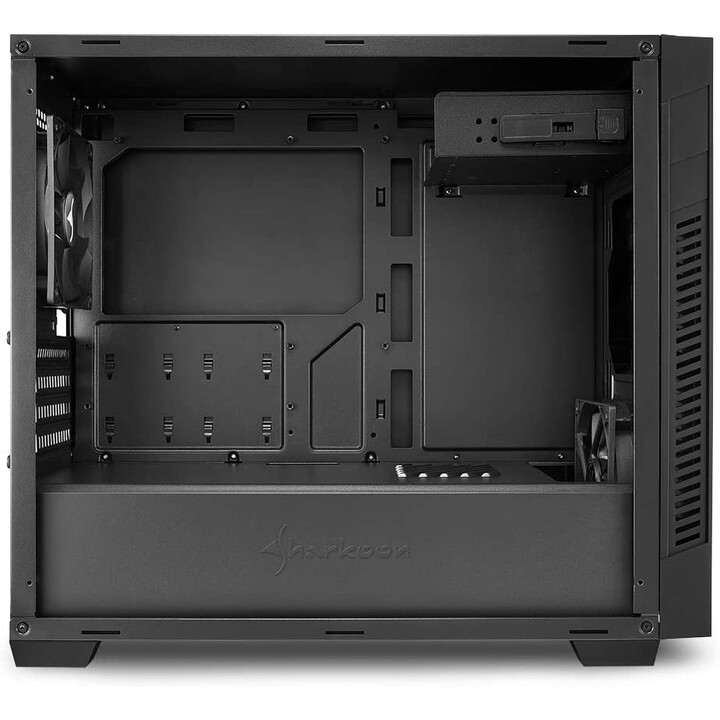

New concept of the interior. The tunnel in the bottom panel of the S1000 allows for the orderly installation of the power supply along with its wiring. Here they find space next to the HDD / SSD box - also inside the tunnel - power supplies with a maximum length of 24 cm. Thanks to the extra long slots, the box can be moved and located in the required position. Multiple cable passages allow for neat concealment of the rest of the wiring behind the motherboard tray.

Optimal air flow. One 120mm fan comes pre-installed behind the S1000's front panel and one onhe rear panel. If required, a 240mm radiator - or even a 280mm radiator - can be installed by removing the mount from storage units. If we prefer additional fans, they will find space in the side panel.

Various options for data storage units. The front panel of the S1000 comes with a removable mount for 5.25 "drives. Here, the 5.25" front cover with a 3.5 "opening allows installation of an external 3.5" device. Two 3.5 "HDDs or two 2.5" SSDs will find space in the box for HDD / SSD. Two more than 2.5 "drives can be attached behind the motherboard tray.

Large space also for large components. Not only data storage units will find enough space on the S1000. Although the box is very compact, you can install graphics cards, for example, with a maximum length of 40 cm, or mount a radiator on the front.

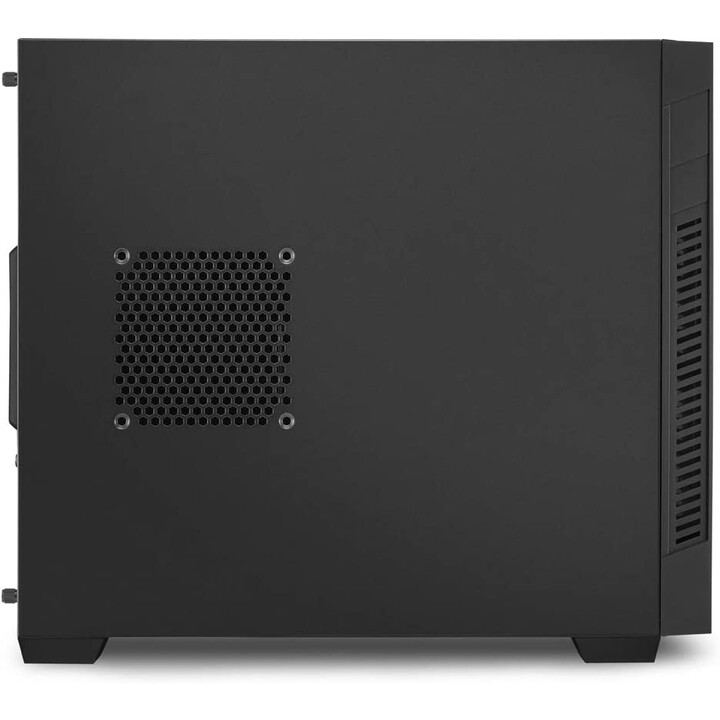

Quick access from all sides. The S1000's side panels are attached with thumbscrews and can be easily removed without the use of tools. The cordless front panel is easily removed thus simplifying unit installation as well as cleaning the front dust filter.

Compatibility

Motherboard

Mini-ITX, Micro-ATX

Max. graphics card length

40 cm

Max. CPU cooler height

15,5 cm

Max. power supply length

24 cm

Max. radiator height incl. fan (front)

5,9 cm
