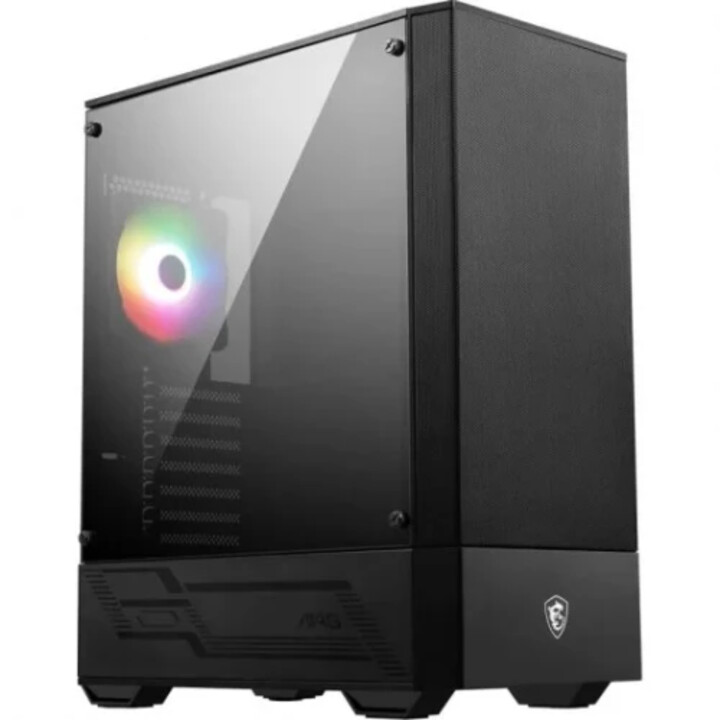

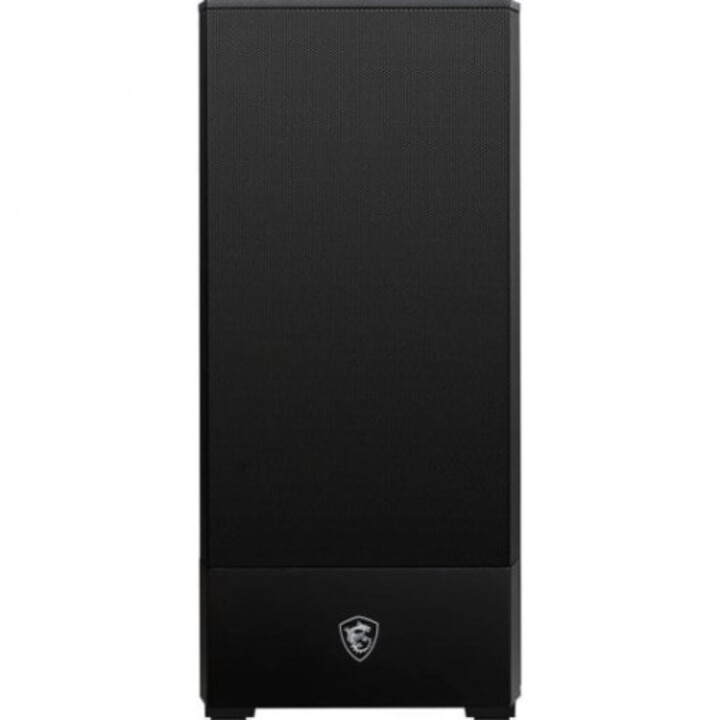

Msi Mag Forge M110r Airflow Case
Msi Mag Forge M110r Airflow Case
The MSI MAG Forge M110R is a mid-tower gaming case designed for optimal airflow and cooling performance. Its mesh front panel allows unrestricted air intake, while the tempered glass side panel lets you display your build with pride. The case comes with four pre-installed 120mm ARGB fans (three front, one rear) that provide excellent airflow out of the box, and the fan hub supports up to six fans for expansion.
With support for ATX, Micro-ATX, and Mini-ITX motherboards, the MAG Forge M110R offers flexible component compatibility. It can accommodate CPU coolers up to 160mm tall, graphics cards up to 330mm long, and power supplies up to 200mm. The front I/O panel includes two USB 3.2 Gen 1 Type-A ports, one USB 2.0 port, and audio jacks for convenient connectivity. Cable management is simplified with dedicated routing channels and Velcro straps.
| Form Factor | Mid-Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Side Panel | Tempered Glass |
| Pre-installed Fans | 4x 120mm ARGB (3 front, 1 rear) |
| Fan Support | Front: 3x 120mm / 2x 140mm, Top: 2x 120mm / 2x 140mm, Rear: 1x 120mm |
| Radiator Support | Front: 240mm / 280mm, Top: 240mm / 280mm, Rear: 120mm |
| Max CPU Cooler Height | 160mm |
| Max GPU Length | 330mm |
| Max PSU Length | 200mm |
| Drive Bays | 2x 3.5" (internal), 2x 2.5" (internal) |
| Front I/O | 2x USB 3.2 Gen 1 Type-A, 1x USB 2.0, Audio In/Out |
| Dimensions (W x H x D) | 210 x 480 x 420 mm |
| Weight | 6.5 kg |
-
ColorBlack
| Brand | MSI |
|---|---|
| Country | Taiwan |
| Address of origin | o. 69, Lide Street, Zhonghe District, New Taipei |
| EU responsible person | MSI Computer Europe B.V. |
| Address | Science Park Eindhoven 5706 5692 ER Son, Netherlands |
| [email protected] | |
| Phone | 34902123123 |
