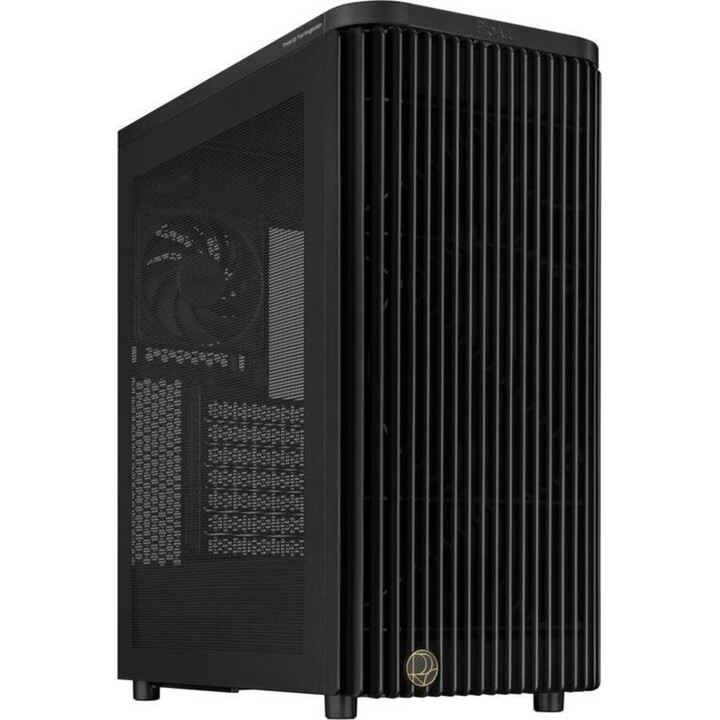

Asus ProArt PA401 ATX PC Tower Computer Case with Mesh Panel and Optimized Airflow
Discover the perfect balance between aesthetics, cooling and organization in the Asus ProArt PA401 case , designed for professional and creative environments.
Asus ProArt PA401 case features

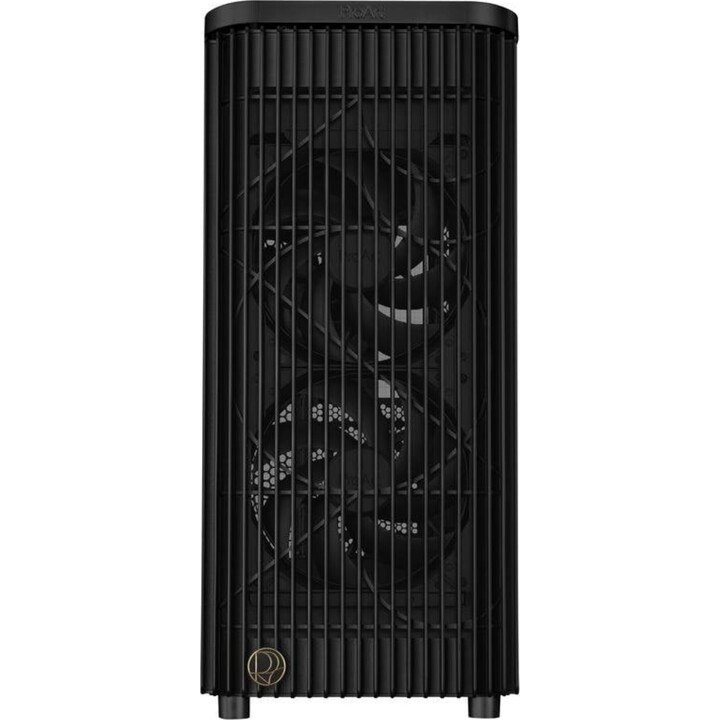

Optimized for superior airflow : Thanks to its mesh front panel and large diameter fans (2 x 160 mm front and 1 x 120 mm rear), the PA401 guarantees efficient and quiet cooling, ideal for creators, designers, and developers who demand maximum thermal performance.
Professional and flexible design : Its robust and compact chassis, combined with advanced cable management, allows for quick and tidy assembly. The side panel is secured with a physical lock, providing extra security against unauthorized tampering, ideal for shared workspaces or home environments.

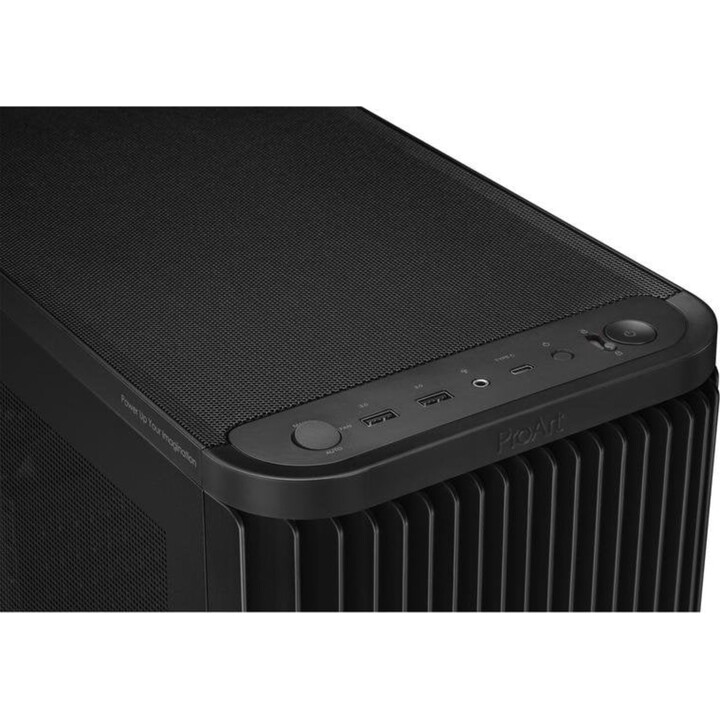

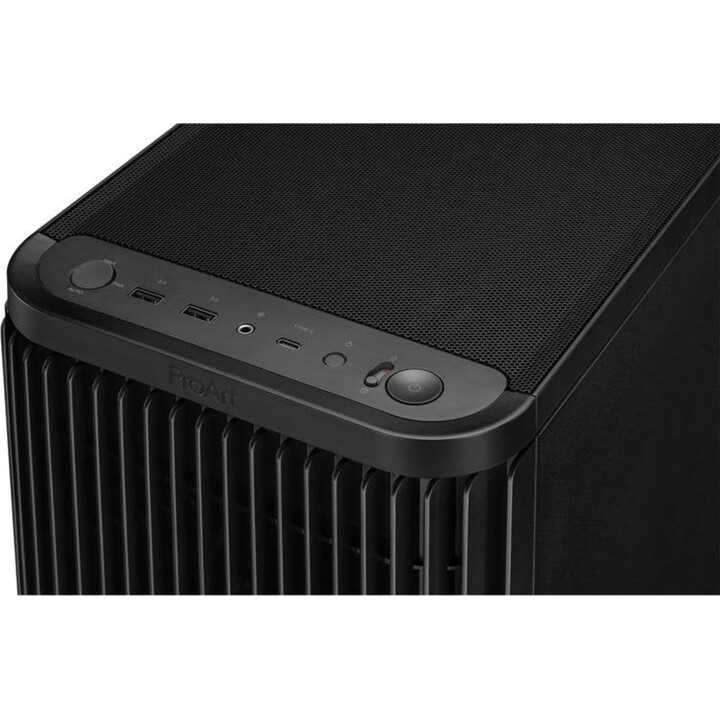

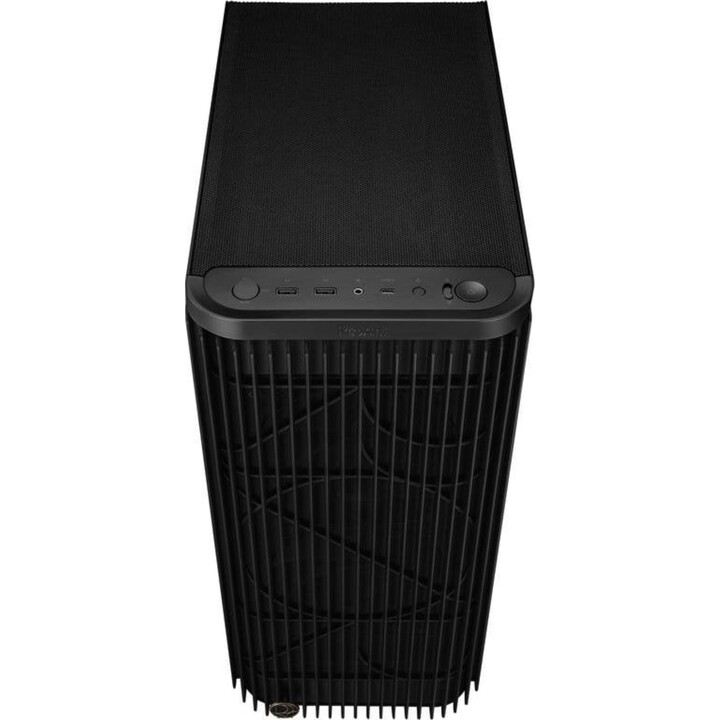

Advanced connectivity and ease of use : Front panel with USB-C 20 Gbps, two USB-A 3.0 ports, HD audio and PWM control, designed for users who demand immediate access to peripherals and maximum transfer speed.
Compatible with high-performance hardware : Supports ATX motherboards, graphics cards up to 315 mm, and 170 mm power supplies. The fans support PWM modulation, allowing you to customize noise and temperature according to intensive editing, rendering, or gaming use.
Customization options : Metal or tempered glass side panel, and option with mesh grille to improve airflow; great versatility for enthusiasts who value performance and aesthetics.
The Asus ProArt PA401 is the ideal choice if you want to design, create, or work on a well-cooled, discreet, and easy-to-maintain PC. Build your system with confidence and reach the next professional level.
What kind of users will benefit Photographers, designers, developers, and anyone seeking maximum thermal efficiency and internal organization.
Asus ProArt PA401 case specifications
| Specification | Detail |
|---|---|
| Motherboard format | ATX |
| Fans included | 2 x 160 mm (front), 1 x 120 mm (rear) |
| front fan bracket | Up to 2 x 140 mm / 2 x 160 mm |
| top fan support | Up to 2 x 120 mm / 2 x 140 mm |
| Internal bays | 2 x 3.5" / 2 x 2.5" |
| Expansion slots | 7 |
| Maximum CPU heatsink height | 160 mm |
| Maximum GPU length | 315 mm |
| Maximum PSU length | 170 mm |
| Front USB ports | 2 x USB 3.2 Gen 1 Type A, 1 x USB 3.2 Gen 2x2 Type C |
| Audio connectors | HD Headphone/Microphone Combo |
| Cable management system | Yes, with built-in clips |
| Dust filters | Yeah |
| Dimensions (W x D x H) | 225 x 412 x 503 mm |
| Weight | 8.61 kg |
| Power supply | Not included |
FAQs - Asus ProArt PA401 case
Is it compatible with large-format graphics cards?
Yes, it supports graphics cards up to 315 mm in horizontal position and up to 105 mm thick in vertical mounting.
Can I install liquid cooling on top?
Yes, radiators up to 240 mm can be mounted on top for liquid cooling.
Does the box include a power supply?
No, the power supply is not included and it supports ATX models up to 170 mm in length.
What customization options does the side panel offer?
You can choose between a metal panel, tempered glass, or mesh panel to optimize between durability, aesthetics, or airflow.
-
