Asus ProArt PA401 MTL PWM BLACK Case

Description

ASUS ProArt PA401 - Metal Panel Black

ProArt PA401 Metal Panel

Natural Elegance, Optimal Airflow

The ProArt PA401 Wood Edition features a wood front panel that creates a distinctive and elegant style while promoting sustainability. The wood used is Forest Stewardship Council? (FSC?) certified, and it is finished using a six-stage process. The case also features optimal integrated cooling, with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, allowing for optimal airflow.

Modern aesthetics, optimal airflow

Designed to offer optimal airflow and an organized, efficient layout, the ProArt PA401 is ideal for home offices. With two pre-installed 160mm front fans and a 120mm rear fan, it also delivers reliable thermal performance. Additionally, this case is designed for easy PC building, including a panel lock on the left side, a removable power supply bracket, and integrated cable clips on the rear.

Exceptional cooling performance

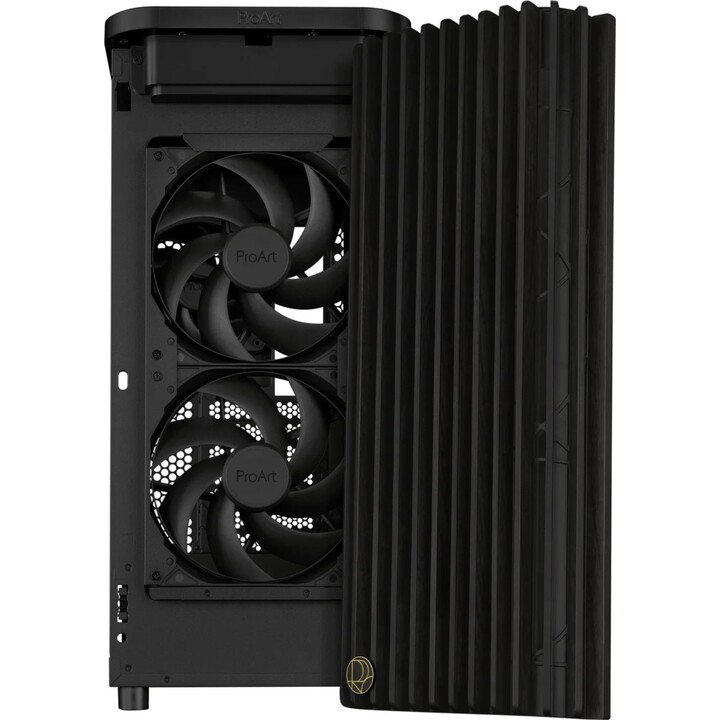

The built-in dual 160mm front fans efficiently deliver up to 138 CFM of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and a 120mm rear fan with PWM control deliver optimal airflow, low noise and vibration, and high reliability.

Flexible and fast I/O

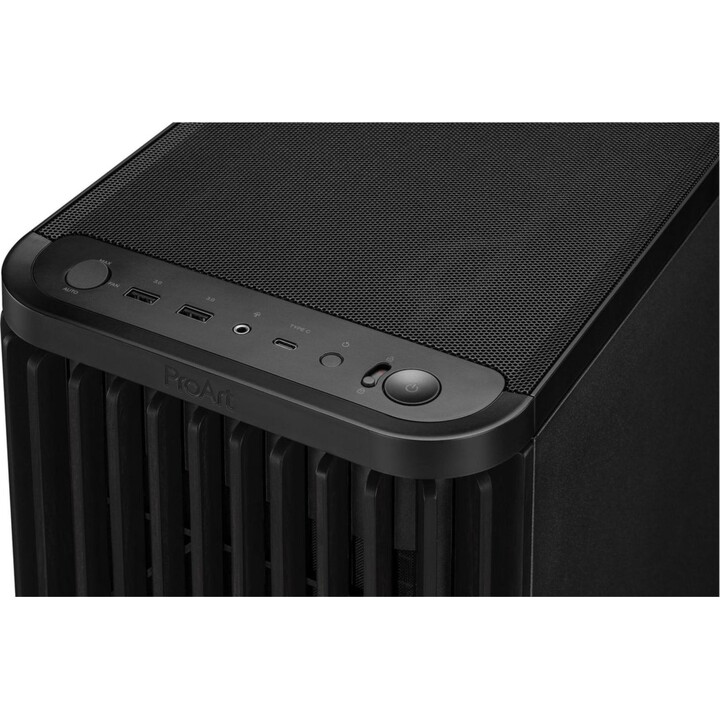

Connectivity options are easily accessible via the front I/O panel, including a dual-panel PWM control, a 20 Gbps USB Type-C? port, two USB-A 3.0 ports, HD audio, and a power and reset button lock.

Easy installation for assemblers

The ProArt PA401 optimizes the PC building experience, offering improved functionality with user-centric features.

The left side panel can be secured with a physical latch to prevent intrusion.

Image for illustrative purposes only

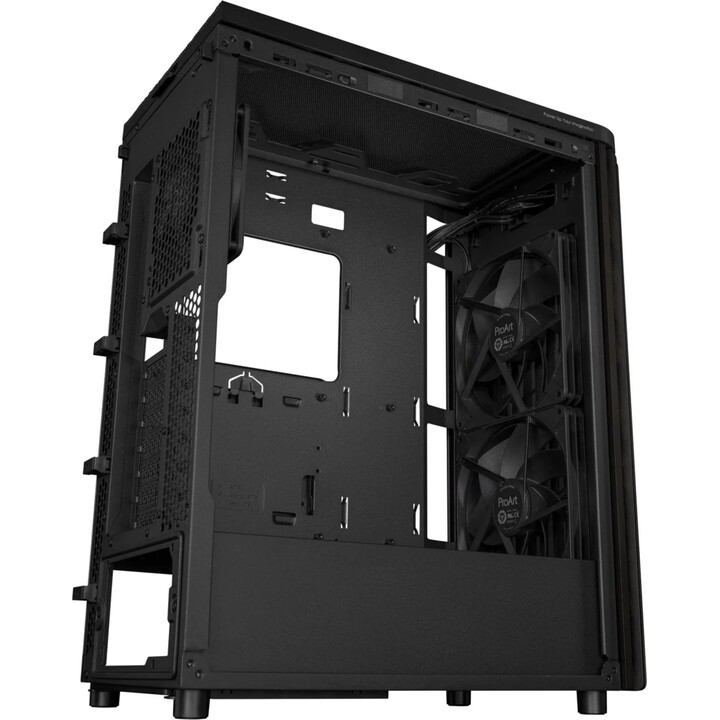

Compact shape, spacious interior

The ProArt PA401 features two pre-installed 160mm front fans and supports horizontal and vertical mounting of the graphics card.

Graphics card compatibility

Supports 2-way graphics card installation

Vertical thickness up to 105 mm

Image for illustrative purposes only

Up to 315 mm horizontal length

Image for illustrative purposes only

Versatile options

To accommodate different builders' preferences, the PA401 offers more customization options. The metal side panel version focuses on durability, while the tempered glass version offers durability while providing a window to showcase the interior aesthetics. Additionally, the mesh side panel improves airflow efficiency and thermal performance.

Key product points

Superior Thermals: The unique dual 160 x 32 mm front ring fan blades deliver up to 138 cfm of airflow

Extensive I/O: Locking power and reset buttons and dual-stage PWM control; 20Gbps USB Type-C? port

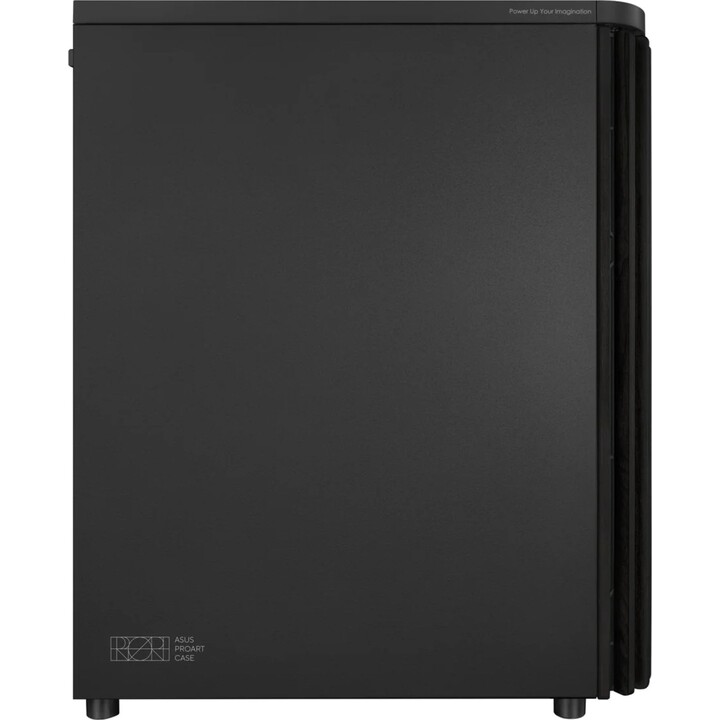

Metal Side Panel: Durable sheet steel side panels create a sleek black finish

Easy Assembly: Locking left side panel, detachable PSU bracket, and integrated rear cable clips for hassle-free installation

Design

Material: Metal

Type: PC

Product color: Black

Supported motherboard form factors: ATX

Number of 3.5" ports: 2

Number of 2.5'' bays: 2

Number of expansion slots: 7

Dust filter: Yes

On/Off button: Yes

Maximum height of CPU cooler: 16 cm

Maximum graphics card length: 31.5 cm

Maximum PSU length: 17 cm

Power supply

Power supply included: No

Ports and Interfaces

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2

Headphone/Microphone Output Combo Port: Yes

Number of USB 3.2 Gen 2x2 Type C ports: 1

Cooling

Front fans installed: 2x 160 mm

Number of front fans supported (max.): 2

Supported front fan diameter: 140,160 mm

Rear fans installed: 1x 120 mm

Number of rear fans supported: 1

Supported rear fan diameter: 120 mm

Number of top fans supported: 2

Supported upper fan diameters: 120,140 mm

Compatible sizes with upper radiator: 120,140,240 mm

Pulse Width Modulation (PWM) Compatible: Yes

Storage media

Supported hard drive sizes: 2.5, 3.5"

Weight and dimensions

Width: 225 mm

Depth: 412 mm

Height: 503 mm

Weight: 8.61 kg
