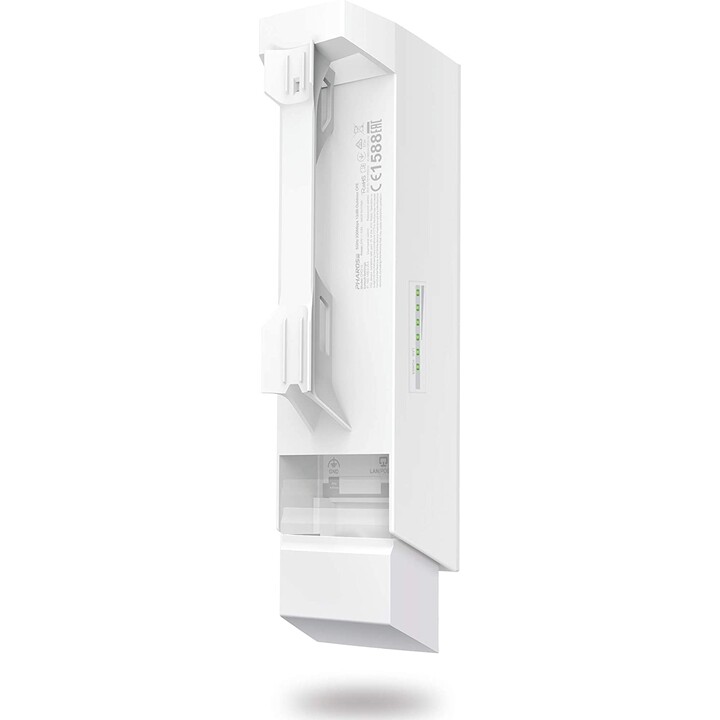

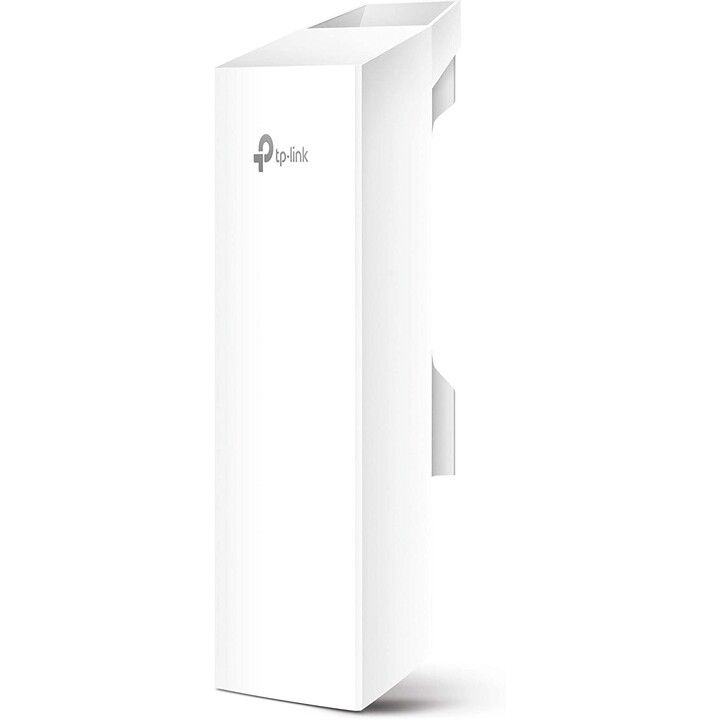

TP-Link CPE 510 Access Point White

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance, capacity and latency, ideal for PTMP applications
Operation modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
13dBi 2x2 double polarized directional MIMO antennas
Adjustable transmission power from 0 to 27 dBm / 500mw
System-level optimizations for wireless transmission over 15 kilometers in range
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves the product in performance, capacity and latency time, ideal for PTMP applications
Centralized Management System - Pharos Control
Passive PoE adapter supports a maximum of 60 meters (200 feet) of PoE implementation and allows the device to be reset remotely

Technical specifications

• Processor: Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
• Memory: RAM DDR2 64MB, Flash 8MB
• Interface: 1 10 / 100Mbps Shielded Ethernet Port (LAN0, passive PoE input)
• 1 10 / 100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
• 1 Grounding Terminal
• 1 Reset button
• Power Supply: Passive PoE Adapter via LAN0 (+ 4.5pins; -7.8pins)
• Voltage Range: 16-27VDC
• Power Consumption: Maximum 13 Watts
• Note: When configured using the passive POE adapter, the power drawn from the power supply will vary depending on the length of the connection cable.
• Dimensions: 224 x 79 x 60 mm
• Antenna Type: 13dBi 2x2 Double Polarized Directional Antenna
• Beam Width: 45 (H-Plane) / 30 (E-Plane)
• Note: For more details, please refer to the data sheet
• Protection: 15KV ESD Protection
• 6000V lightning protection
• Housing: ASA stabilized plastic material for outdoor use
• IPX5 waterproof certification
• WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a / n (with Pharos MAXtream disabled)
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speed: Up to 300Mbps (40MHz, Dynamic)
• Up to 144.4Mbps (20MHz, Dynamic)
• Up to 72.2Mbps (10MHz, Dynamic)
• Up to 36.1Mbps (5MHz, Dynamic)
• Frequency: 5.15 ~ 5.85GHz
• Note: The available working frequency may vary depending on the limitations of the countries or regions where the device is in use.
• Reception Sensitivity: 802.11a:
• 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
• MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
• MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
• MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
• MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
• MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
• Transmission Power: 27dBm / 500mw (Adjustable Power up to 1dBm)
• Note: The maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
• SOFTWARE FEATURES
• Wireless Configurations: TDMA MAXTream Pharos Technology
• 802.11a / n modes
• Selectable Channel Width: 5/10/20 / 40MHz
• Automatic Channel Selection
• Power Transmission Control
• Dynamic Frequency Selection (DFS)
• WDS On / Off
• Security: WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP) and 64/128/152-bit WEP Encryption
• SSID Broadcast On / Off
• Multi-SSID with VLAN tagging (AP mode only)
• Timeout settings in Distance / ACK
• Wireless MAC Address Filtering
• Advanced Wireless Options:
• > Interval Beacon / RTS Threshold / Fragmentation
• > Threshold / Interval DTIM / AP Isolation / Short GI / Wi-Fi Multimedia
• Management: Remote detection and management through the Pharos Control application
• HTTP / HTTPS Web Based Management
• System Log
• SNMP Agent (v2c)
• Ping watch dog
• Dynamic DNS
• SSH server
• System Tools: Wireless Signal Quality Indicators:
• Signal Strength / Noise / Transmit CCQ / CPU / Memory
• Monitoring: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP
• Spectrum analyzer
• Speed Test
• Ping
• Traceroute
• System Level Optimizations: Optimized IGMP Snooping / Proxy for multicast applications
• Hardware watch dog
• FEATURES POE ADAPTER
• Dimensions (W * D * H): 110 * 57 * 33.5mm
• Input Current: 0.8A Max @ 100VAC
• Input Voltage: 100VA ~ 240VAC @ 50Hz ~ 60Hz
