ALLNET ANT-868-10dbi-Yagi 868MHz 10dBi Directional Yagi Antenna LoRa Helium IoT N-Female

ALLNET 868MHz 10dBi Yagi Antenna - White/Grey (4038816117281)

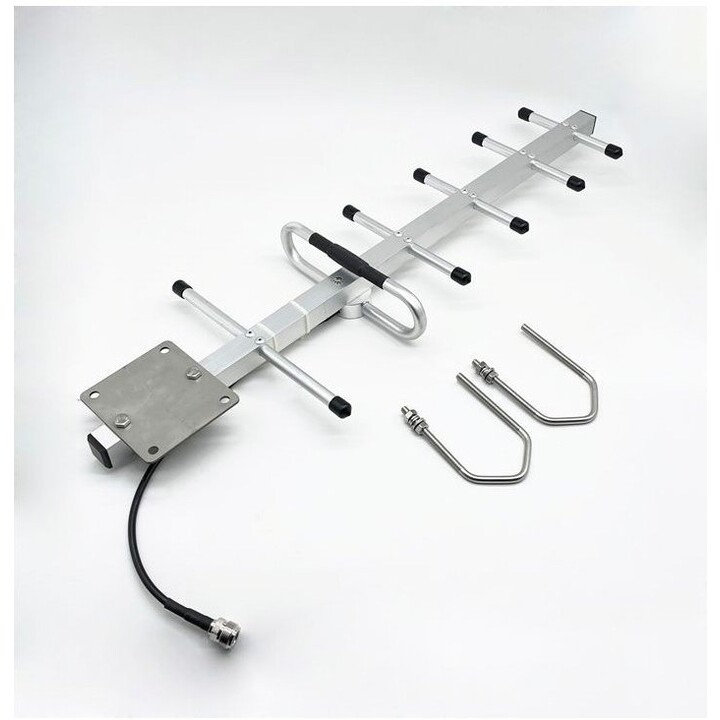

The ALLNET ANT-868-10dbi-Yagi is a professional-grade directional network antenna specifically engineered for long-range point-to-point and point-to-multipoint communication within the 868MHz ISM band. This hardware is optimized for deployment in LoRaWAN, Helium (HNT), and specialized IoT (Internet of Things) infrastructures where high-gain signal penetration and directional precision are required. The antenna utilizes a Yagi-Uda architecture consisting of six elements to produce a highly defined radiation pattern, which significantly reduces electromagnetic interference from adjacent systems. Constructed with a robust fiberglass radome and a UV-resistant chassis, the unit is designed for permanent outdoor installation on mast poles. It features an N-Female connector interface, ensuring low-loss signal transmission when paired with high-quality coaxial cabling. The mechanical design is rated to withstand extreme environmental conditions, including high wind velocities and a broad temperature spectrum, maintaining consistent performance for mission-critical wireless networks.

Technical Specifications

* Model: ANT-868-10dbi-Yagi

* Part Number: 4038816117281

* Antenna Type: Yagi (Directional)

* Frequency Range: 806 – 896 MHz

* Gain: 10 dBi

* Polarization: Vertical or Horizontal

* Horizontal Beamwidth (H): 73° ± 7°

* Vertical Beamwidth (E): 55° ± 5°

* Front-to-Back (F/B) Ratio: >15 dB

* VSWR: ≤ 1.4

* Nominal Impedance: 50 Ohm

* Maximum Power: 100 Watts

* Connector: N-Female

* Radome Material: Fiberglass (20mm Diameter)

* Wind Load Survival: 200 km/h (125 mph)

* Operating Temperature: -45°C to +75°C

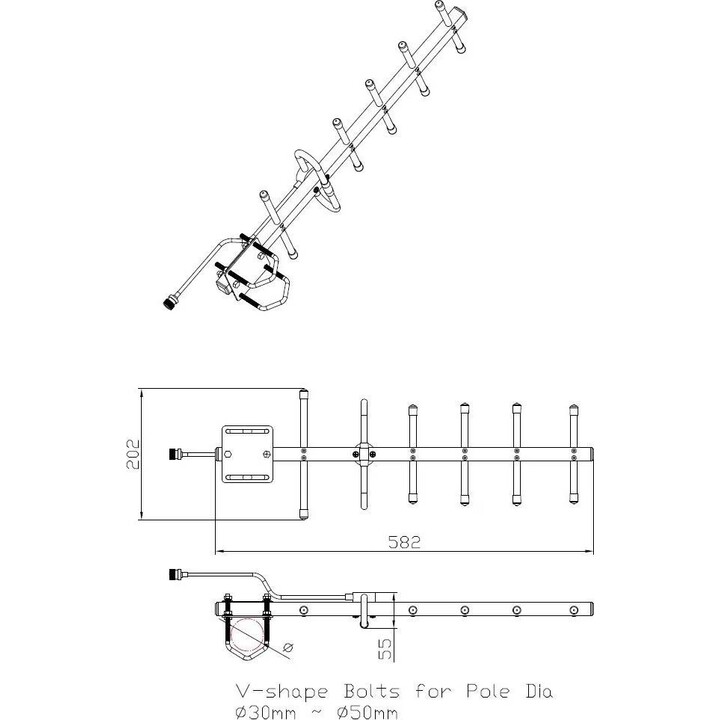

* Dimensions: 582 x 202 x 55 mm

Key Features

* Precision Directional Signal Propagation: Engineered with a focused 10 dBi gain profile to extend the operational range of 868MHz IoT gateways and Helium miners in rural or high-interference urban zones.

* Industrial Outdoor Architecture: Features a high-durability fiberglass radome that protects internal active elements from moisture, oxidation, and particulate accumulation in harsh climates.

* Advanced Interference Mitigation: Incorporates a high Front-to-Back ratio and narrow beamwidth to isolate specific signal paths, effectively neutralizing background noise from competing wireless frequencies.

* Versatile Mounting Configuration: Includes a specialized mast-mounting kit that supports both vertical and horizontal polarization orientations, allowing for technical alignment with regional network standards.

* High-Power Capacity Circuitry: Rated to handle up to 100 Watts of input power, making it suitable for high-density transmission sites and professional-grade industrial radio frequency deployments.
