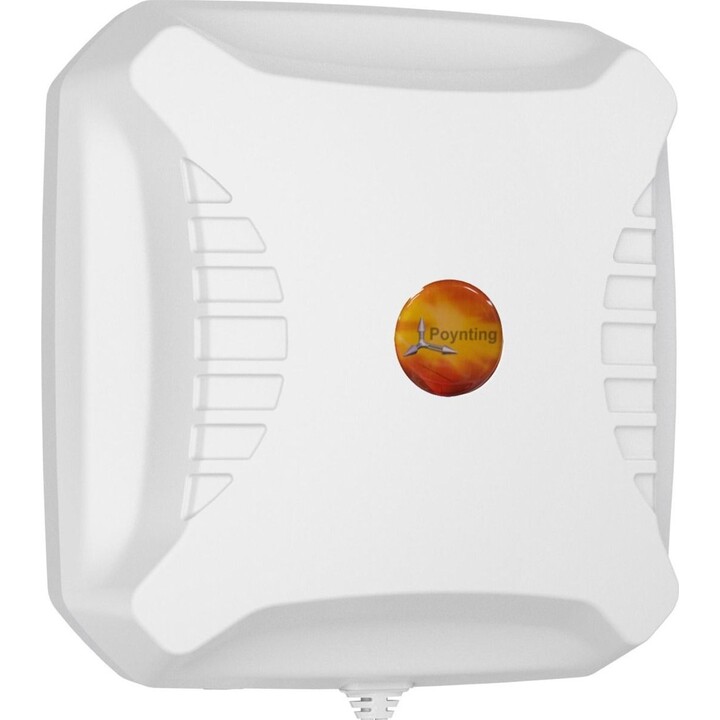

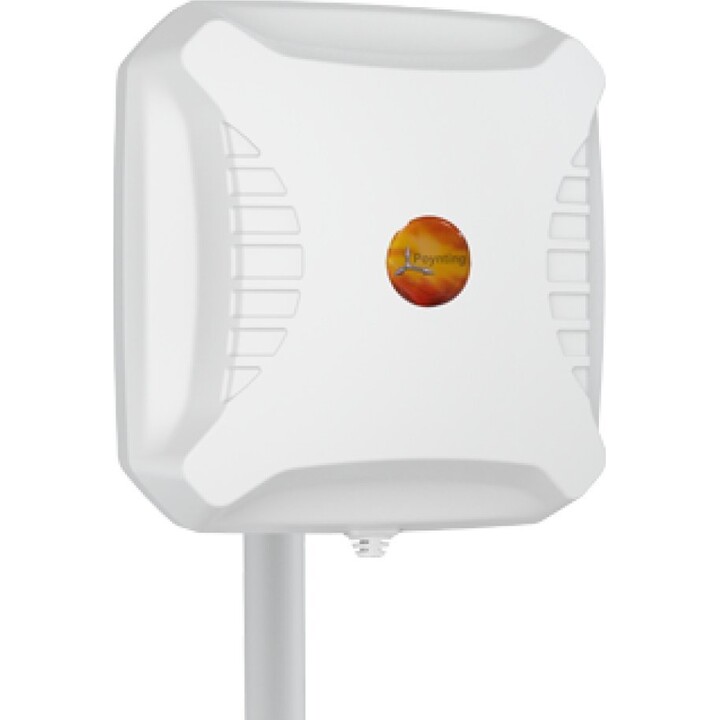

Poynting Antennas 5G/LTE mast/wall A-XPOL 0002-V3-02 white N-Type ((F)
- Advanced Cross Polarised 2×2 MIMO antenna
- Supports cellular frequencies 617 – 4200 MHz
- Enhanced bandwidth and gain with metamaterial technology
- Compatible with multiple 5G and LTE bands
- Durable IP65 rated enclosure for outdoor use
Poynting Antennas 5G/LTE mast/wall A-XPOL 0002-V3-02 white N-Type ((F)
The Poynting A-XPOL 0002-V3-02 is a high-performance cross-polarized antenna designed for 5G, LTE, and legacy cellular networks. It covers a wide frequency range from 698 to 3800 MHz, making it suitable for all major cellular bands worldwide. The antenna features a compact, low-profile design in white, ideal for discreet installation on masts or walls.
With dual-polarized MIMO technology, this antenna provides improved signal quality and data throughput. It includes two N-Type female connectors for MIMO operation. The robust construction ensures durability in outdoor environments, and the included mounting hardware allows for easy installation on masts up to 60 mm diameter or on walls.
| Brand | Poynting |
| Model | A-XPOL-0002-V3-02 |
| Product Type | Outdoor antenna |
| Frequency Range | 698-3800 MHz |
| Gain | 2-6 dBi |
| Polarization | Cross-polarized (X-Pol) |
| Impedance | 50 ohms |
| Connector Type | N-Type Female (2 ports) |
| VSWR | <2.0:1 typical |
| Mounting | Mast (up to 60 mm) or wall |
| Color | White |
| Dimensions | 270 x 190 x 65 mm |
| Weight | 0.8 kg |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP65 |
| EAN | 6009710920107 |
-
