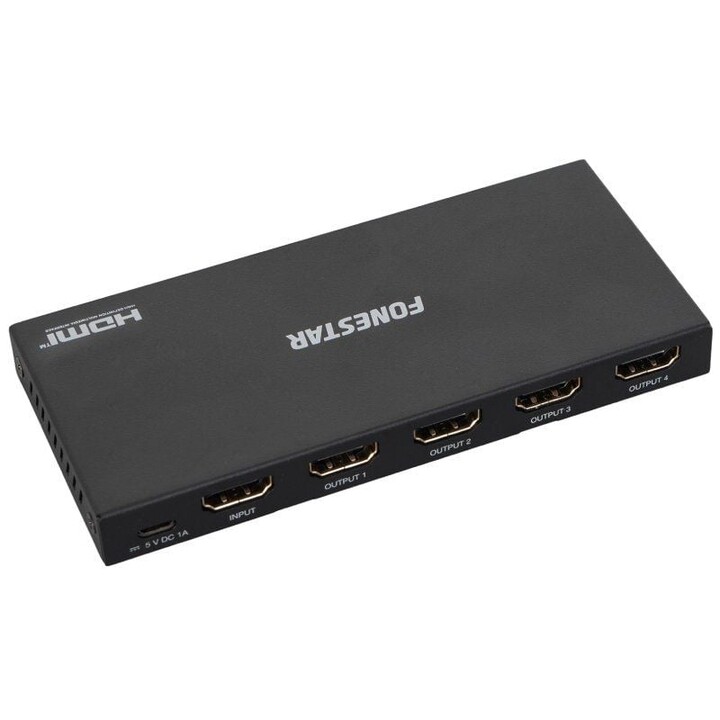

Fonestar FO-22S4ED Duplicator / 4xHDMI Female to HDMI Male

FO-22S4ED

HDMI amplifier distributor 1 x 4

HDMI 2.0 Distributor (1 input x 4 outputs).

It distributes the same image across multiple TVs. The same video and audio content can be displayed on different TVs to be viewed by more people.
Furthermore, you can distribute the signal to TVs of different resolutions, thanks to the DOWN-SCALING function that automatically adjusts the output signal to the TV´s resolution.

For installations where multiple TVs are needed for the audience, such as exhibitions, shop windows, training rooms, conference rooms, sports centers, bars, restaurants, etc.

CHARACTERISTICS

• HDMI 2.0 1x4 amplifier distributor.
• UHD 4K@60Hz resolution.
• Bandwidth 18 Gbps.
• Down-scaling function on outputs (Auto-adjustment for each TV´s resolution. Simultaneously provides 4K and 1080p outputs)
• Intelligent EDID management, automatic or manual selection.
• HDMI: 2.0, compatible with 1.4
• HDCP:2.2, compatible with 1.4
• DELAY: 0 ms
• INPUTS: 1 HDMI female gold-plated connector
• OUTPUTS: 4 HDMI female gold-plated connectors
• INDICATORS: Operation LED
• LED outputs
• Operating mode LED
• POWER SUPPLY: 5V DC, 1A with included adapter
• MEASUREMENTS: 136 x 14 x 61 mm depth
• WEIGHT: 0.15 kg
• NOTES: The cable must be HDMI 2.0.
• The maximum cable length is 5m for 4K@60Hz 4:4:4 or 10m for 4K@30Hz or 1080p
