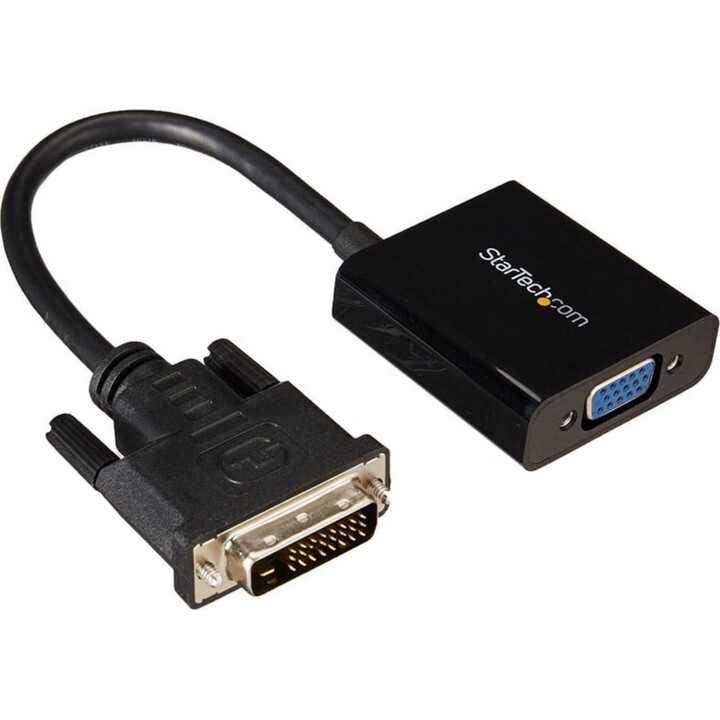

Startech DVI-D to VGA adapter black

About the product

The active DVI-D to VGA adapter, model DVI2VGAE, allows you to connect a digital DVI output from your desktop or laptop computer to a VGA projector or monitor , thus avoiding the expense of upgrading to a screen with available DVI-D.

Since it provides a simple output of user-generated content, this DVI-D to VGA converter also allows for increased productivity, as it extends a computer desktop to a second monitor, effectively doubling the workspace.

This portable adapter converts a standard-powered DVI bus to VGA, eliminating the need for an external power supply. For low-power DVI ports, a USB cable is included, allowing you to power the device from any USB power source.

With support for resolutions up to 1920x1200 (WUXGA), this active adapter is a comprehensive solution for connecting a high-definition VGA display to a DVI-D video source.

Characteristics:

• Maximum resolution of 1920x1200
• It does not require an external power adapter.

Startech DVI-D to VGA Adapter Specifications:

• Hardware
  • Audio Support No
  • Active converter type
  • Performance
  • Flat Screen Supported Yes
  • Maximum Analog Resolution 1920x1200
  • Maximum Digital Resolution 1920x1200
• Connector(s)
  • Connector A
    • 1 - DVI-D (25 pin) Male Input
    • 1 - USB Micro B (5-pin) Female
  • Connector B 1 - VGA (15-pin, high-density D-Sub) Female Output
  • Connector Type(s) USB Micro B (5 pin) Female
• Energy Requirements
  • Energy Consumption 1.3
• Environmental Requirements
  • Humidity RH 40% ~ 85%
  • Operating Temperature 0°C to 60°C
• Physical Characteristics
  • Product Height 15 mm
  • Product Width 45 mm
  • Black
  • Product Length 248 mm
  • Product Weight 75 g
• Cashier Information
  • Shipping Weight (of the Box) 0.1 kg
• Box Contents
  • 1 - DVI-D to VGA Adapter Converter
  • 1 - USB type A to Micro USB type B cable
