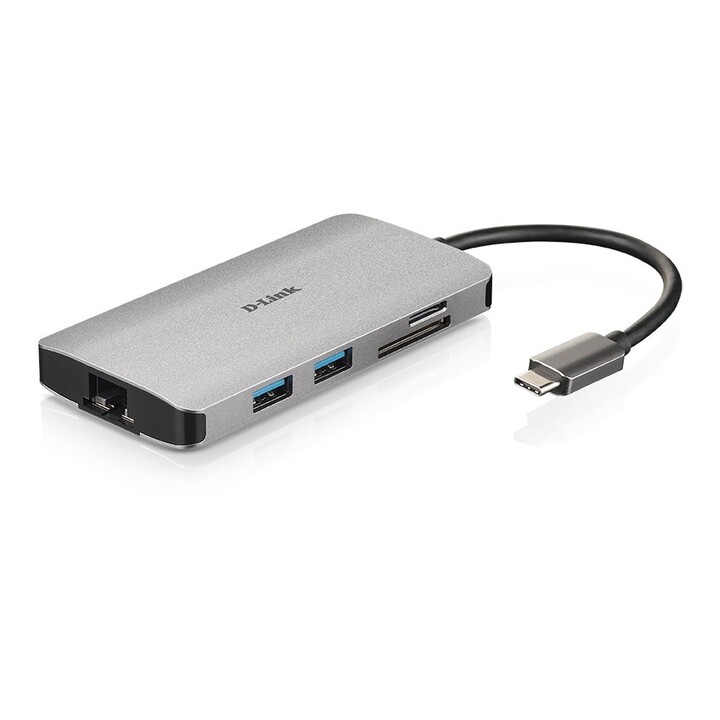

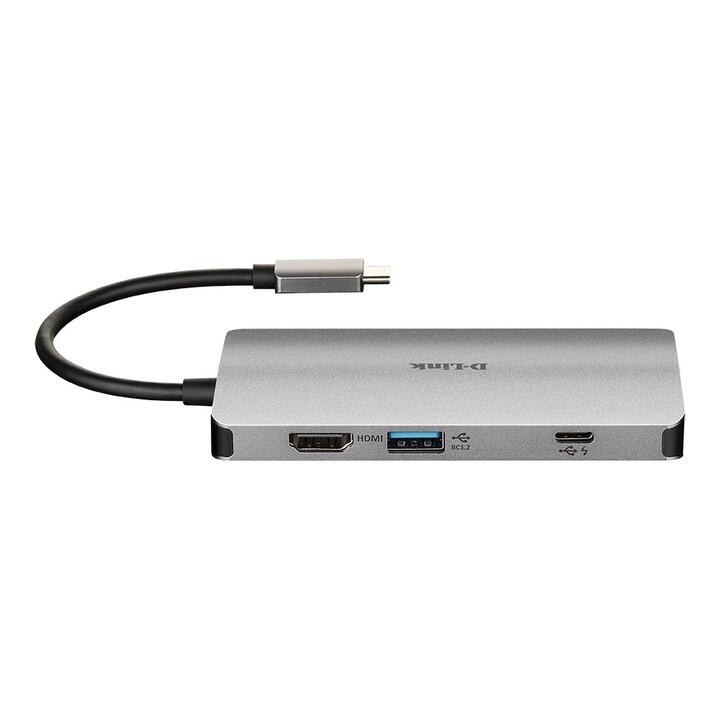

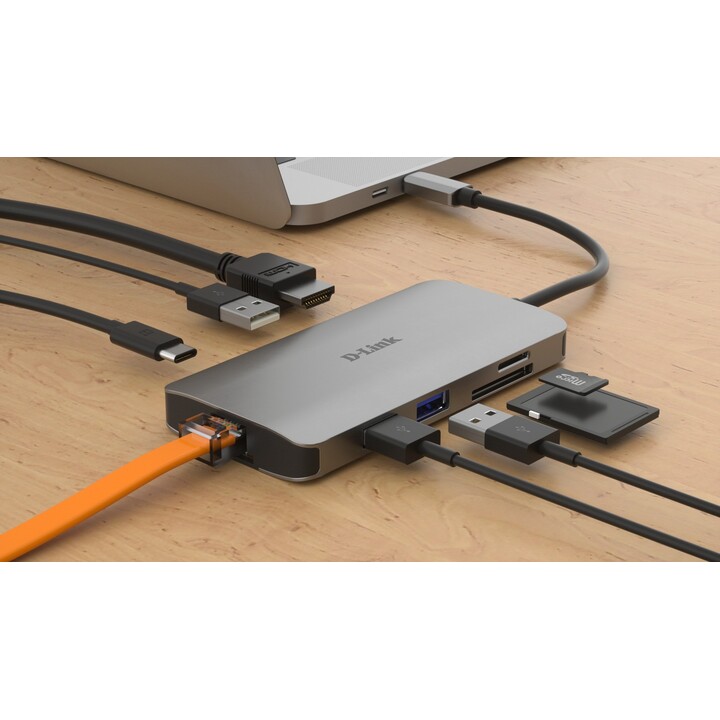

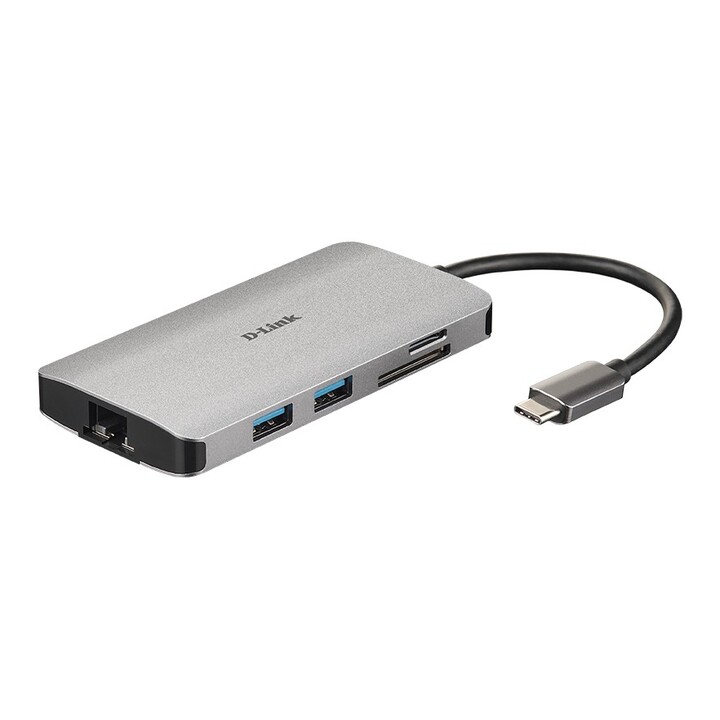

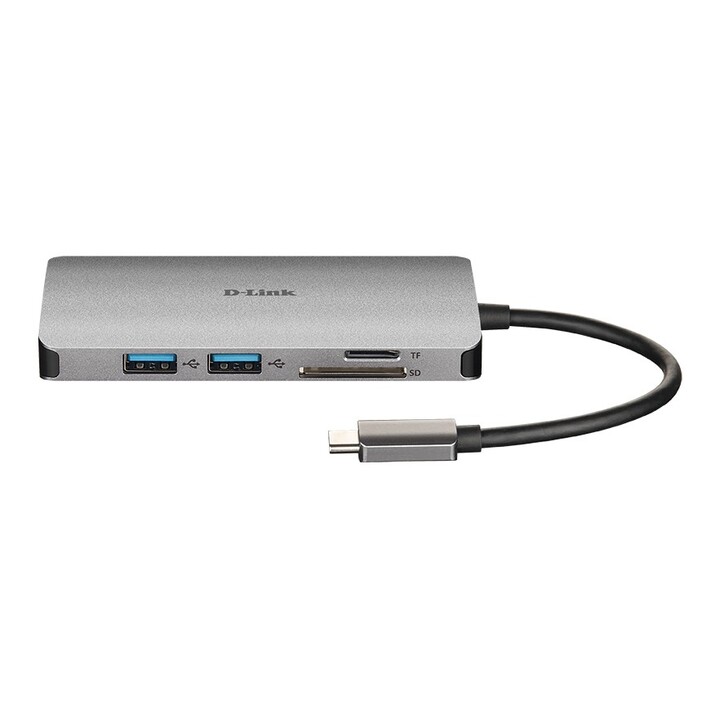

Docking USB Type-C D-Link DUB-M810/ 3xUSB/ 1xUSB Type-C/ 1xThunderbolt/ 1xHDMI 4K/ 1xRJ45/ 1xCard reader/ Gray

The D-Link DUB-M810 is a wired USB Type-C docking station designed to expand the connectivity of your laptop or compatible device. It connects via a USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface and provides a wide range of ports in a compact aluminium body measuring 105 mm wide, 52 mm deep and 13 mm high, weighing only 82 g.

With three USB Type-A ports and one USB Type-C port (both USB 3.2 Gen 1), plus a Thunderbolt 3 port, the DUB-M810 lets you connect peripherals, storage and displays. The HDMI port supports resolutions up to 4096 x 2160 pixels at 30 Hz, and HDCP 2.2 is supported for protected content. A Gigabit Ethernet RJ45 port (IEEE 802.3, 802.3ab, 802.3u, 802.3x) provides a stable wired network connection.

The integrated card reader supports MicroSD (TransFlash), SD, SDHC and SDXC memory cards. USB Power Delivery is supported up to 100 W, and the dock is Plug and Play compatible with Windows, macOS and Linux. It is certified CE, IC, FCC and RCM, and operates between 0 °C and 45 °C.

Características principales

• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• 3x USB Type-A and 1x USB Type-C (USB 3.2 Gen 1) ports
• 1x Thunderbolt 3 port
• 1x HDMI 1.4 port with 4K support (4096 x 2160 at 30 Hz) and HDCP 2.2
• 1x RJ45 Gigabit Ethernet port (IEEE 802.3, 802.3ab, 802.3u, 802.3x)
• Integrated card reader: MicroSD, SD, SDHC, SDXC
• USB Power Delivery up to 100 W
• Plug and Play; compatible with Windows, macOS and Linux

Especificaciones técnicas

Preguntas frecuentes

¿Qué tipo de conexión utiliza el D-Link DUB-M810?

Se conecta mediante una interfaz de host USB 3.2 Gen 1 (3.1 Gen 1) Type-C y utiliza tecnología alámbrica.

¿Qué puertos incluye?

Incluye 3 puertos USB Type-A, 1 puerto USB Type-C (todos USB 3.2 Gen 1), 1 puerto Thunderbolt 3, 1 puerto HDMI 1.4, 1 puerto RJ45 Ethernet y un lector de tarjetas integrado.

¿Qué resolución de vídeo soporta?

Soporta una resolución máxima digital de 4096 x 2160 píxeles a 30 Hz a través de su puerto HDMI, con soporte HDCP 2.2.

¿Es compatible con mi sistema operativo?

Sí, es compatible con Windows, macOS y Linux, y además es Plug and Play.

Es para ti si...

• Necesitas ampliar la conectividad de tu portátil con múltiples puertos USB, HDMI, Ethernet y lector de tarjetas.
• Buscas una docking station compacta y ligera (105 x 52 x 13 mm, 82 g) con acabado en aluminio.
• Quieres conectar una pantalla 4K a 30 Hz y una red Gigabit por cable.
• Valoras la compatibilidad Plug and Play con Windows, macOS y Linux.
