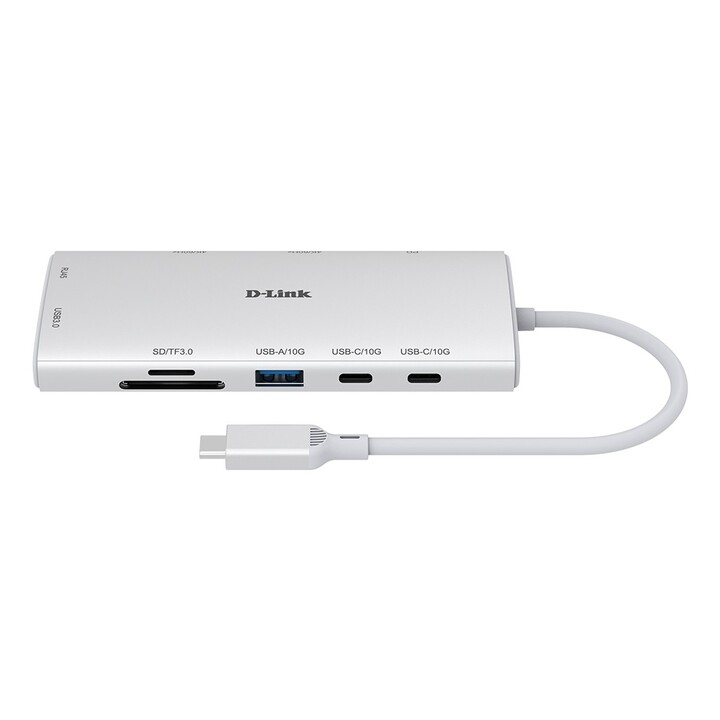

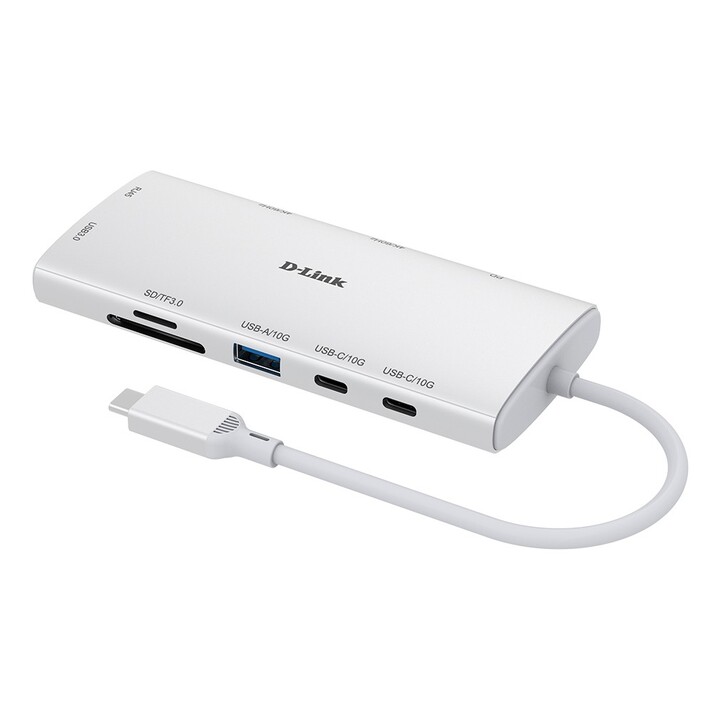

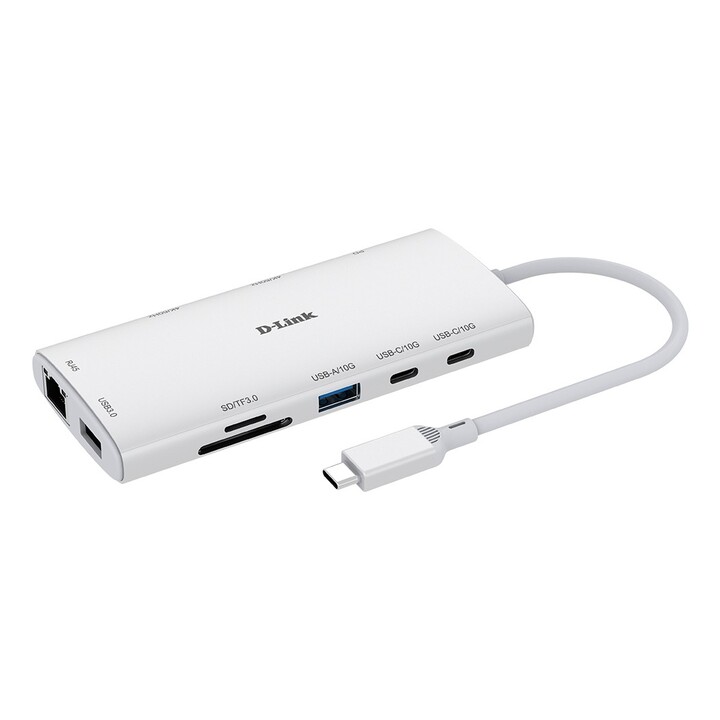

Docking USB Type-C D-Link DUP-A01/ 1xUSB/ 2xUSB Type-C/ 2xHDMI 4K/ 1xRJ45/ 1xCard Reader/ 1xUSB Type-C PD/ White

The D-Link DUP-A01 is a versatile USB Type-C docking station designed to expand your connectivity. It connects to your laptop or device via a USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface, providing a wide range of ports for productivity and multimedia.

With two HDMI ports, you can output stunning 4K Ultra HD video at up to 60 Hz, supporting resolutions up to 3840 x 2160 pixels. The docking station also includes a Gigabit Ethernet RJ-45 port for reliable wired networking, ensuring fast and stable data transfers at 10/100/1000 Mbit/s.

For peripherals and storage, the DUP-A01 offers one USB 3.2 Gen 1 Type-A port, two USB 3.2 Gen 1 Type-C ports, and a card reader compatible with SD and microSD (TransFlash) cards. USB Power Delivery is supported, allowing you to charge compatible devices while using the dock. The compact white design measures 125 mm in width, 55.4 mm in depth, and 16.6 mm in height, weighing just 98.5 g.

Características principales

• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• 2x HDMI ports with 4K Ultra HD (3840 x 2160) at 60 Hz
• 1x Gigabit Ethernet RJ-45 port (10/100/1000 Mbit/s)
• 1x USB 3.2 Gen 1 Type-A and 2x USB 3.2 Gen 1 Type-C ports
• SD and microSD card reader
• USB Power Delivery support
• Plug and Play; CE, FCC, RCM certified

Especificaciones técnicas

Preguntas frecuentes

What is the host interface of the D-Link DUP-A01?

The docking station connects via a USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface.

Does it support 4K video output?

Yes, it has two HDMI ports that support 4K Ultra HD at 60 Hz, with a maximum resolution of 3840 x 2160 pixels.

Can I connect to a wired network?

Yes, it includes a Gigabit Ethernet RJ-45 port with data transfer rates of 10/100/1000 Mbit/s.

What types of memory cards are supported?

The built-in card reader supports SD and microSD (TransFlash) cards.

Es para ti si...

• Necesitas expandir la conectividad de tu portátil con USB Type-C.
• Buscas salida de vídeo 4K en dos pantallas simultáneas.
• Requieres una conexión de red por cable Gigabit Ethernet.
• Quieres leer tarjetas SD y microSD sin adaptadores adicionales.
• Valoras un diseño compacto y blanco que combine con tu espacio de trabajo.
