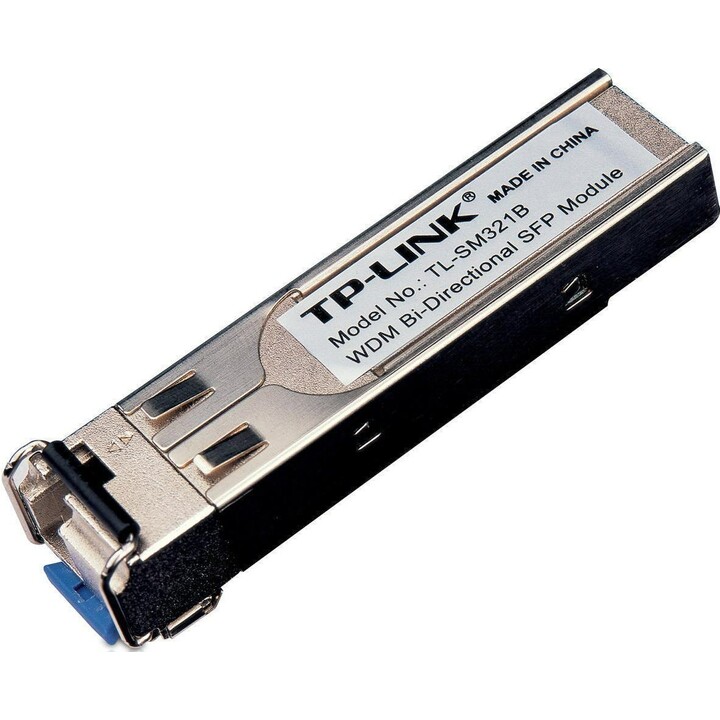

1000Base-BX Bidirectional WDM SFP Module
- 1.25Gbps bidirectional data rate
- Single-mode fiber, up to 10km distance
- WDM technology: 1310nm TX / 1550nm RX
- LC duplex connector
- Compliant with IEEE 802.3ah 1000Base-BX10
-
Standard and speed: 1000Base-BX (IEEE 802.3z), 1.25 Gbps full-duplex, MSA SFP compatible for multi-vendor switches.
-
Fibre and distance: Single-mode 9/125 μm SC/LC simplex, up to 10 km (20 km variants), ideal for long point-to-point links vs. AT-SPSX/E multimode 550m.
-
BiDi optics: TX 1310 nm (DFB laser) / RX 1550 nm (PIN), with DDM for real-time optical monitoring (power, temperature).
-
Connector: LC simplex UPC, hot-pluggable on SFP ports of Gigabit switches or pre-consulted media converters.
-
Power: +3.3V single supply (<1 W), low power consumption for dense chassis with SonicWall FRU PSU or Belkin power strips.
-
Temperature: Industrial -40°C to +85°C, ruggedised for protected outdoor use in conjunction with MikroTik SXT LTE7.
-
Dimensions: Standard SFP (13.4x56.5x8.5 mm, 20 g), plug-and-play without drivers.
-
Brand
-
ReferenceSM321B
-
In stock8 Items
-
ConditionNew
-
EAN131210002612081
-
MPNSM321B
