Level One POI-3004 Gigabit PoE Injector 802.3at/af Single Port 30W High-Power Wall Mount

LevelOne POI-3004 Gigabit PoE Plus Injector - Black (4015867187821)

The LevelOne POI-3004 is a professional-grade Gigabit PoE (Power over Ethernet) Plus Injector designed to provide both high-speed data and electrical power to compatible network devices via a single Ethernet cable. This hardware is engineered to support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power, which is sufficient for high-consumption devices such as PTZ speed dome cameras, multi-channel wireless access points, and advanced VoIP terminals. The device functions as a bridge between a non-PoE switch and a PoE-enabled terminal, injecting DC voltage into the Cat.5, Cat.6, or Cat.7 cabling without degrading the Gigabit data transmission speeds. It features an internal power supply and an integrated circuit that automatically detects the power requirements of the connected PD (Powered Device), protecting non-PoE hardware from accidental electrical damage.

Technical Specifications

* Model: POI-3004

* Part Number: 4015867187821

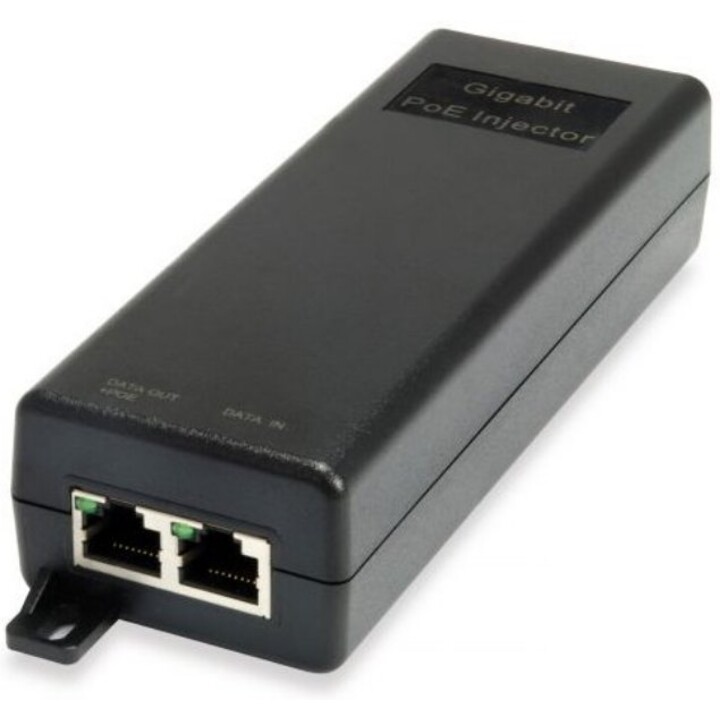

* Interface: 1x 10/100/1000Base-T RJ45 (Data In), 1x 10/100/1000Base-T RJ45 (Data + Power Out)

* PoE Standard: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)

* Power Output: 52V DC / Up to 30 Watts

* Data Rate: 10/100/1000 Mbps

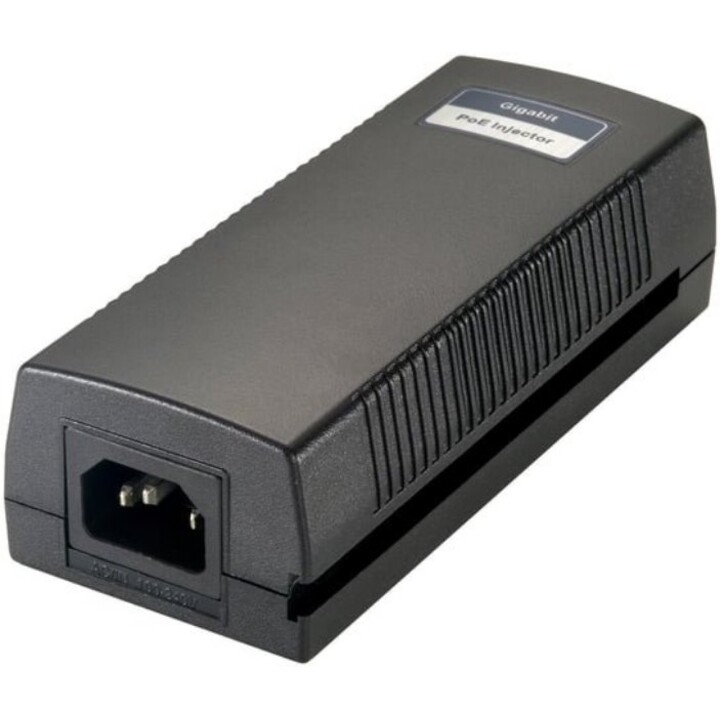

* Input Power: 100-240V AC, 50/60Hz

* Pin Assignment: 1/2 (+), 3/6 (-)

* LED Indicators: Power, PoE

* Operating Temperature: 0°C to 45°C

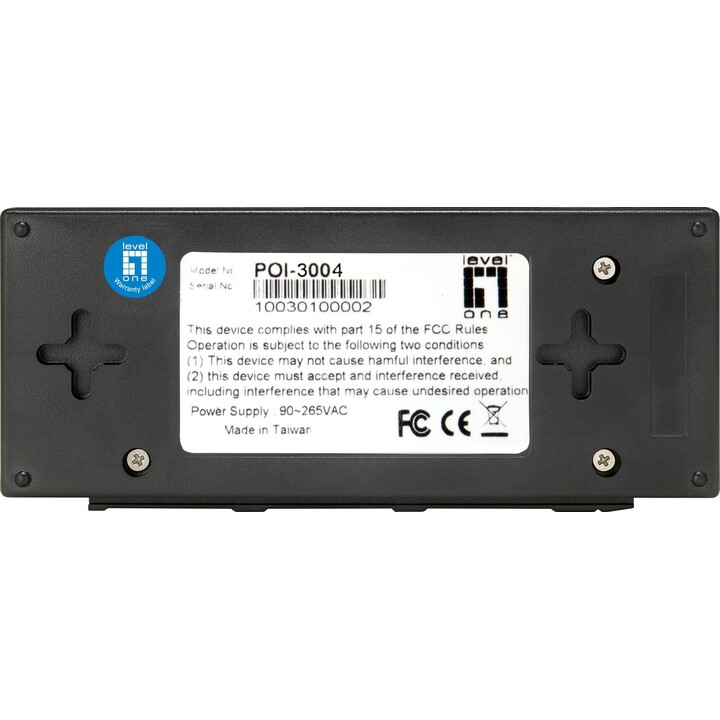

* Certification: FCC, CE, RoHS

Key Features

* High-Capacity PoE+ Delivery: Engineered to provide up to 30W of power, supporting the increased energy requirements of professional-grade security and telecommunications hardware.

* Integrated Gigabit Throughput: Maintains full wire-speed 1000Mbps connectivity, ensuring that the injection of power does not interfere with high-bandwidth data transfers or network latency.

* Auto-Detection Logic: Incorporates specialized sensors that automatically negotiate the correct power level with the connected device, preventing over-voltage and ensuring hardware safety.

* Internal Power Supply Architecture: Features a unified design with a built-in AC/DC converter, eliminating the need for external power bricks and simplifying professional rack or cabinet cable management.

* Industrial-Grade Safety Protections: Equipped with built-in short circuit, over-current, and over-voltage protection circuits to safeguard the network infrastructure during power fluctuations or cable faults.
