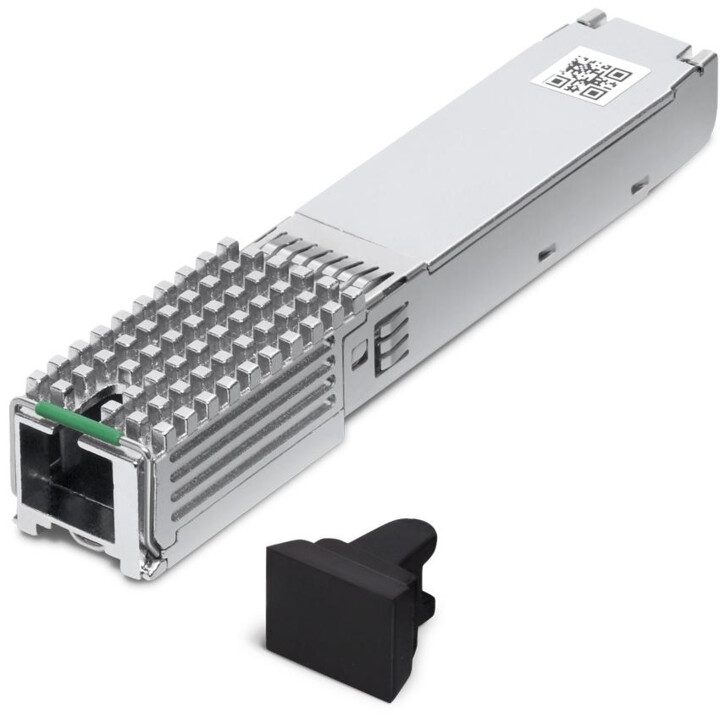

TP-Link GPON ONU SFP Module

The TP-LINK XM60A GPON ONU SFP Module is designed to deliver ultra-fast fiber optic internet connectivity with downstream speeds up to 2.488 Gbps and upstream speeds of 1.244 Gbps. This module features a hot-swappable design, allowing quick installation and replacement without disrupting your network operations.

Equipped with a single fiber (9/125um) and SC/APC connector, the XM60A supports transmission distances up to 20 km, making it ideal for long-range fiber deployments. It operates at a nominal voltage of 3.3 V and includes diagnostic functions that monitor key parameters such as voltage, transceiver power, and temperature to ensure optimal performance.

Additional technical specifications include a wavelength of Tx: 1310 nm and Rx: 1490 nm, a power level of Class C+, receiver sensitivity of -28 dBm, and an overload power threshold of -8 dBm. This module is suitable for network environments requiring reliable, high-speed fiber transceiver solutions.

Package contents include the GPON ONU SFP Module XM60A and a quick installation guide to facilitate setup. Enhance your fiber network with the TP-LINK XM60A for superior speed and stability.
