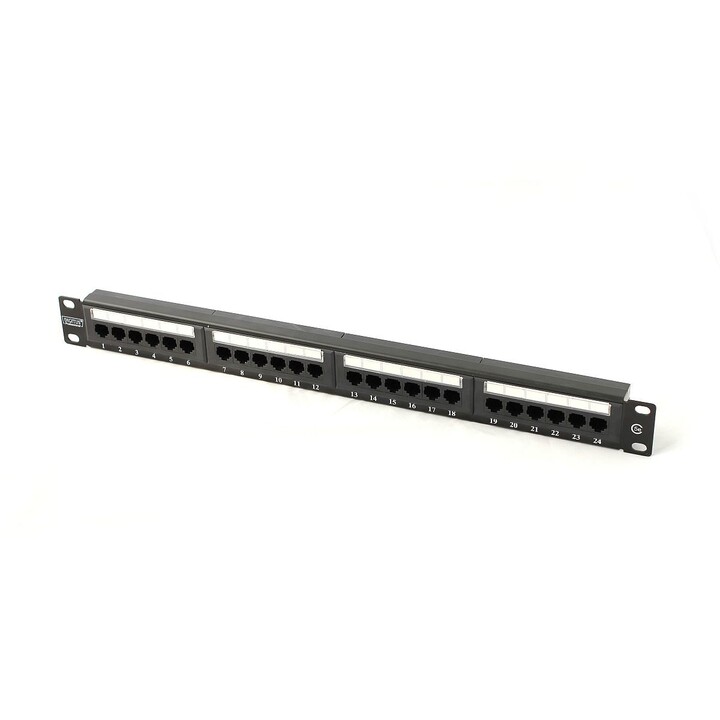

The Digitus DN-91524U-1 is a 24-port 1U patch panel designed for installation in 19" (483 mm) rack cabinets. It provides a structured cabling solution for CAT 5e unshielded networks, with RJ-45 sockets and universal Krone LSA+ / 110 IDC terminals that are color-coded according to EIA/TIA 568 A & B wiring schemes.
Built with a cold-rolled steel (SECC) housing of 1.5 mm thickness and finished in RAL 9005, this patch panel offers durability and a professional look. The contact material is phosphor with nickel and gold plating (0.3 µm gold on the shell connectors), ensuring reliable signal transmission. The PCB is made of FR4 material with UL 94V-0 rating and a coating thickness of 1.45 mm.
For easy port identification, the panel includes a label with plastic handles mounted on the front. The IDC terminals are rated for more than 250 connection cycles, while the RJ-45 sockets support more than 750 mating cycles, both in accordance with ISO/IEC 11801 and IEC 60603-7-5 standards. The panel operates reliably in temperatures from -20 °C to +70 °C and has an insulation resistance greater than 500 MOhm.
| Brand | ASSMANN |
| Reference | DN-91524U-1 |
| EAN | 5907772593233 |
| Product type | Patch panel |
| Ports | 24 |
| Height | 1U |
| Width | 19" (483 mm) |
| Category | CAT 5e |
| Shielding | Unshielded |
| Socket type | RJ-45 |
| IDC terminals | Krone LSA+ / 110, color-coded per EIA/TIA 568 A & B |
| Cable diameter compatibility | 22-26 AWG (wire) |
| Housing material | Cold-rolled steel (SECC), 1.5 mm thickness |
| Housing color | RAL 9005 |
| Contact material | Phosphor |
| Shell connectors | Nickel, gold 0.3 µm |
| IDC terminal material | Phosphor 50 to 60 zinc nickel |
| PCB material | FR4, UL 94V-0, coating thickness 1.45 mm |
| Durability (RJ-45) | >750 cycles (ISO/IEC 11801, IEC 60603-7-5) |
| Durability (IDC) | >250 cycles (ISO/IEC 11801, IEC 60603-7-5) |
| Operating temperature | -20 °C to +70 °C |
| Insulation resistance | >500 MOhm |
| Included accessories | Label with plastic handles for port identification |
It is 1U high, suitable for standard 19" racks.
It is designed for CAT 5e unshielded cables.
It has RJ-45 sockets and Krone LSA+ / 110 IDC terminals.
It operates from -20 °C to +70 °C.
