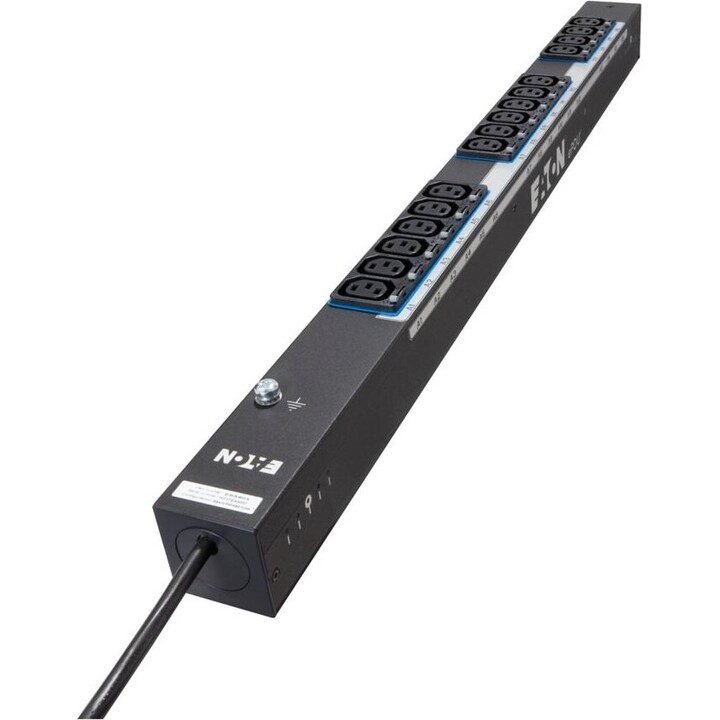

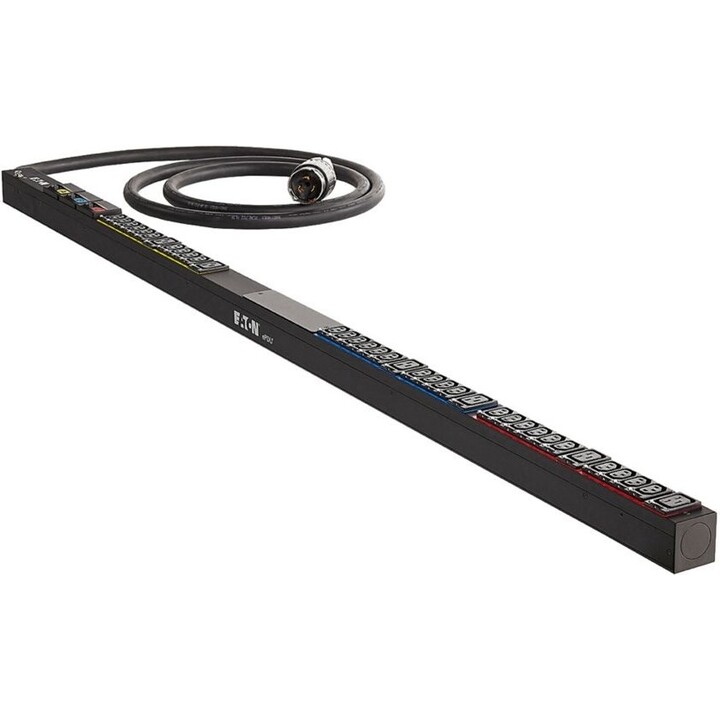

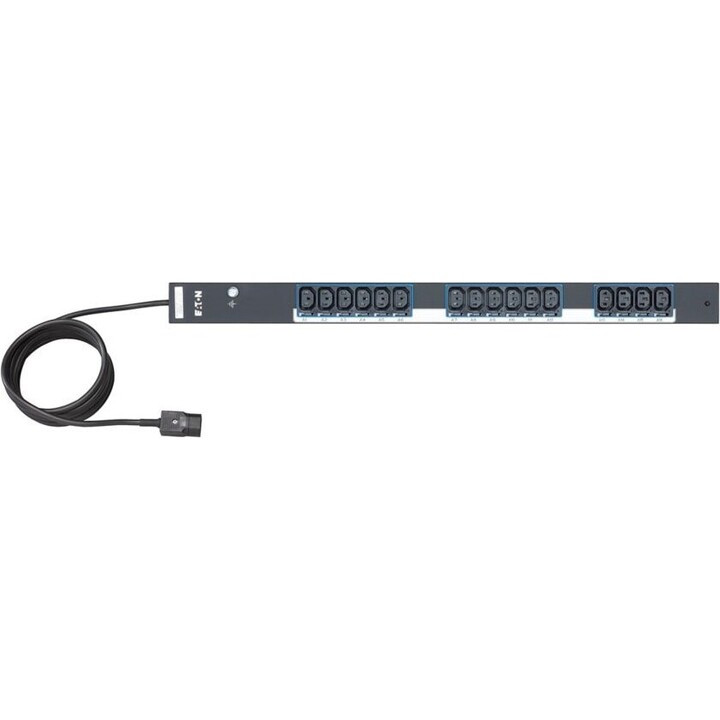

Eaton EBAB03 Basic Rack PDU Black
Eaton EBAB03 Basic Rack PDU Black
Eaton EBAB03 Basic Rack PDU Black

Eaton EBAB03 Basic Rack PDU Black

Eaton
Reference: EBAB03
EAN: 0743172065773
Condition: New
€336.88
VAT included
Without tax: €273.88

The Eaton EBAB03 Basic Rack PDU Black is a high-performance power supply solution for servers and network equipment. It offers safe and reliable power distribution for IT equipment in server racks.

Buy it now and receive it between Wednesday 30 September and Friday 2 October with GLS / UPS / DHL €6.09

Available
Share

Up to 3 years warranty 100% secure payment 14 days return

GENERAL SPECIFICATIONS

PRODUCT NAME
Basic PDU for Eaton Rack
CATALOG NUMBER
EBAB03
MODEL CODE
EPDU BA 0U (C14 10A 1P)16XC13
UPC
743172065773
PRODUCT LENGTH/DEPTH
700mm
PRODUCT HEIGHT
52mm
PRODUCT WIDTH
53mm
PRODUCT WEIGHT
1,5 kg
WARRANTY
2 years
COMPLIANCE
CE marking RoHS EAC
compliant
CERTIFICATIONS
CE
IEC 60950-1
EN 55024:2010
MODEL CODE
EPDU BA 0U (C14 10A 1P)16XC13

PRODUCT SPECIFICATIONS

NUMBER OF OUTPUTS C13
16
PHASE
single phase
ELECTRIC CONNECTION
Connection cable with plug
MOUNTING DIMENSION (STANDARDIZED)
Metric
POWER
2.3 kW max.
FORM FACTOR
0U (Vertical)
MOUNTING DIRECTION
Vertical
AMPERAGE RATING
10 A
PACKAGE CONTENTS
Rack PDU
Mounting Accessories
Quick Start Guide
Safety Instructions
INPUT CONNECTION
C14
EQUIPPED WITH:
mounting hardware
FREQUENCY CLASSIFICATION
50/60 Hz
OPERATING TEMPERATURE
0° a 60°C (32° a 140°F)
ETHERNET INTERFACE
No
NUMBER OF EARTHED OUTPUTS
16
MASS CONFIGURATION
No
SPECIAL FEATURES
Built-in IEC outlet eGrip retention, retains all standard IEC plugs
Built-in outlet P-lock system, locking mechanism with P-lock power leads
60°C operating temperature
Color-coded output and branch circuits for balanced output single charge
Hydraulic-magnetic circuit Circuit breakers with accidental trip protection
Low profile form factor: 52mm wide x 53mm deep on most models
Universal mounting system: Rear and side push button mount + system variable mounting
OUTPUT CONTROL
No
SWITCHABLE
No
CABLE LENGTH
3m
INPUT VOLTAGE
200-240V
COLOR
Black
SNMP
No
MATERIAL
Aluminum
OVERVOLTAGE CATEGORY
2
POINTS OF SALE
(16) C13
GUY
Rack PDU
SERIAL INTERFACE
No
MOUNTING DIMENSION (METRIC)
52
