Creality CR-Scan Otter 3D Scanner for 3D Printing - Four Lenses for 10-2000mm Full Colour Object/Body/Face Scanning, Accuracy do

Creality CR-Scan Otter, 3D scanner with 4 lenses, scanning objects from 10 ±2000 mm, 0.02 mm accuracy and 20 fps speed, gray color

Portable 3D scanner - 0.02 mm accuracy - Four lenses - Stable structure - 24-bit color scanning - Scanning objects from 10 ±2000 mm - 20 fps scanning speed

The 3D scanner Creality CR-Scan Otter stands out for its versatility, scanning objects from 10 mm ±2000 mm with remarkable precision of 0.02 mm. It features an innovative stereo vision system with 4 lenses and can scan in 24-bit color. Additionally, its stable design allows smooth and efficient scanning, with a lightweight structure that operates quietly and is easy to carry.

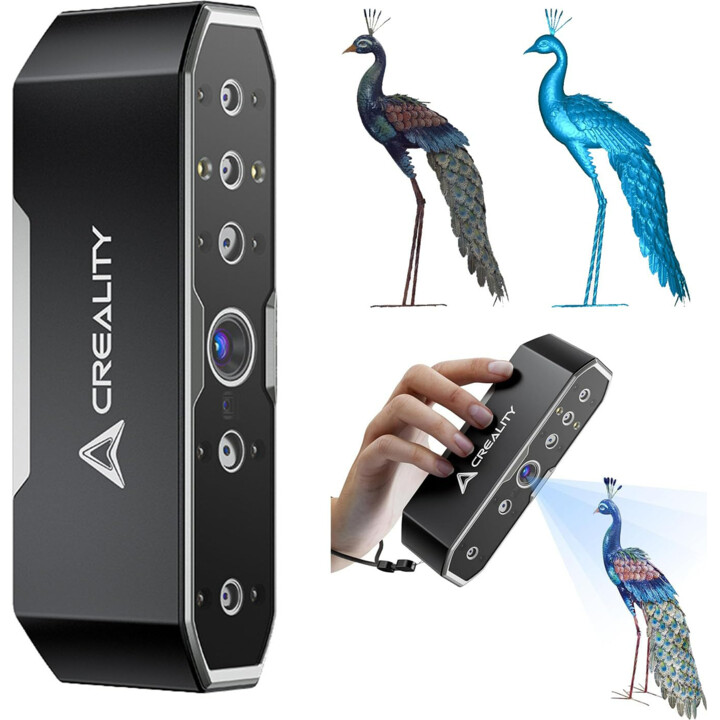

Stereo Vision System with 4 Lenses

The Creality CR-Scan Otter is equipped with an innovative vision system featuring 4 lenses that allow precise scanning of both small and large objects. It includes two sets of long-focus dual lenses for detailed scanning of small objects and one set of short-focus dual lenses for wide scanning of larger objects.

Scanning Objects from 10 ±2000 mm

The CR-Scan Otter can efficiently scan tiny objects as small as 10 x 10 x 10 mm up to large objects measuring 2000 x 2000 x 2000 mm. Its versatility allows scanning everything from small screws to bodies, faces, vehicle parts, and much more.

20 fps Speed and 0.02 mm Accuracy

This Creality 3D scanner features One-Shot 3D imaging technology and offers stable scanning that minimizes tracking errors. Its fast rewind speed ensures smoother handheld scanning, capable of capturing up to 20 frames per second. It also uses a structured light stereo matching algorithm and advanced optical design, achieving an accuracy of 0.02 mm.

24-bit Color Scanning

The CR-Scan Otter can scan metallic and black objects, such as automobiles, without the need for spraying. It also integrates a 1-megapixel RGB camera and a unique color mapping algorithm, ensuring exceptional detail and color accuracy when capturing models up to 24 bits.

Portable Design with Intuitive Controls

Easy to use, the CR-Scan Otter is equipped with LED indicators that display scanning status in real time, touch buttons, and sound signals that facilitate the scanning process.

Technical Specifications Creality CR-Scan Otter Grey - 3D Scanner:

• Brand: Creality
• Model: CR-Scan Otter
• 3D Scanner
• Scanning Mode:
  • NIR (binocular infrared structured light)
  • Accuracy: up to 0.02 mm
  • Resolution: 0.05-2 mm
  • Scanning speed: up to 20 fps
  • Minimum scan volume: 10 mm x 10 mm x 10 mm
  • Single capture range: 1350 mm x 480 mm @ 1000 mm
  • Working distance: 110 mm - 1000 mm
  • Color mapping: yes
  • Alignment modes: Geometry/Marker/Texture
• General parameters
  • Additional colored light: 2 white LEDs
  • Marker recognition enhancement: 8 infrared LEDs
  • Laser safety: Class I (eye-safe)
  • Buttons: Touch
  • IMU: Yes
  • Output format: OBJ/STL/PLY
  • Input power: 5V 3A
  • Interface: Type-C/USB 3.0
  • Dimensions: 165 x 37 x 59 mm
  • Weight: 390 g
  • Wireless scanning: compatible with future wireless scanning accessories
  • Operating system: Windows/macOS
  • Operating temperature: -10°C to 40°C
  • Operating humidity: 0-90% RH
• Color: Gray

Box Contents:

• 1 x Creality CR-Scan Otter - 3D Scanner
