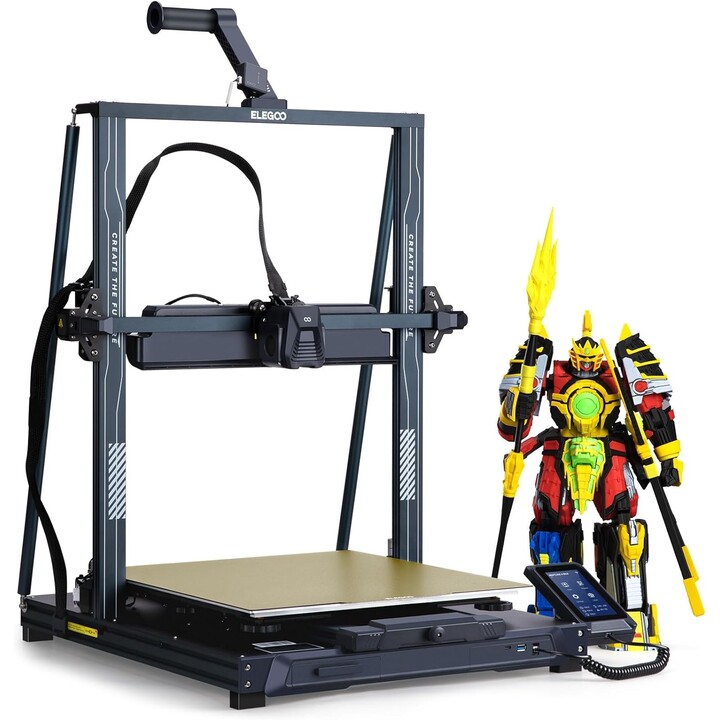

Elegoo Neptune 4 Max – FDM 3D Printer

Elegoo Neptune 4 Max, FDM 3D printer with 11x11 automatic levelling, print speed 500 mm/s and WIFI/WLAN/USB connection

Print volume 420x420x480 mm - Maximum print speed 500 mm/s - Automatic levelling 11x11 (121) dots - Nozzle up to 300°C - Compatible with PLA/PETG/ABS/TPU/Nylon filaments - WIFI/WLAN/USB transfer

The Elegoo Neptune 4 Max is a high power FDM printer belonging to the Neptune 4 line. Compared to its previous models, this printer has an impressive build volume, with dimensions of 420 x 420 x 480 mm, making it the ideal choice for larger creative projects. Additionally, it comes with Klipper, which allows for remarkable print speeds, reaching a maximum of 500mm/sec. It offers WiFi, WLAN and USB transfer options, providing flexibility in the way users connect and manage their printing. This makes it an outstanding choice for those looking for a balance between speed and quality in their 3D printing.

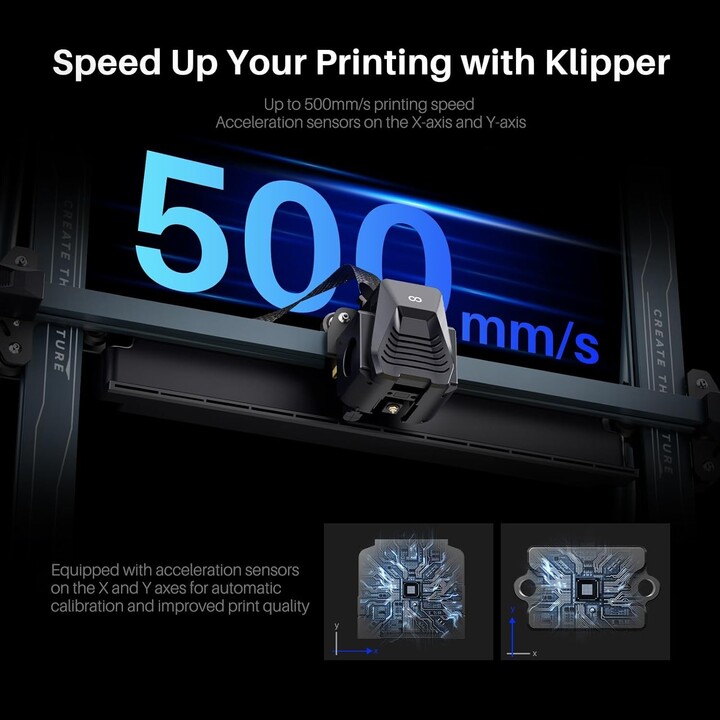

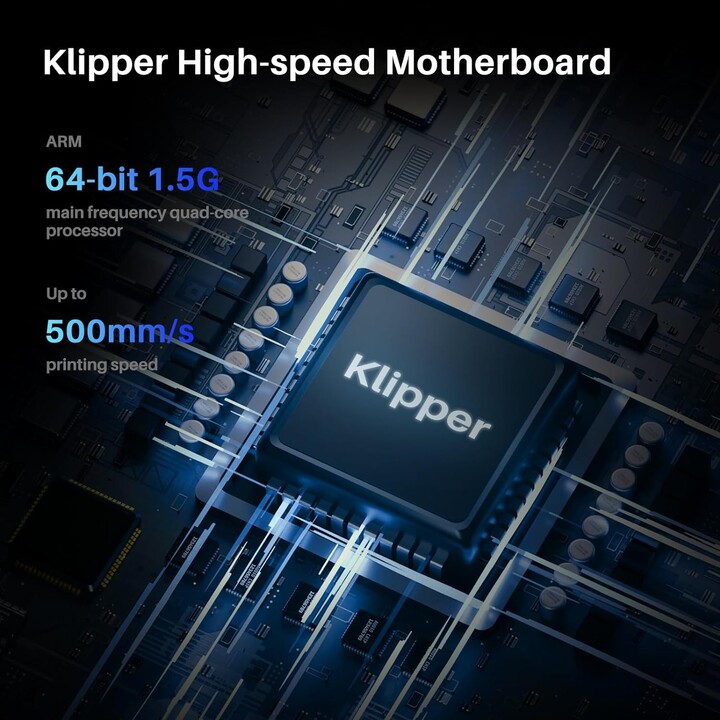

ARM Quad-Core Processor and pre-installed Klipper

The Elegoo Neptune 4 Max 3D printer comes with pre-installedKlipper firmware. Its Klipper motherboard is silent and has a 64-bit ARM quad-core processor with a main frequency of 1.5 GHz, which ensures sufficient processing power. These features allow it to print at an impressive speed of up to 500 mm/s (although a speed of 250 mm/s is recommended for optimal results).

Precise Models with Every Print

The Elegoo Neptune 4 Max 3D printer supports advanced features such as input shaping and pressure advance, which contribute to accurate models. With this powerful combination of hardware and firmware, the Neptune 4 Max is positioned as an ideal printer for those looking for high-speed, high-quality performance in their 3D printing projects.

Self-Leveling and Auxiliary Levelling

The Elegoo Neptune 4 Max features a combination of self-levelling and auxiliary levelling to optimise print quality. With a total of 121 automatic bed levelling points arranged in an 11x11 matrix, accurate and consistent levelling is achieved without the need for manual adjustments to the print bed.

Elegoo Neptune 4 Max - FDM 3D Printer Technical Specifications

• Model: Neptune 4 Max
• Printer monitor: Touch screen

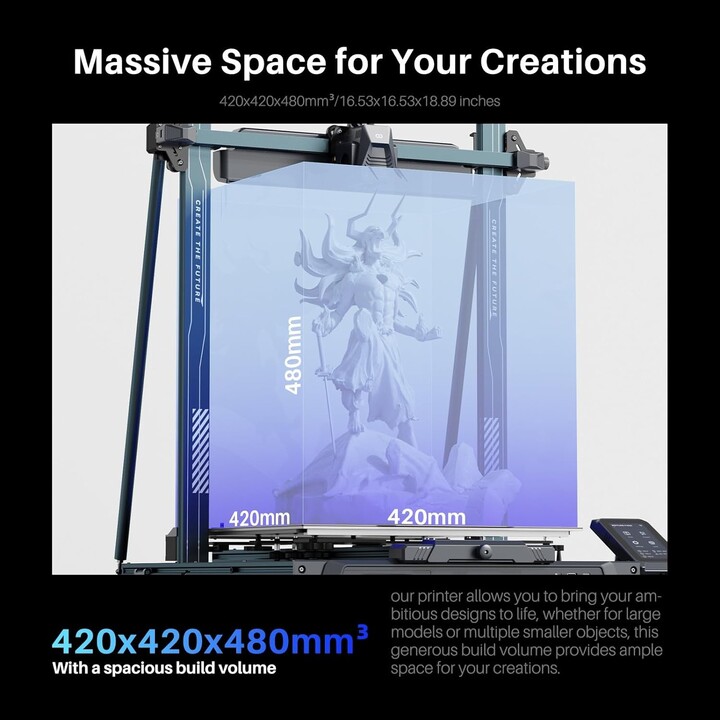

• Print volume: 420 x 420 x 480 mm
• Maximum print speed: 500 mm/s
• Automatic levelling: 11x11 (121) dots
• Nozzle: Up to 300°C
• Filament compatibility: PLA/PETG/ABS/TPU/Nylon
• Transfer via: WIFI/WLAN/USB
• Supported formats (Slicer): STL, OBJ
• Throat tube: Firmware

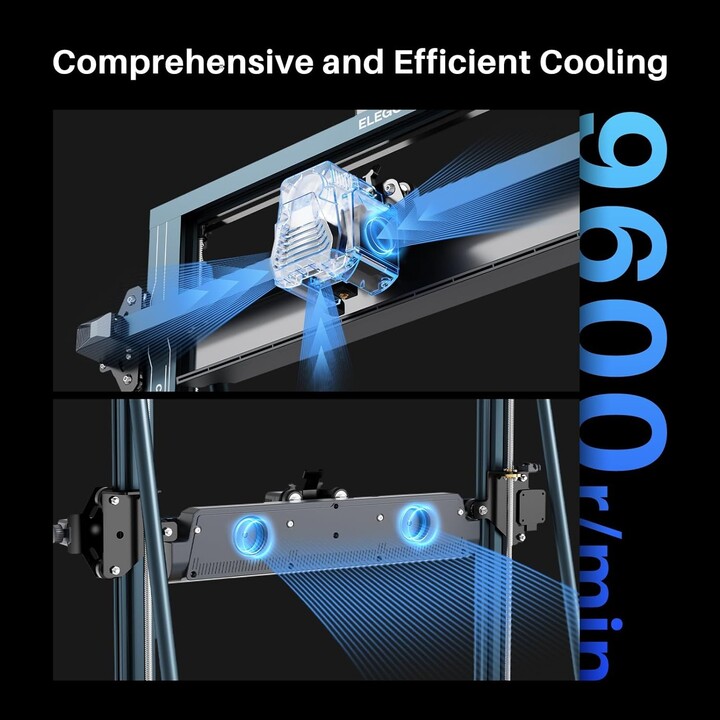

• Cooling fans: Ball bearing model

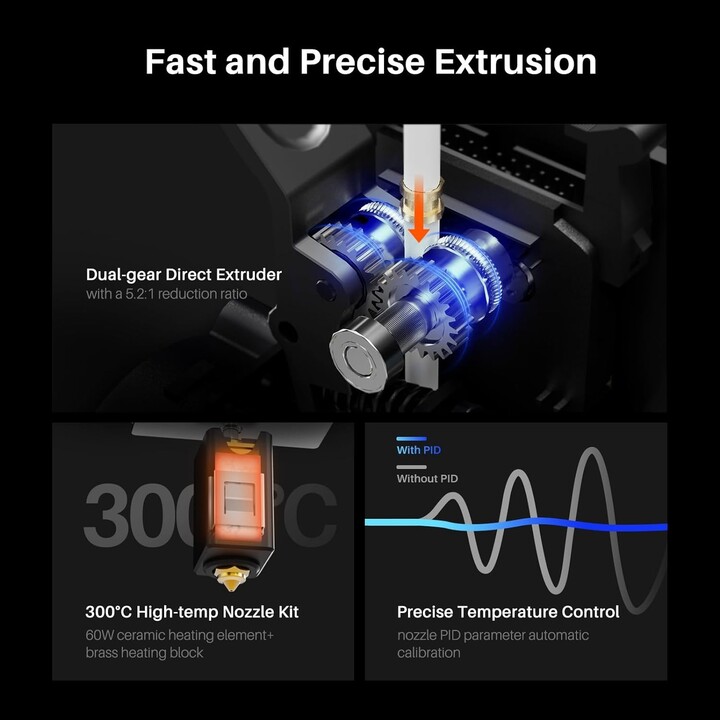

• Extrusion Type: Direct Dual Gear and Visual
• LED nozzle light: Yes
• Guide wheels: POM V
• Guide system: Two rows of 3-3 wheels
• PEI magnetic platform: Double
• Advanced functions: Input shaping and pressure advance

Box contents:

• 1 x Elegoo Neptune 4 Max - FDM 3D Printer
• 1 x User manual
