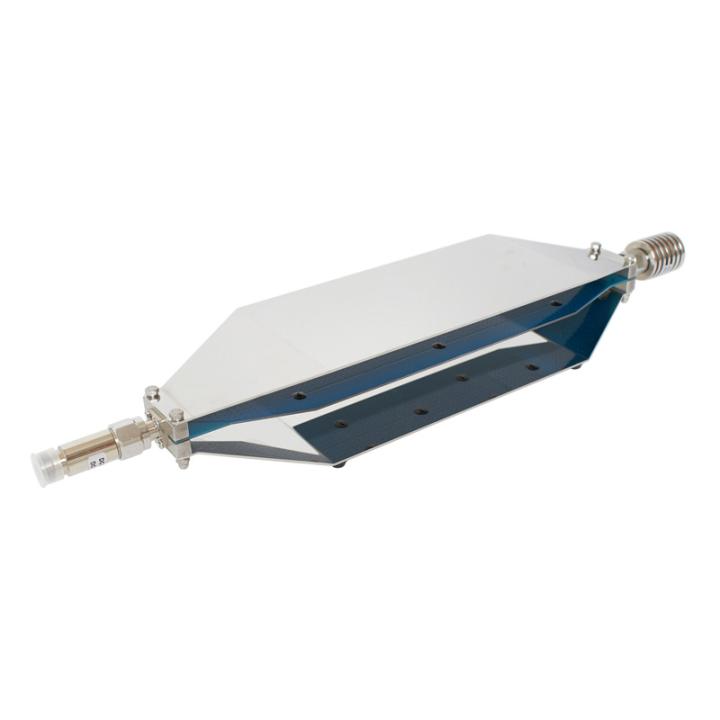

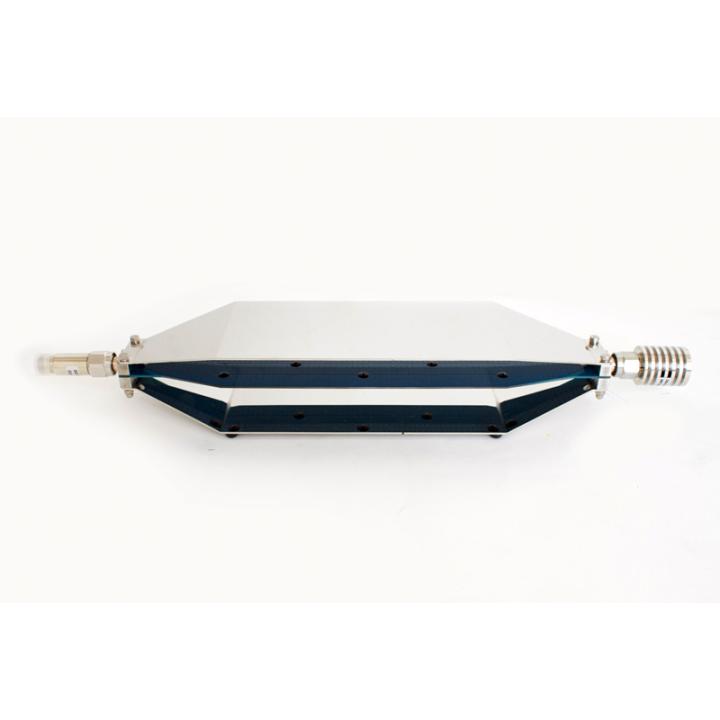

Tekbox TBTC0 / TEM mini cell

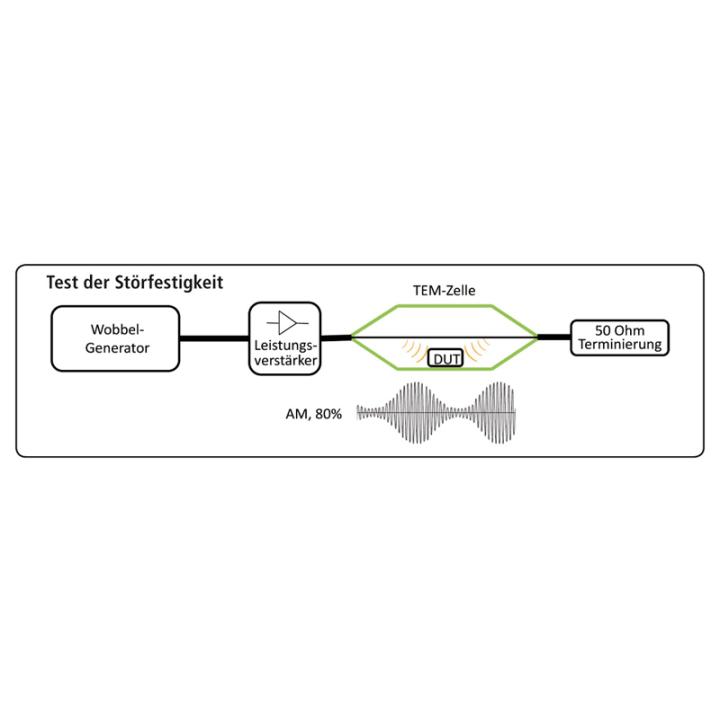

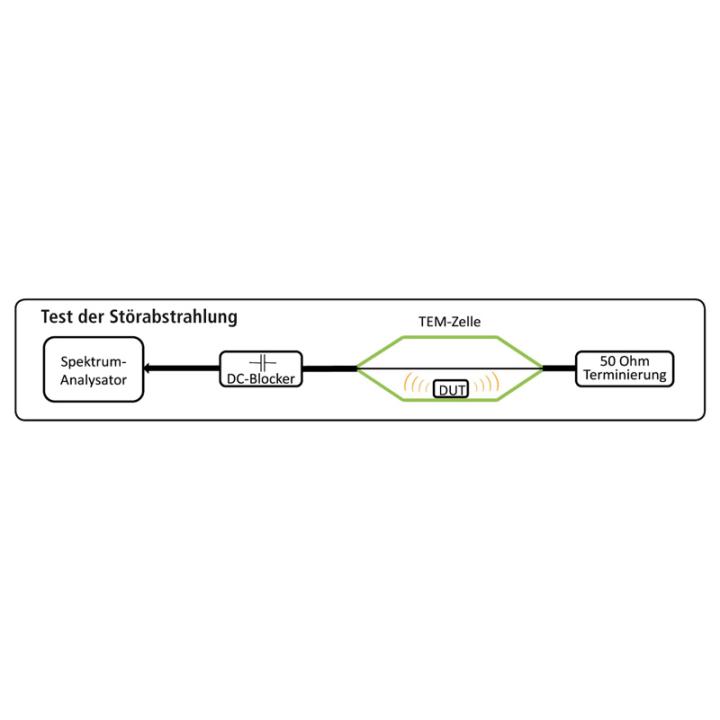

TEM cell "mini" for simple and cost-effective measurement of radiation and strength Why a TEM cell? A TEM cell (Transverse ElectroMagnetic Cell) is used to record test objects for measuring and testing the radiation or immunity of electronic devices. Usually, the radiation is measured in anechoic environments and the signals are picked up by antennas. Due to bandwidth limitations, different antennas are required to cover the entire frequency range. Furthermore, a lot of space is needed and the cost of the equipment for a standard compliant setup is enormous.Nötig is an affordable laboratory setup for measuring radiation in your own laboratory before acceptance in the EMC test house. The TEM cells from Tekbox in four different sizes now cover a very wide frequency range. The new TBTC0 mini-TEM cell can be used for frequencies up to 6 GHz. In combination with a spectrum analyzer, products can be tested before and after EMC-relevant modifications. The test setup with a TEM cell pr
