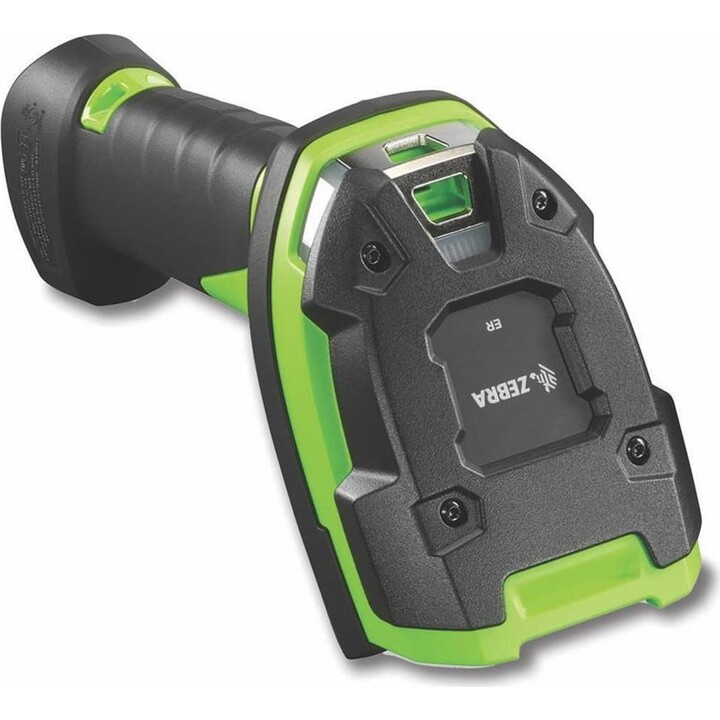

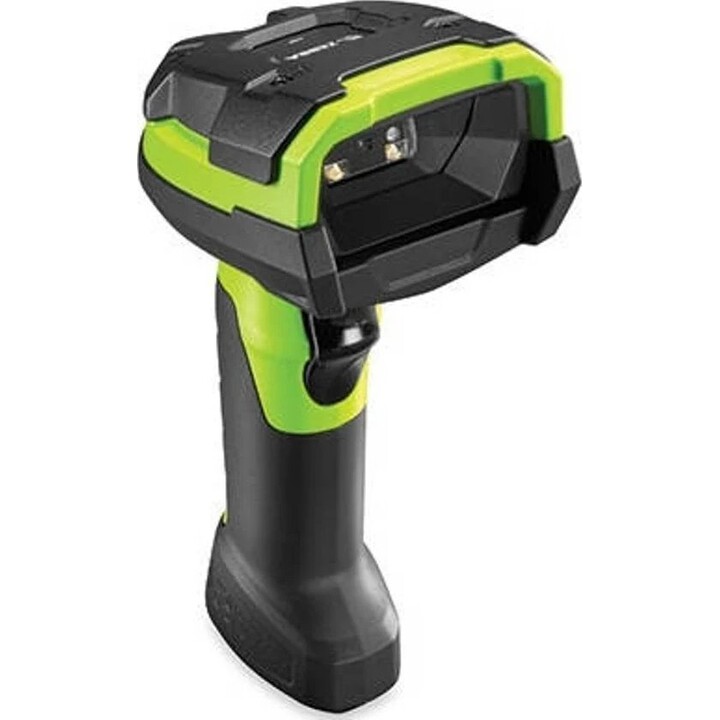

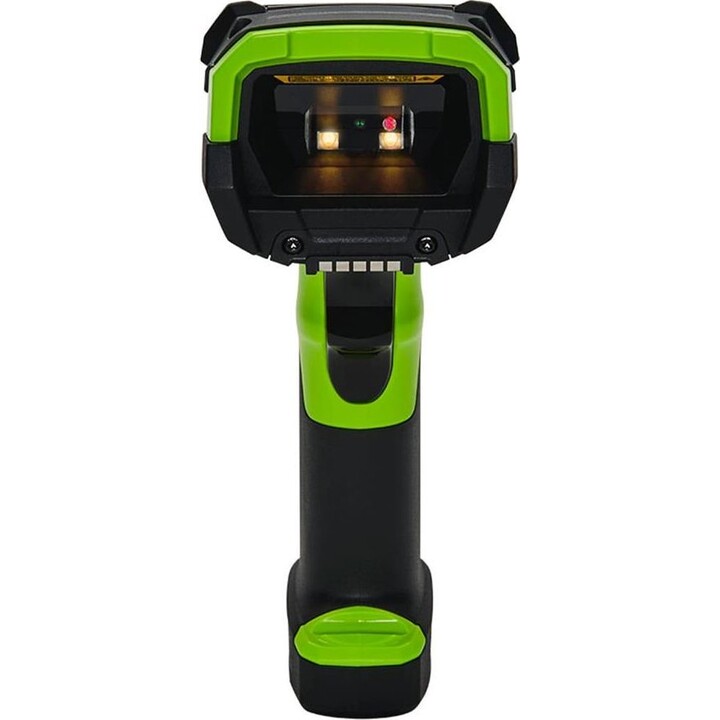

The Zebra DS3678-HP is a handheld barcode scanner built for warehouse and manufacturing environments where devices take a beating. It reads both 1D and 2D codes, works wirelessly or over a cable, and is sealed to IP67 against dust and water. If you need dependable scanning shift after shift without babysitting the hardware, this is the model to look at.
Highlights
- Reads 1D and 2D codes: handles linear formats such as Code 128, Code 39, Codabar and UPC alongside 2D codes including QR Code, Data Matrix, PDF417, Aztec Code and MaxiCode, so one device covers most labelling schemes on a site.
- Wireless freedom with a 100 m range: Bluetooth 4.0 with Bluetooth Low Energy support lets staff move around the floor without being tied to a cable, while RS-232, USB and keyboard-wedge interfaces cover wired setups.
- Built for harsh conditions: IP67 rating means protection against dust, water and impacts, which suits busy production and logistics areas.
- Long battery life: the 3100 mAh lithium-ion battery is rated for up to 100000 reads per charge, reducing downtime spent swapping or recharging batteries.
- Flexible reading angles: pitch and skew of -65° to 65° and yaw of -45° to 45° make it easier to catch codes that are not presented perfectly straight.
- Clear feedback: LED indicators confirm scan status at a glance, and the function programming option lets you adapt the scanner to your workflow.
- Works across a wide temperature range: operating from -20 °C to 50 °C and storing from -40 °C to 70 °C, it copes with cold stores and warm production areas alike.
Technical specifications
Scanning
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
Ports & interfaces
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | Yes |
Performance
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
Power
| Power source type | Battery |
| Number of reads per charge | 100000 |
Weight & dimensions
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
Technical details
| Compliance certificates | RoHS |
Manufacturer technical data.
Frequently asked questions
Can I use it both wirelessly and with a cable?
Yes. The DS3678-HP supports wireless and wired connectivity. It offers Bluetooth 4.0 with Bluetooth Low Energy, a wireless range of up to 100 m, and standard interfaces including RS-232, USB and keyboard wedge, plus Ethernet.
Which barcode types does it read?
It reads 1D codes such as Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey and UPC, as well as 2D codes including Aztec Code, composite codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code and TLC-39.
How long does the battery last between charges?
The scanner uses a 3100 mAh lithium-ion battery and is rated for up to 100000 reads per charge.
Is it suitable for dusty or wet environments?
It carries an IP67 rating with protection against dust, water and impacts, and operates in relative humidity from 5% to 95%. That makes it a practical choice for warehouse and manufacturing floor use.
