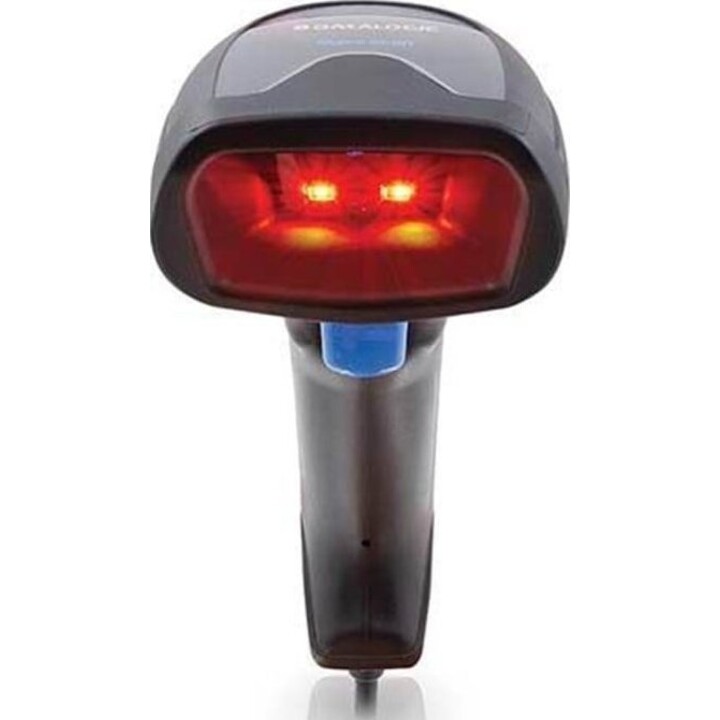

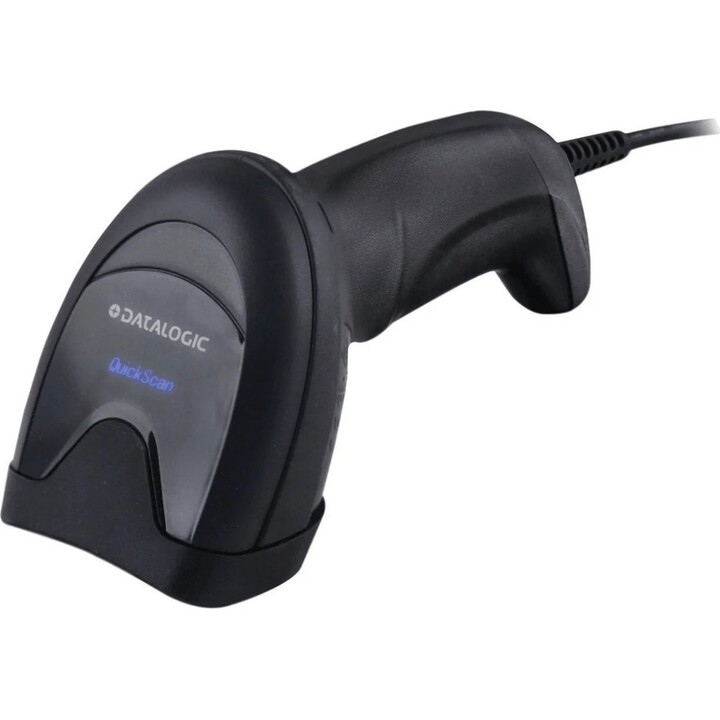

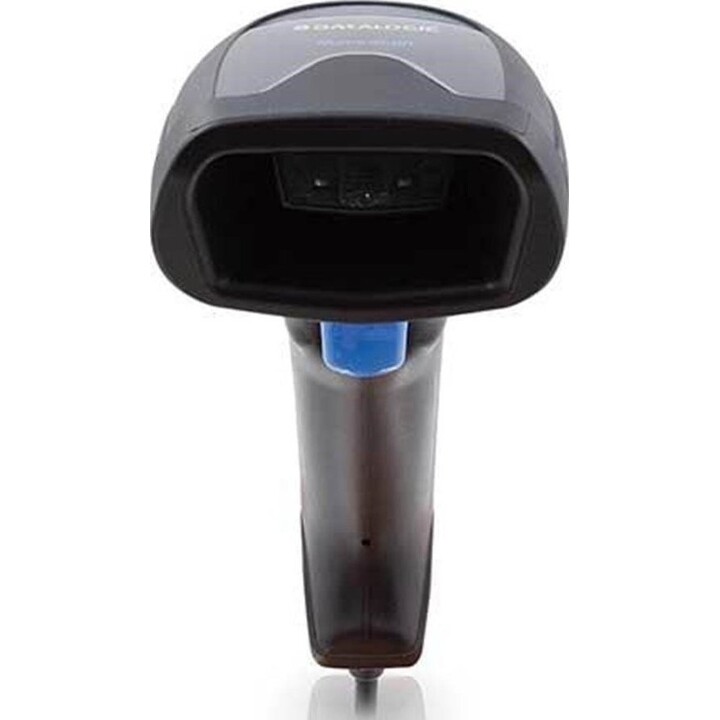

Datalogic QD2590-BKK1B Barcode Scanner
- Decodes 1D, 2D, and PDF417 barcodes
- USB interface with virtual COM or HID keyboard emulation
- Reads down to 5 mil resolution
- IP52 rating for dust and water resistance
- Drop tested to 1.5 m (5 ft)
Kit Contents and Connectivity Options
-
QD2590-BKK1B Kit Contents:
-
QD2590 QuickScan QD2590 Scanner black (2D Mpixel, wired).
-
Straight USB cable 90A052258.
-
Presentation stand STD-AUTO-QD25-BK with automatic scanning.
-
-
Multi-interface hardware: USB, RS-232, and Keyboard Wedge, selectable via cable and configuration, although the kit is factory-set for USB use.
Scanning, Aiming, and Feedback
-
1 Mp (1280 x 800) 2D imager for omnidirectional reading of: 1D, 2D, postcards, stacked, dot codes, and Digital Watermark (Digimarc).
-
LED aiming system with two high-precision blue triangles and a green dot projected on the code for each successful read, plus configurable beep and tactile feedback.
-
Brightness adjustment of the red illumination to reduce visual fatigue and adapt to the working environment.
