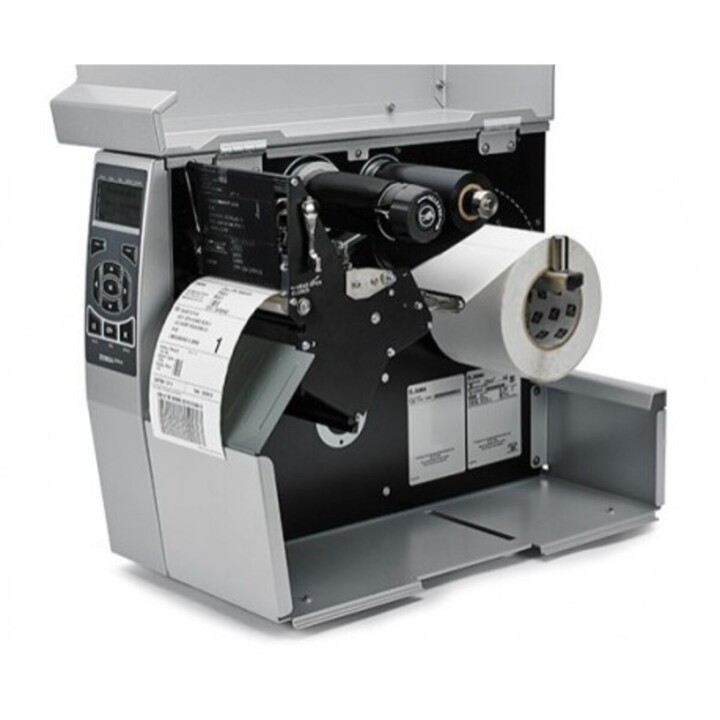

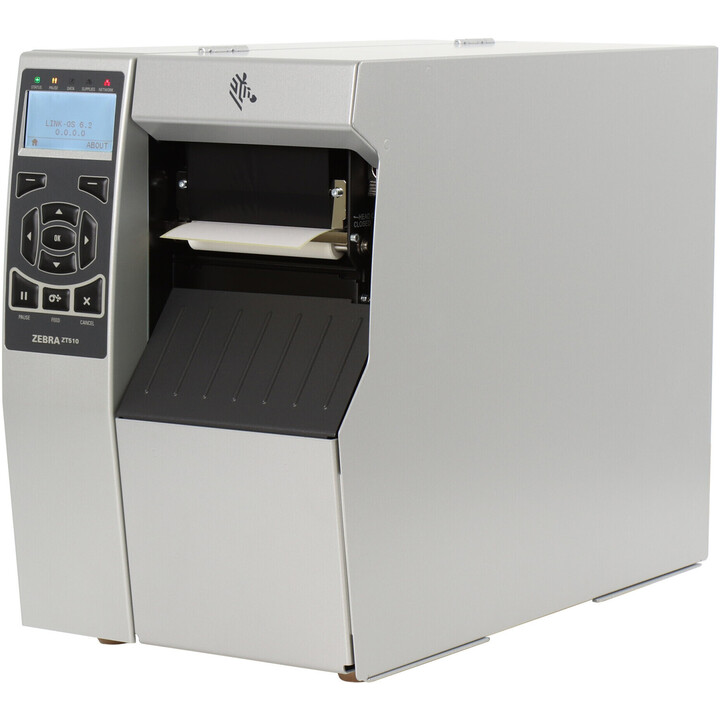

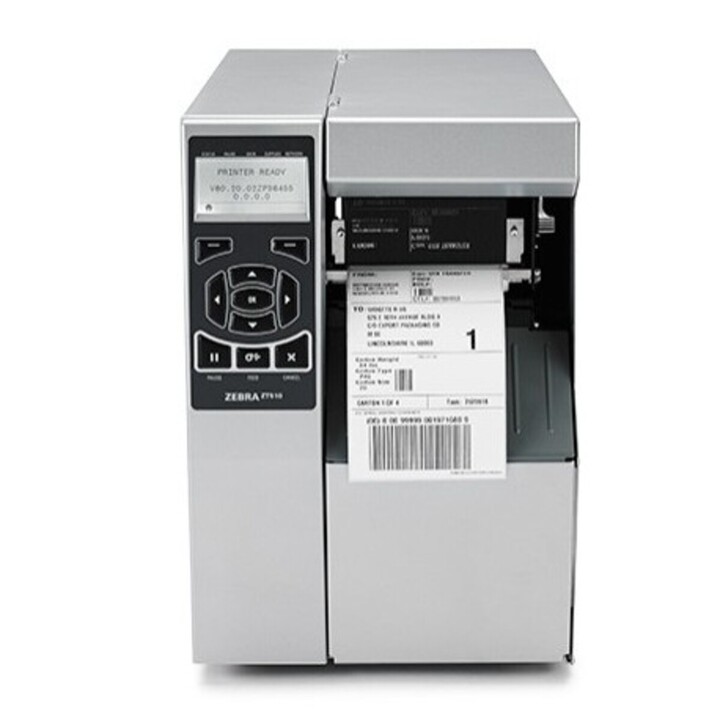

Zebra ZT510 TT Printer
- Thermal transfer label printer with 203 x 203 DPI maximum resolution
- Print speed up to 305 mm/s and maximum print width of 10.4 cm
- Connectivity: Ethernet, Bluetooth and USB (1 x USB 2.0 port)
- Built-in LCD display and integrated barcode support (Code 11, Code 128, Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A, UPC-E)
- Grey chassis, 22.7 kg, ENERGY STAR certified
Zebra ZT510 TT Printer
The Zebra ZT510 is a thermal transfer label printer designed for demanding labelling environments. It reaches a maximum resolution of 203 x 203 DPI and prints at speeds up to 305 mm/s, with a maximum print width of 10.4 cm. This combination makes it suitable for producing clear, legible labels at a productive pace.
Media handling is built around ribbons up to 11 cm wide and 450 m long, with a maximum roll diameter of 20.3 cm and a media thickness range of 0.076 to 0.305 mm. The unit is finished in grey and weighs 22.7 kg, with dimensions of 268.2 mm wide, 512.3 mm deep and 395.7 mm high.
Connectivity covers Ethernet, Bluetooth and USB, including one USB 2.0 port, so the printer can be integrated into wired networks and connected to nearby devices. An integrated LCD display supports on-device operation and status checks, and native barcode support covers Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A and UPC-E.
Características principales
- Thermal transfer printing technology
- Maximum resolution: 203 x 203 DPI
- Print speed: 305 mm/s
- Maximum print width: 10.4 cm
- Ribbon width: 11 cm; ribbon length: 450 m
- Ethernet, Bluetooth and USB connectivity (1 x USB 2.0)
- Built-in LCD display and integrated barcode generation
Specifications
| Printing technology | Thermal transfer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 305 mm/s |
| Maximum print width | 10.4 cm |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum roll diameter | 20.3 cm |
| Media thickness | 0.076 x 0.305 mm |
| Ethernet | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| USB port | Yes |
| USB 2.0 ports | 1 |
| Built-in barcodes | Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A, UPC-E |
| Product colour | Grey |
| Built-in display | Yes |
| Display | LCD |
| Operating relative humidity | 20 - 85% |
| Storage relative humidity | 20 - 85% |
| Operating temperature range | 5 - 40 °C |
| Storage temperature range | -30 - 60 °C |
| Width | 268.2 mm |
| Depth | 512.3 mm |
| Height | 395.7 mm |
| Weight | 22.7 kg |
| Harmonized System (HS) code | 84433210 |
| Sustainability certificates | ENERGY STAR |
Preguntas frecuentes
What printing technology does the Zebra ZT510 use?
It uses thermal transfer printing technology.
What is the maximum print resolution and speed?
The maximum resolution is 203 x 203 DPI and the print speed is 305 mm/s.
Which connectivity options are available?
The printer offers Ethernet, Bluetooth and USB, including one USB 2.0 port. Wi-Fi is not included.
Does it have a display?
Yes, it has a built-in LCD display.
Es para ti si...
- You need thermal transfer label printing at 203 x 203 DPI
- You require Ethernet, Bluetooth and USB connectivity in one device
- You work with ribbons up to 11 cm wide and 450 m long
- You want integrated barcode support and an LCD display for on-device operation
